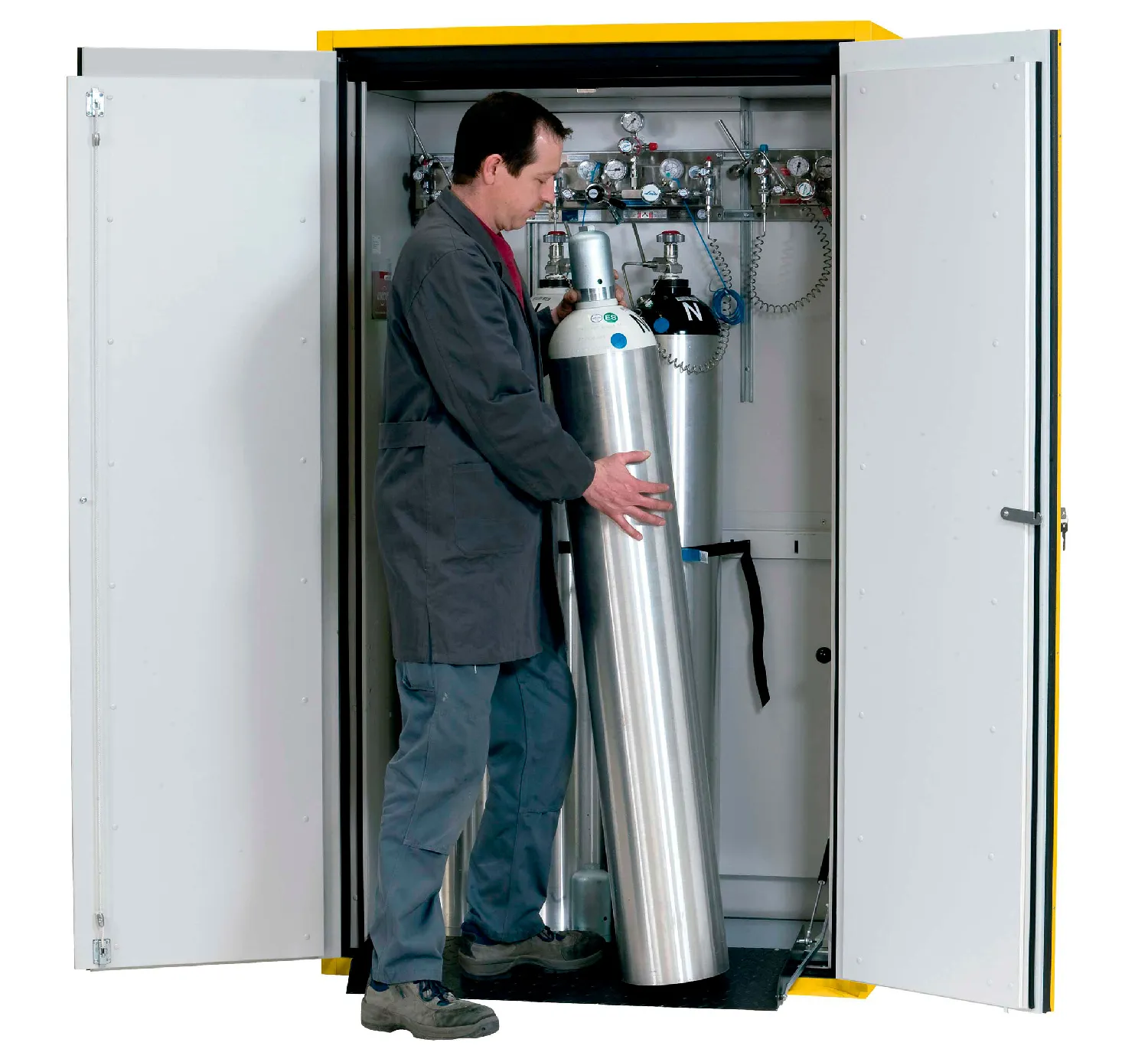

Cabinets for storage of gas bottles
Meets the requirements of the APQ-MIE-ITC-5 published in RD656 / 2017.
- No unauthorised use: doors lockable with profile cylinder (integration in an existing locking system possible)
- Easy alignment: adjusting aids to compensate for uneven floor
- Easy mounting of connecting pipes and gas fittings: large interior height (1890 mm), many lead-through possibilities on the top of the cabinet
- Ventilation: integrated air ducts ready for connection (DN 75) to a technical exhaust, even ventilation inside the cabinet
- Tested and certified: according to the stricter GS principles
It is required to ask for an equipment package together with the cabinet.
Safety cabinet with fire resistance according to UNE EN-14470-2 standard (Type G90 / 90 minutes fire resistance), TRG 280 (Germany), BGI 850-0 (Germany) and TRGS 526 (Germany) suitable for storage of compressed, liquefied and dissolved gases under pressure in workplaces.
Meets the requirements of the APQ-MIE-ITC-5 published in RD656 / 2017.
- No unauthorised use: doors lockable with profile cylinder (integration in an existing locking system possible)
- Easy alignment: adjusting aids to compensate for uneven floor
- Easy mounting of connecting pipes and gas fittings: large interior height (1890 mm), many lead-through possibilities on the top of the cabinet
- Ventilation: integrated air ducts ready for connection (DN 75) to a technical exhaust, even ventilation inside the cabinet
- Tested and certified: according to the stricter GS principles
It is required to ask for an equipment package together with the cabinet.
G90.205.120 Cabinet construction
Tall, 2 doors Body colour
Light grey Equipment
Body without interior equipment Maximum load (Kg)
600 Dimensions WxHxD (mm)
1198x2050x615 Weight (Kg)
610 Pack (u.)
1
G90.205.120 Cabinet construction
Tall, 2 doors Body colour
Warning yellow Equipment
Body without interior equipment Maximum load (Kg)
600 Dimensions WxHxD (mm)
1198x2050x615 Weight (Kg)
610 Pack (u.)
1
Equipment packages
1x standard interior equipment gas cylinders Material
Sheet steel galvanised and powder-coated For models
G90.205.120 Pack (u.)
1
1x comfort interior equipment gas cylinders Material
Sheet steel galvanised and powder-coated For models
G90.205.120 Pack (u.)
1
