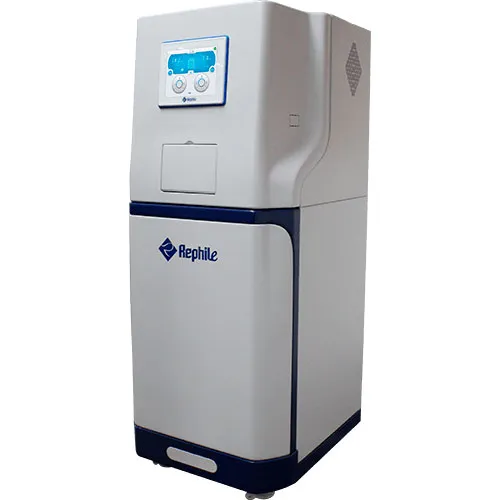

Super-Genie water systems
The water quality of the product meets or exceeds the standards defined by ASTM, CAP, CLSI, ISO 3696/BS 3997, European and US Pharmacopoeia.
Features:
- Dispensation of pure or ultrapure water from the dispensers
- Integrated control of purification, storage, distribution and other functions
- Pretreatment including prefiltration, chlorine removal and antifouling
- Optimized circuit of reject water recovery to maximize efficiency
- Built-in anti-leakage to close the flow of water in case of leakage
- Built-in tank of 100L, upgradeable according to storage needs
- Emergency bypass circuit for maximum operational reliability
- Display in multiple languages
Specifications:
- Feed Water Requirements: Tap water, TDS <1000 ppm (2000 µS/cm)
- Operating temperature: 5-45 ºC
- Input pressure: 30-90 psi (2-6 bar)
- Dimensions with tank AnxAlxPr (mm): 560x1380x880
- Dimensions without tank AnxAlxPr (mm): 560x1380x610
- Weight (kg): <140 for Super-Genie U and R; <160 for Super-Genie G and E
- Consumption / Amperage: <1000 W / <5 A for Super-Genie U and R; <1500 W / <7 A for Super-Genie G and E
- Voltage / Frequency: 220 VAC ± 10% / 50 Hz
*** Consult for other configurations.
The Super-Genie series is a smart combination of comprehensive understanding of various laboratory applications along with practical experience in the most advanced water purification technologies. The systems are specifically designed to produce large volumes of RO, pure water type II or ultrapure water. The Super-Genie purification system was created to serve as a central work station, generating purified water for a single laboratory installation or several laboratories, providing general control and monitoring within the entire water purification network, guaranteeing reliability from the beginning.
The water quality of the product meets or exceeds the standards defined by ASTM, CAP, CLSI, ISO 3696/BS 3997, European and US Pharmacopoeia.
Features:
- Dispensation of pure or ultrapure water from the dispensers
- Integrated control of purification, storage, distribution and other functions
- Pretreatment including prefiltration, chlorine removal and antifouling
- Optimized circuit of reject water recovery to maximize efficiency
- Built-in anti-leakage to close the flow of water in case of leakage
- Built-in tank of 100L, upgradeable according to storage needs
- Emergency bypass circuit for maximum operational reliability
- Display in multiple languages
Specifications:
- Feed Water Requirements: Tap water, TDS <1000 ppm (2000 µS/cm)
- Operating temperature: 5-45 ºC
- Input pressure: 30-90 psi (2-6 bar)
- Dimensions with tank AnxAlxPr (mm): 560x1380x880
- Dimensions without tank AnxAlxPr (mm): 560x1380x610
- Weight (kg): <140 for Super-Genie U and R; <160 for Super-Genie G and E
- Consumption / Amperage: <1000 W / <5 A for Super-Genie U and R; <1500 W / <7 A for Super-Genie G and E
- Voltage / Frequency: 220 VAC ± 10% / 50 Hz
*** Consult for other configurations.
Super-Genie G 30 Water System Water production
Type II &amp; Type I Water production rate (at 25ºC)
Type II: 30 L/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
&gt; 5 MO·cm (tipycally 10-15 MO·cm) Pure water TOC
&lt; 30 ppb Ultrapure water resistivity (at 25? )
18,2 MO·cm Ultrapure water TOC
&lt; 5 ppb Pack (u.)
1
Super-Genie G 60 Water System Water production
Type II &amp; Type I Water production rate (at 25ºC)
Type II: 60 L/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
&gt; 5 MO·cm (tipycally 10-15 MO·cm) Pure water TOC
&lt; 30 ppb Ultrapure water resistivity (at 25? )
18,2 MO·cm Ultrapure water TOC
&lt; 5 ppb Pack (u.)
1
Super-Genie G 125 Water System Water production
Type II &amp; Type I Water production rate (at 25ºC)
Type II: 125 L/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
&gt; 5 MO·cm (tipycally 10-15 MO·cm) Pure water TOC
&lt; 30 ppb Ultrapure water resistivity (at 25? )
18,2 MO·cm Ultrapure water TOC
&lt; 5 ppb Pack (u.)
1
Super-Genie G 250 Water System Water production
Type II &amp; Type I Water production rate (at 25ºC)
Type II: 250 L/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
&gt; 5 MO·cm (tipycally 10-15 MO·cm) Pure water TOC
&lt; 30 ppb Ultrapure water resistivity (at 25? )
18,2 MO·cm Ultrapure water TOC
&lt; 5 ppb Pack (u.)
1
Super-Genie U 50 Water System Water production
RO &amp; Type I Water production rate (at 25ºC)
RO water: 50 l/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
Tipycally &gt; 0,05 MO·cm (&lt; 20µS/cm) Pure water TOC
- Ultrapure water resistivity (at 25? )
18,2 MO·cm Ultrapure water TOC
&lt; 5 ppb Pack (u.)
1
Super-Genie U 150 Water System Water production
RO &amp; Type I Water production rate (at 25ºC)
RO water: 150 l/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
Tipycally &gt; 0,05 MO·cm (&lt; 20µS/cm) Pure water TOC
- Ultrapure water resistivity (at 25? )
18,2 MO·cm Ultrapure water TOC
&lt; 5 ppb Pack (u.)
1
Super-Genie U 300 Water System Water production
RO &amp; Type I Water production rate (at 25ºC)
RO water: 300 l/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
Tipycally &gt; 0,05 MO·cm (&lt; 20µS/cm) Pure water TOC
- Ultrapure water resistivity (at 25? )
18,2 MO·cm Ultrapure water TOC
&lt; 5 ppb Pack (u.)
1
Super-Genie E 30 Water System Water production
Type II Water production rate (at 25ºC)
Type II: 30 L/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
&gt; 5 MO·cm (tipycally 10-15 MO·cm) Pure water TOC
&lt; 30 ppb Ultrapure water resistivity (at 25? )
- Ultrapure water TOC
- Pack (u.)
1
Super-Genie E 60 Water System Water production
Type II Water production rate (at 25ºC)
Type II: 60 L/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
&gt; 5 MO·cm (tipycally 10-15 MO·cm) Pure water TOC
&lt; 30 ppb Ultrapure water resistivity (at 25? )
- Ultrapure water TOC
- Pack (u.)
1
Super-Genie E 125 Water System Water production
Type II Water production rate (at 25ºC)
Type II: 125 L/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
&gt; 5 MO·cm (tipycally 10-15 MO·cm) Pure water TOC
&lt; 30 ppb Ultrapure water resistivity (at 25? )
- Ultrapure water TOC
- Pack (u.)
1
Super-Genie E 250 Water System Water production
Type II Water production rate (at 25ºC)
Type II: 250 L/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
&gt; 5 MO·cm (tipycally 10-15 MO·cm) Pure water TOC
&lt; 30 ppb Ultrapure water resistivity (at 25? )
- Ultrapure water TOC
- Pack (u.)
1
Super-Genie R 50 Water System Water production
RO water Water production rate (at 25ºC)
RO water: 50 l/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
Tipycally &gt; 0,05 MO·cm (&lt; 20µS/cm) Pure water TOC
- Ultrapure water resistivity (at 25? )
- Ultrapure water TOC
- Pack (u.)
1
Super-Genie R 150 Water System Water production
RO water Water production rate (at 25ºC)
RO water: 150 l/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
Tipycally &gt; 0,05 MO·cm (&lt; 20µS/cm) Pure water TOC
- Ultrapure water resistivity (at 25? )
- Ultrapure water TOC
- Pack (u.)
1
Super-Genie R 300 Water System Water production
RO water Water production rate (at 25ºC)
RO water: 300 l/hr Dispensing rate (at 25?)
Up to 5 L/min Pure water resistivity (at 25? )
Tipycally &gt; 0,05 MO·cm (&lt; 20µS/cm) Pure water TOC
- Ultrapure water resistivity (at 25? )
- Ultrapure water TOC
- Pack (u.)
1
