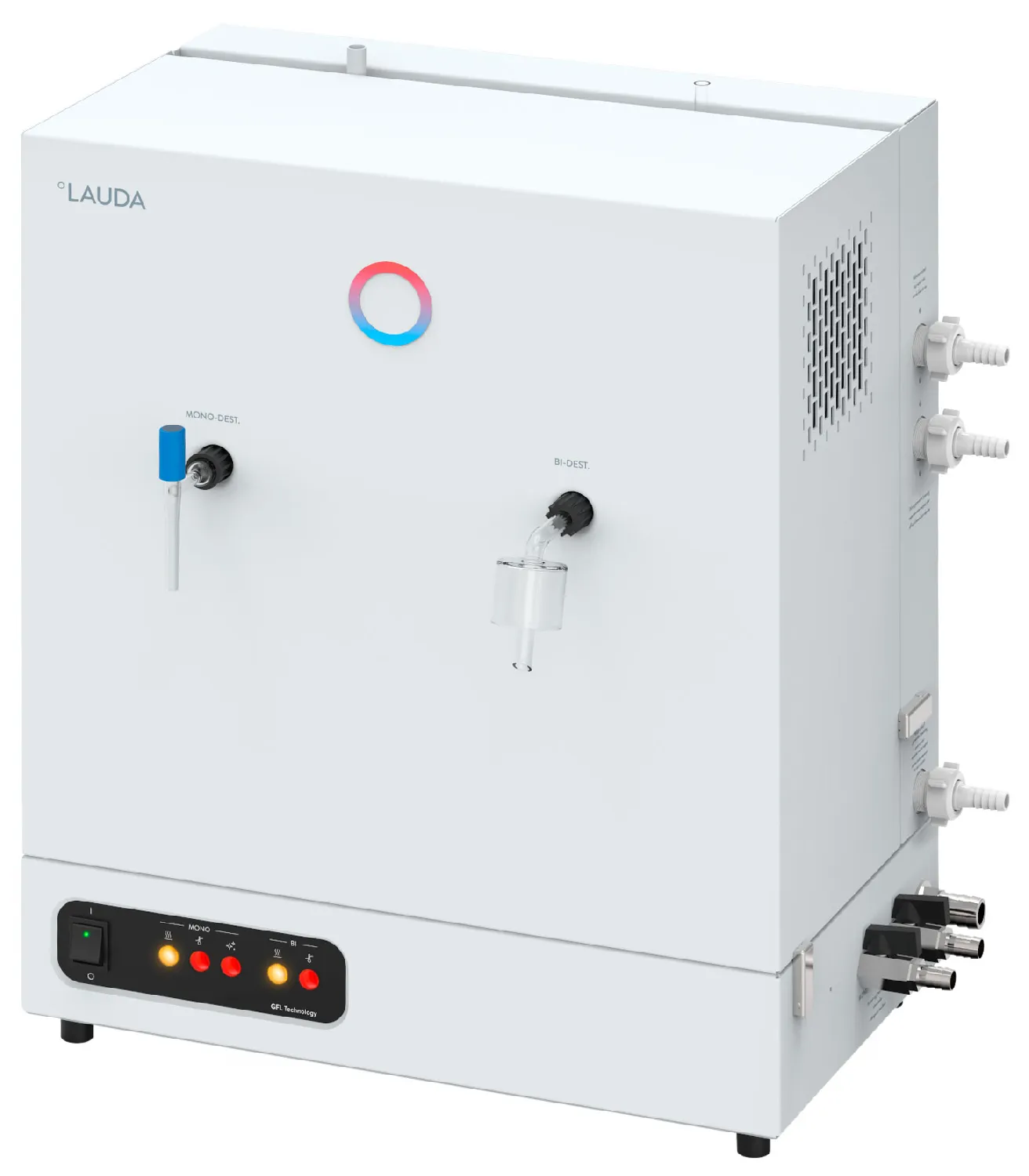

Puridest water stills for distillation
Puridest water stills for distillation is among the most reliable and robust laboratory water treatment systems in the world. Provide ultra-pure, low-gas, sterile and pyrogen-free distillate for the dilution of reagents, sets of samples and more. Puridests purify any raw water to produce a distillate with conductivities down to below 1.6 µS/cm. It complies with DAB regulations and the international pharmacopeia requirements. Optionally with 1 or 2 distillation stages, they achieve excellent conductance values. Glass stills provide water that is virtually free of metal ions.
Maintenance can be done without specialized personnel. It is limited to cleaning separated contaminants from the evaporator chamber. Glass stills do this automatically.
They only require electricity and water, without the need for cartridges, adsorbents or to regenerate ion exchangers.
After connecting the water and power supply, pure water is produced at the touch of a button.
Maintenance can be done without specialized personnel. It is limited to cleaning separated contaminants from the evaporator chamber. Glass stills do this automatically.
They only require electricity and water, without the need for cartridges, adsorbents or to regenerate ion exchangers.
After connecting the water and power supply, pure water is produced at the touch of a button.
Puridest water stills for distillation is among the most reliable and robust laboratory water treatment systems in the world. Provide ultra-pure, low-gas, sterile and pyrogen-free distillate for the dilution of reagents, sets of samples and more. Puridests purify any raw water to produce a distillate with conductivities down to below 1.6 µS/cm. It complies with DAB regulations and the international pharmacopeia requirements. Optionally with 1 or 2 distillation stages, they achieve excellent conductance values. Glass stills provide water that is virtually free of metal ions.
Maintenance can be done without specialized personnel. It is limited to cleaning separated contaminants from the evaporator chamber. Glass stills do this automatically.
They only require electricity and water, without the need for cartridges, adsorbents or to regenerate ion exchangers.
After connecting the water and power supply, pure water is produced at the touch of a button.
Model
PD 4 Distillate type
Mono Condenser material
Stainless steel Production (l/h)
4 Conductivity stages 1/2 (µS/cm)
2.3/- Volume (l)
- Cold water consumption (l/h)
0.67 Dimensions WxHxD (mm)
280x490x250 Weight (kg)
7.5 Consumption (kW)
3 Pack (u.)
1
PD 4 Distillate type
Mono Condenser material
Stainless steel Production (l/h)
4 Conductivity stages 1/2 (µS/cm)
2.3/- Volume (l)
- Cold water consumption (l/h)
0.67 Dimensions WxHxD (mm)
280x490x250 Weight (kg)
7.5 Consumption (kW)
3 Pack (u.)
1
Model
PD 4 R Distillate type
Mono Condenser material
Stainless steel Production (l/h)
4 Conductivity stages 1/2 (µS/cm)
2.3/- Volume (l)
8 Cold water consumption (l/h)
0.8 Dimensions WxHxD (mm)
620x460x330 Weight (kg)
21.4 Consumption (kW)
3 Pack (u.)
1
PD 4 R Distillate type
Mono Condenser material
Stainless steel Production (l/h)
4 Conductivity stages 1/2 (µS/cm)
2.3/- Volume (l)
8 Cold water consumption (l/h)
0.8 Dimensions WxHxD (mm)
620x460x330 Weight (kg)
21.4 Consumption (kW)
3 Pack (u.)
1
Model
PD 4 G Distillate type
Mono Condenser material
Glass Production (l/h)
4 Conductivity stages 1/2 (µS/cm)
2.2/- Volume (l)
- Cold water consumption (l/h)
1.2 Dimensions WxHxD (mm)
650x390x200 Weight (kg)
17 Consumption (kW)
3 Pack (u.)
1
PD 4 G Distillate type
Mono Condenser material
Glass Production (l/h)
4 Conductivity stages 1/2 (µS/cm)
2.2/- Volume (l)
- Cold water consumption (l/h)
1.2 Dimensions WxHxD (mm)
650x390x200 Weight (kg)
17 Consumption (kW)
3 Pack (u.)
1
Accessories
Description
Chlorine filter. Complete with connections for 12.7 mm internal diameter pressure hose. Initial fill included (must be replaced every 6 months LAUA000130) For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Chlorine filter. Complete with connections for 12.7 mm internal diameter pressure hose. Initial fill included (must be replaced every 6 months LAUA000130) For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Description
Spare filling for Chlorine filter (LAUA000139) For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Spare filling for Chlorine filter (LAUA000139) For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Description
Phosphate cartridge, prevents formation of calcareous deposits. Complete with connections for 12.7 mm internal diameter pressure hose. Initial filling included. For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Phosphate cartridge, prevents formation of calcareous deposits. Complete with connections for 12.7 mm internal diameter pressure hose. Initial filling included. For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Description
Spare filling for Phosphate cartridge (LAUA000131) For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Spare filling for Phosphate cartridge (LAUA000131) For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Description
Pre-filter 1 um for previous cleaning of the water. Suitable for food use. Complete with connections for 12.7 mm internal diameter pressure hose. Initial filling and filter element included (The filter element must be replaced every 6 months LAUA000134). For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Pre-filter 1 um for previous cleaning of the water. Suitable for food use. Complete with connections for 12.7 mm internal diameter pressure hose. Initial filling and filter element included (The filter element must be replaced every 6 months LAUA000134). For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Description
Spare filter element for pre-filter (LAUA000133) For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Spare filter element for pre-filter (LAUA000133) For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Description
Pre-assembled wall bracket with 3 filters (phosphate cartridge, chlorine filter and pre-filter). Initial fill and filter element included. Connected with two connecting sleeves and fixed to the wall bracket with screws For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Pre-assembled wall bracket with 3 filters (phosphate cartridge, chlorine filter and pre-filter). Initial fill and filter element included. Connected with two connecting sleeves and fixed to the wall bracket with screws For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Description
Wall bracket for mounting any filter. With screws to fix the filter to the wall bracket. The filter is not included. For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Wall bracket for mounting any filter. With screws to fix the filter to the wall bracket. The filter is not included. For models
PD 2, PD 4, PD 2 R, PD 4 R, PD 2 G, PD 4 G, PD 2 D, PD 2 DG Pack (u.)
1
Description
Pipe set consisting of 1.5 m water inlet/outlet hoses and flanges For models
PD 2, PD 4 Pack (u.)
1
Pipe set consisting of 1.5 m water inlet/outlet hoses and flanges For models
PD 2, PD 4 Pack (u.)
1
Description
Pipe set consisting of 1.5 m water inlet/outlet hoses and flanges For models
PD 2 R, PD 4 R, PD 2 D, PD 2 DG Pack (u.)
1
Pipe set consisting of 1.5 m water inlet/outlet hoses and flanges For models
PD 2 R, PD 4 R, PD 2 D, PD 2 DG Pack (u.)
1
Description
Pipe set consisting of 1.5 m water inlet/outlet hoses and flanges For models
PD 4 R with separate water supply Pack (u.)
1
Pipe set consisting of 1.5 m water inlet/outlet hoses and flanges For models
PD 4 R with separate water supply Pack (u.)
1
Description
Pipe set consisting of 1.5 m water inlet/outlet hoses and flanges For models
PD 2 D with separate water supply Pack (u.)
1
Pipe set consisting of 1.5 m water inlet/outlet hoses and flanges For models
PD 2 D with separate water supply Pack (u.)
1
Description
Pipe set consisting of 1.5/1.0 m water inlet/outlet hoses, 0.5 m distillate outlet and flanges For models
PD 2 G, PD 4 G Pack (u.)
1
Pipe set consisting of 1.5/1.0 m water inlet/outlet hoses, 0.5 m distillate outlet and flanges For models
PD 2 G, PD 4 G Pack (u.)
1
Description
Pipe set consisting of 1.5/1.0 m water inlet/outlet hoses, 0.5 m distillate outlet and flanges For models
PD 2 G, PD 4 G with separate water supply Pack (u.)
1
Pipe set consisting of 1.5/1.0 m water inlet/outlet hoses, 0.5 m distillate outlet and flanges For models
PD 2 G, PD 4 G with separate water supply Pack (u.)
1
Description
Pipe set consisting of 1.5/1.0 m water inlet/outlet hoses, 0.5 m distillate outlet and flanges For models
PD 2 DG Pack (u.)
1
Pipe set consisting of 1.5/1.0 m water inlet/outlet hoses, 0.5 m distillate outlet and flanges For models
PD 2 DG Pack (u.)
1
Description
Pipe set consisting of 1.5/1.0 m water inlet/outlet hoses, 0.5 m distillate outlet and flanges For models
PD 2 DG Pack (u.)
1
Pipe set consisting of 1.5/1.0 m water inlet/outlet hoses, 0.5 m distillate outlet and flanges For models
PD 2 DG Pack (u.)
1
