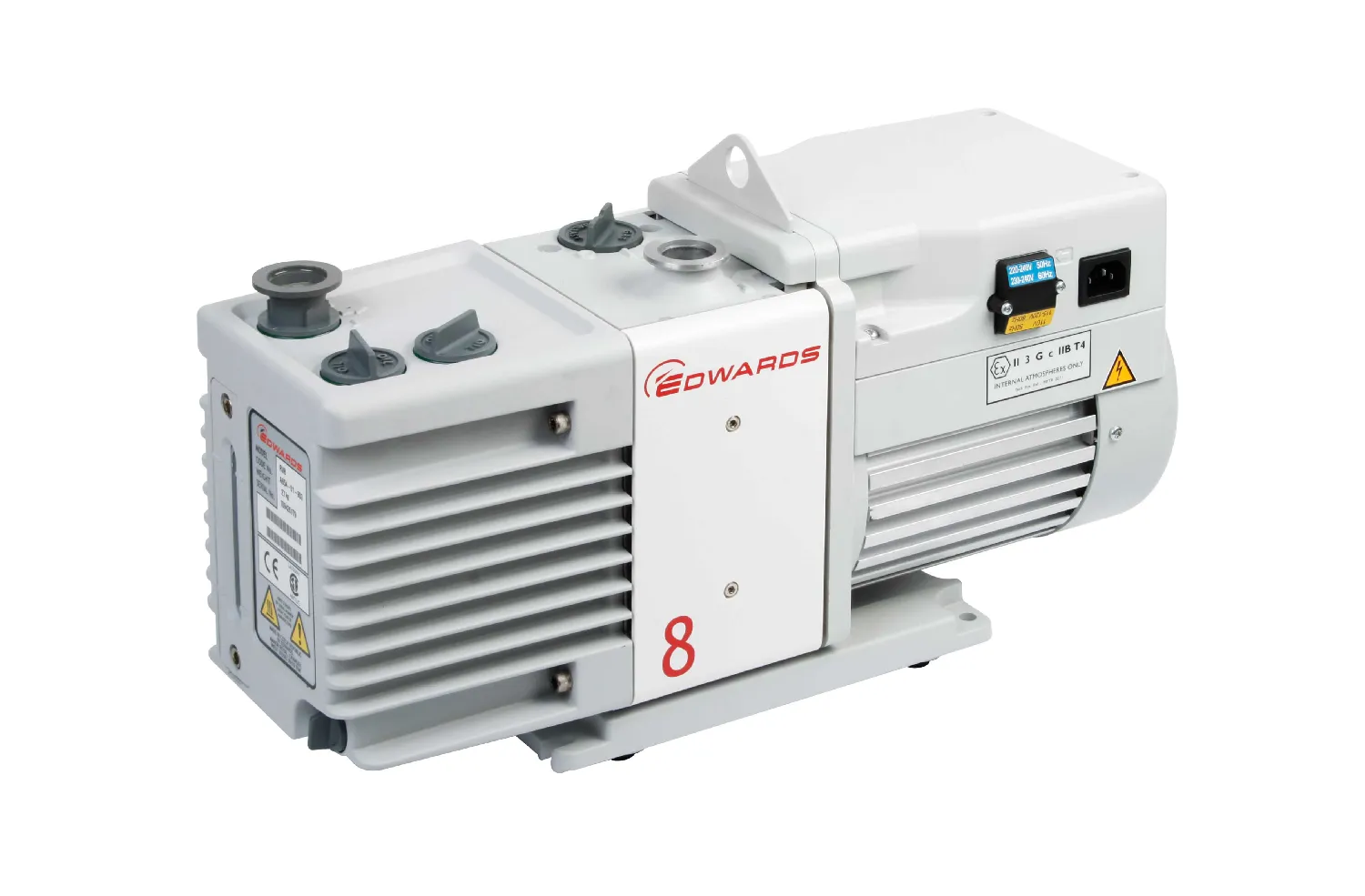

RV oil sealed rotary vane pumps
- 2 stage pumps
- Quick-action automatic inlet valve for the best protection against suction
- Portable, retractable handle on RV3 and RV5 models
- Very low noise level: 48 dB
- Ballast gas valve with 2 ballast speeds
- Easy maintenance
- Connection input/output: NW25
- Require flange, connection nipple and gasket
- The optional smoke and odor filter recovers the oil at the pump outlet by condensation
Applications:
- Schlenk lines
- Freeze drying
- Vacuum concentrators
- Vacuum ovens
- Glove box
- Mass spectrophotometers
- Quick-action automatic inlet valve for the best protection against suction
- Portable, retractable handle on RV3 and RV5 models
- Very low noise level: 48 dB
- Ballast gas valve with 2 ballast speeds
- Easy maintenance
- Connection input/output: NW25
- Require flange, connection nipple and gasket
- The optional smoke and odor filter recovers the oil at the pump outlet by condensation
Applications:
- Schlenk lines
- Freeze drying
- Vacuum concentrators
- Vacuum ovens
- Glove box
- Mass spectrophotometers
- 2 stage pumps
- Quick-action automatic inlet valve for the best protection against suction
- Portable, retractable handle on RV3 and RV5 models
- Very low noise level: 48 dB
- Ballast gas valve with 2 ballast speeds
- Easy maintenance
- Connection input/output: NW25
- Require flange, connection nipple and gasket
- The optional smoke and odor filter recovers the oil at the pump outlet by condensation
Applications:
- Schlenk lines
- Freeze drying
- Vacuum concentrators
- Vacuum ovens
- Glove box
- Mass spectrophotometers
Model
RV3 Flow rate (l/min)/(m3/h)
55/3,3 Final vacuum (mbar abs.)
2x10-3 Oil capacity (ml)
700 Sound level (dB)
48 Dimensions WxHxD (mm)
158x225x430 Weight (Kg)
25 Pack (u.)
1
RV3 Flow rate (l/min)/(m3/h)
55/3,3 Final vacuum (mbar abs.)
2x10-3 Oil capacity (ml)
700 Sound level (dB)
48 Dimensions WxHxD (mm)
158x225x430 Weight (Kg)
25 Pack (u.)
1
Model
RV5 Flow rate (l/min)/(m3/h)
85/5,1 Final vacuum (mbar abs.)
2x10-3 Oil capacity (ml)
700 Sound level (dB)
48 Dimensions WxHxD (mm)
158x225x430 Weight (Kg)
25 Pack (u.)
1
RV5 Flow rate (l/min)/(m3/h)
85/5,1 Final vacuum (mbar abs.)
2x10-3 Oil capacity (ml)
700 Sound level (dB)
48 Dimensions WxHxD (mm)
158x225x430 Weight (Kg)
25 Pack (u.)
1
Model
RV8 Flow rate (l/min)/(m3/h)
141/8,5 Final vacuum (mbar abs.)
2x10-3 Oil capacity (ml)
750 Sound level (dB)
48 Dimensions WxHxD (mm)
158x225x470 Weight (Kg)
28 Pack (u.)
1
RV8 Flow rate (l/min)/(m3/h)
141/8,5 Final vacuum (mbar abs.)
2x10-3 Oil capacity (ml)
750 Sound level (dB)
48 Dimensions WxHxD (mm)
158x225x470 Weight (Kg)
28 Pack (u.)
1
Model
RV12 Flow rate (l/min)/(m3/h)
200/12 Final vacuum (mbar abs.)
2x10-3 Oil capacity (ml)
1000 Sound level (dB)
48 Dimensions WxHxD (mm)
158x225x490 Weight (Kg)
29 Pack (u.)
1
RV12 Flow rate (l/min)/(m3/h)
200/12 Final vacuum (mbar abs.)
2x10-3 Oil capacity (ml)
1000 Sound level (dB)
48 Dimensions WxHxD (mm)
158x225x490 Weight (Kg)
29 Pack (u.)
1
Accessories
Description
Stainless steel clamp flange, connection NW25 Pack (u.)
1
Stainless steel clamp flange, connection NW25 Pack (u.)
1
Description
Aluminum suction connection (nozzle), connection NW25 Pack (u.)
1
Aluminum suction connection (nozzle), connection NW25 Pack (u.)
1
Description
Viton seal with stainless steel centering ring, connection NW25 Pack (u.)
1
Viton seal with stainless steel centering ring, connection NW25 Pack (u.)
1
Description
Oil mist filter EMF10, connection NW25 Pack (u.)
1
Oil mist filter EMF10, connection NW25 Pack (u.)
1
Description
Foreline oil trap FL20K, connection NW25 Pack (u.)
1
Foreline oil trap FL20K, connection NW25 Pack (u.)
1
Description
Ultragrade 19 oil, bottle of 1L Pack (u.)
1
Ultragrade 19 oil, bottle of 1L Pack (u.)
1
Description
Ultragrade 19 oil, bottle of 4L Pack (u.)
1
Ultragrade 19 oil, bottle of 4L Pack (u.)
1
