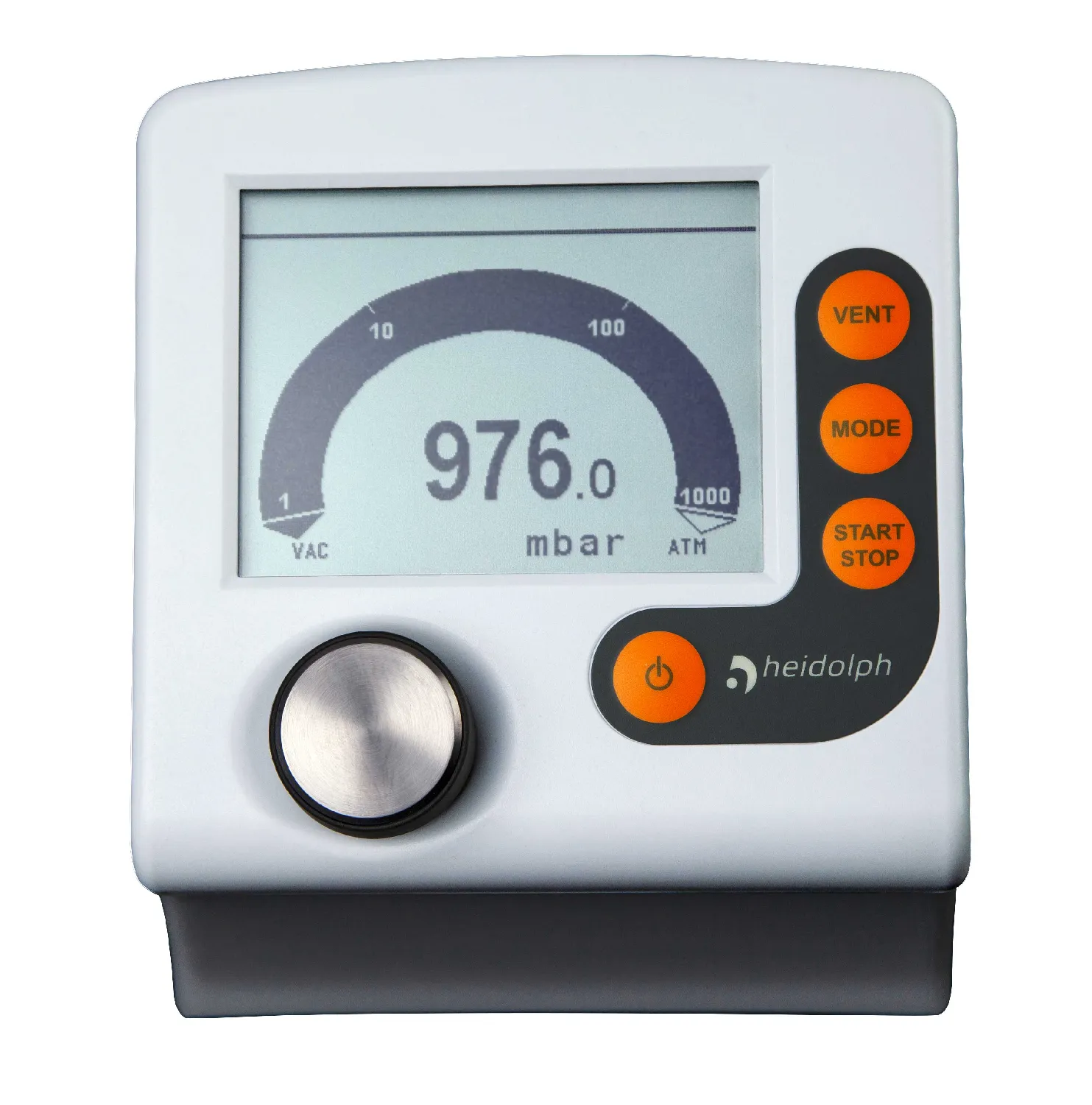

Hei-VAC Control
- Affordable option for digital vacuum control
- Easy fixation on the condenser shaft above the evaporator or as stand alone device with base next to the unit
- Manual Vent button to prevent bumping
- Graphs in order to display the entire vacuum process
- RS232 interface
- Multilingual menu navigation
- Easy installation and operation
- Works with all Hei-VAP Evaporators which do not have an integrated vacuum control
- Proteccion class: IP20
- Dimensions WxHxD (mm): 144x115x124
- Weight (kg): 0,44
- Cable length of external supply (m): 2
- Measurement principle: ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure
Vacuum controller complete with integrated ceramic vacuum sensor, regulation valve and venting valve. With wall-plug power supply, ready for use, with manual.
For accurate vacuum control of house vacuum systems or valve regulated vacuum pumps.
- Affordable option for digital vacuum control
- Easy fixation on the condenser shaft above the evaporator or as stand alone device with base next to the unit
- Manual Vent button to prevent bumping
- Graphs in order to display the entire vacuum process
- RS232 interface
- Multilingual menu navigation
- Easy installation and operation
- Works with all Hei-VAP Evaporators which do not have an integrated vacuum control
- Proteccion class: IP20
- Dimensions WxHxD (mm): 144x115x124
- Weight (kg): 0,44
- Cable length of external supply (m): 2
- Measurement principle: ceramic diaphragm (alumina), capacitive, gas indep., absolute pressure
Vacuum controller complete with integrated ceramic vacuum sensor, regulation valve and venting valve. With wall-plug power supply, ready for use, with manual.
10-40 Measurement range (mbar)
0.1-1080 Accuracy (mbar)
±1 Pack (u.)
1
