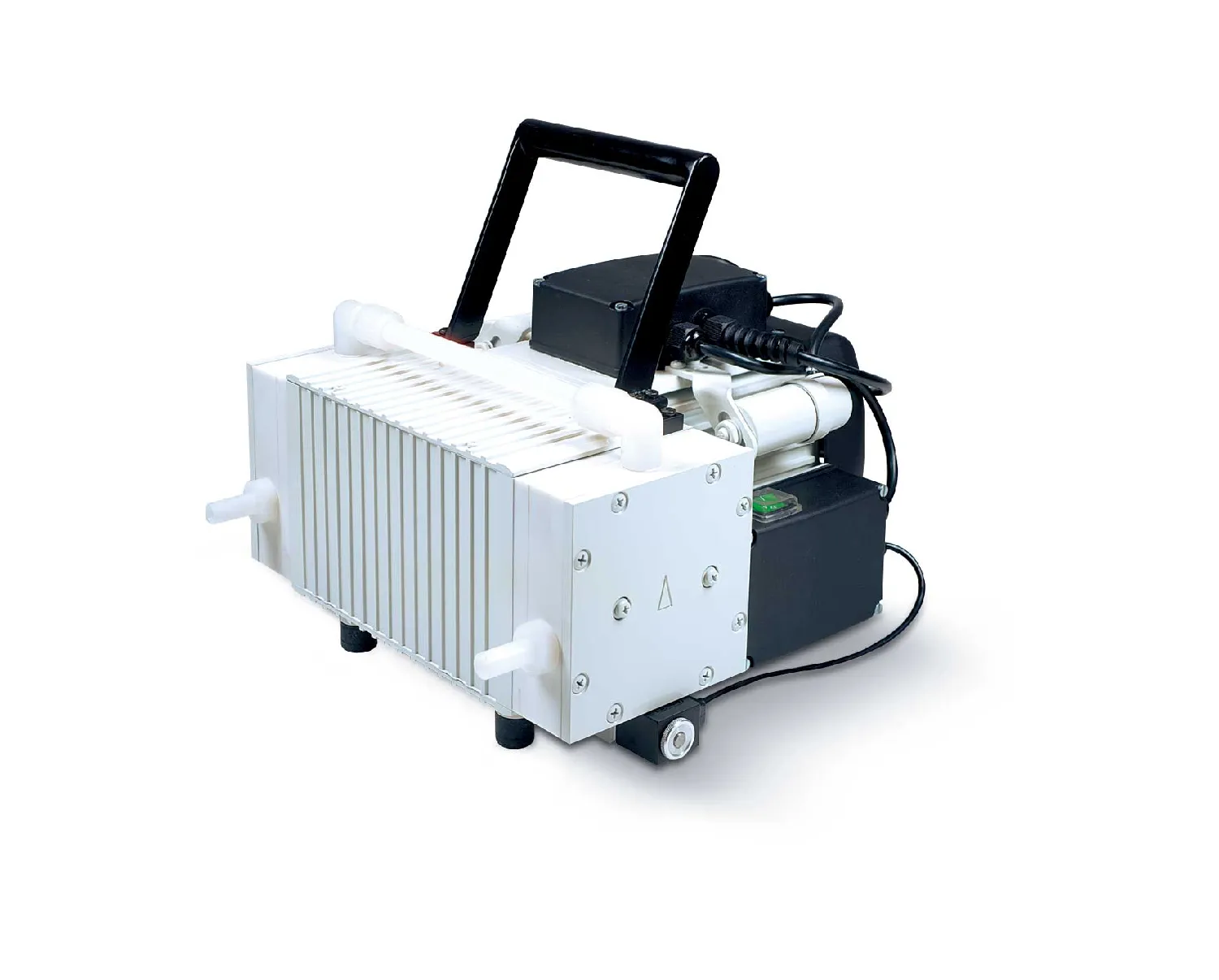

Diaphragm vacuum pumps N 860.3 FT.40.18
- Application: rotary evaporation, distillation, vacuum oven, centrifugal concentrator.
- Flow rate up to 3,6m³/h and a final vacuum of 4mbar abs.
- Integrated self-draining KNF system for fast evacuation of condensate from the pump heads without altering the vacuum. This greatly reduces the process time and preserves the pump heads.
- Resistant to chemicals and therefore suitable for use with aggressive/corrosive vapors and gases.
Technical characteristics:
Ambient temperature and permissible liquid temperature: +5 to +40°C.
Pump head: PTFE.
Membrane with PTFE coating.
Valves: FFPM.
- Flow rate up to 3,6m³/h and a final vacuum of 4mbar abs.
- Integrated self-draining KNF system for fast evacuation of condensate from the pump heads without altering the vacuum. This greatly reduces the process time and preserves the pump heads.
- Resistant to chemicals and therefore suitable for use with aggressive/corrosive vapors and gases.
Technical characteristics:
Ambient temperature and permissible liquid temperature: +5 to +40°C.
Pump head: PTFE.
Membrane with PTFE coating.
Valves: FFPM.
- Application: rotary evaporation, distillation, vacuum oven, centrifugal concentrator.
- Flow rate up to 3,6m³/h and a final vacuum of 4mbar abs.
- Integrated self-draining KNF system for fast evacuation of condensate from the pump heads without altering the vacuum. This greatly reduces the process time and preserves the pump heads.
- Resistant to chemicals and therefore suitable for use with aggressive/corrosive vapors and gases.
Technical characteristics:
Ambient temperature and permissible liquid temperature: +5 to +40°C.
Pump head: PTFE.
Membrane with PTFE coating.
Valves: FFPM.
Model
N860.3FT.40.18 Application
Rotary evaporation, distillation, vacuum oven, centrifugal concentrator Suction (m3/h) / (l/min)
3.6 / 60 Final vacuum (mbar abs.)
4 Pressure (bar)
1 Dimensions WxHxD (mm)
291x2785x331 Weight (Kg)
14.8 Hose connector (mm)
12 Pack (u.)
1
N860.3FT.40.18 Application
Rotary evaporation, distillation, vacuum oven, centrifugal concentrator Suction (m3/h) / (l/min)
3.6 / 60 Final vacuum (mbar abs.)
4 Pressure (bar)
1 Dimensions WxHxD (mm)
291x2785x331 Weight (Kg)
14.8 Hose connector (mm)
12 Pack (u.)
1
