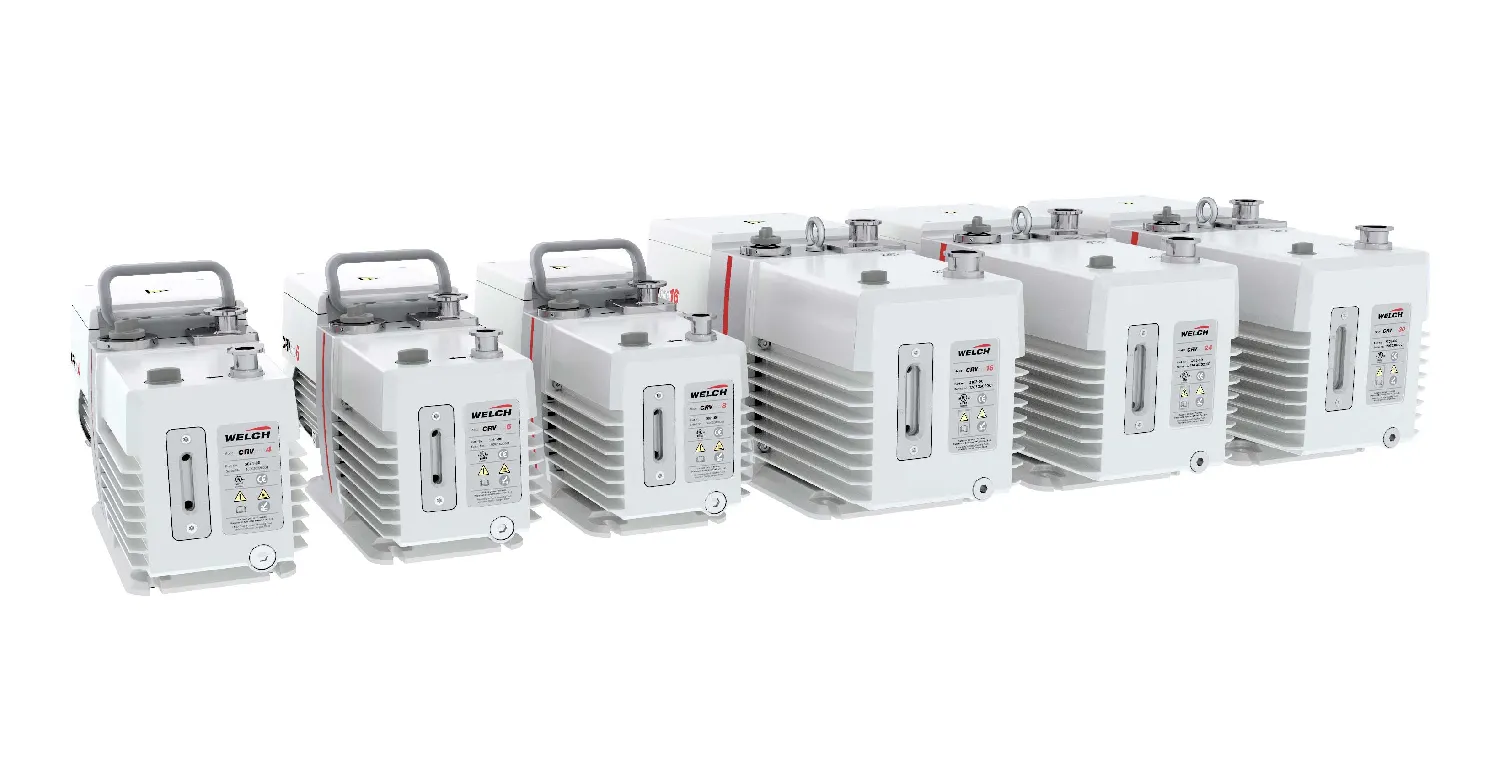

CRVpro rotary vane vacuum pumps
The CRVpro series two-stage rotary vane vacuum pumps are characterized by high reliability, low maintenance requirements and long equipment life. CRVpro pumps are the perfect complement for freeze dryers, Schlenk lines, vacuum concentrators, gloveboxes and other applications where a final vacuum of up to 10-3 mbar is required.
Features:
- Reduced risk of chemical attacks and oil breakdown by diluting chemical vapors with a larger oil chamber
- Slowing down corrosion by cool running operation
- Less oil consumption by cool running operation
- Exhaust system to reduce noise and oil mist
- Gerotor oil pump for better lubrication of the pump
- Anti-suction valve
- Power supplied: 220-240V/50Hz
Welch Directorr™ Premium vacuum pump oil is a triple distillation hydrocarbon from a severely hydrotreated base and designed to withstand decomposition at high RPM and operating temperatures of direct drive vacuum pumps. Hydrotreating virtually eliminates aromatics and sulfur to provide good resistance to sediment formation over time in corrosive environments.
Features:
- Low vapor pressure
- Suitable for high-RPM direct-drive vacuum pumps
- No additives or inhibitors
- Light yellow color
Every pump is supplied complete with Directorr™ Premium vacuum pump oil, centering rings, clamps and motor overload protection, ready for use after oil filling.
Basic package includes: CRVpro pump, AKD 16 oil mist separator, 2-way ball valve, hose connector DN 16KF-10/8 mm, vacuum hose (1,5m) and oil change kit.
Measurement package includes: CRVpro pump, PIZA 111 cr-gold digital vacuum gauge, AKD 16 oil mist separator, 2-way ball valve, T-piece, hose connector DN16KF-10/8 mm, vacuum hose (2.5m) and kit for oil change.
Schlenk line package includes: CRVpro pump, AKD 16 oil mist separator, 2-way ball valve, KFG16 glass cold trap, adapters and connecting parts.
Features:
- Reduced risk of chemical attacks and oil breakdown by diluting chemical vapors with a larger oil chamber
- Slowing down corrosion by cool running operation
- Less oil consumption by cool running operation
- Exhaust system to reduce noise and oil mist
- Gerotor oil pump for better lubrication of the pump
- Anti-suction valve
- Power supplied: 220-240V/50Hz
Welch Directorr™ Premium vacuum pump oil is a triple distillation hydrocarbon from a severely hydrotreated base and designed to withstand decomposition at high RPM and operating temperatures of direct drive vacuum pumps. Hydrotreating virtually eliminates aromatics and sulfur to provide good resistance to sediment formation over time in corrosive environments.
Features:
- Low vapor pressure
- Suitable for high-RPM direct-drive vacuum pumps
- No additives or inhibitors
- Light yellow color
Every pump is supplied complete with Directorr™ Premium vacuum pump oil, centering rings, clamps and motor overload protection, ready for use after oil filling.
Basic package includes: CRVpro pump, AKD 16 oil mist separator, 2-way ball valve, hose connector DN 16KF-10/8 mm, vacuum hose (1,5m) and oil change kit.
Measurement package includes: CRVpro pump, PIZA 111 cr-gold digital vacuum gauge, AKD 16 oil mist separator, 2-way ball valve, T-piece, hose connector DN16KF-10/8 mm, vacuum hose (2.5m) and kit for oil change.
Schlenk line package includes: CRVpro pump, AKD 16 oil mist separator, 2-way ball valve, KFG16 glass cold trap, adapters and connecting parts.
The CRVpro series two-stage rotary vane vacuum pumps are characterized by high reliability, low maintenance requirements and long equipment life. CRVpro pumps are the perfect complement for freeze dryers, Schlenk lines, vacuum concentrators, gloveboxes and other applications where a final vacuum of up to 10-3 mbar is required.
Features:
- Reduced risk of chemical attacks and oil breakdown by diluting chemical vapors with a larger oil chamber
- Slowing down corrosion by cool running operation
- Less oil consumption by cool running operation
- Exhaust system to reduce noise and oil mist
- Gerotor oil pump for better lubrication of the pump
- Anti-suction valve
- Power supplied: 220-240V/50Hz
Welch Directorr™ Premium vacuum pump oil is a triple distillation hydrocarbon from a severely hydrotreated base and designed to withstand decomposition at high RPM and operating temperatures of direct drive vacuum pumps. Hydrotreating virtually eliminates aromatics and sulfur to provide good resistance to sediment formation over time in corrosive environments.
Features:
- Low vapor pressure
- Suitable for high-RPM direct-drive vacuum pumps
- No additives or inhibitors
- Light yellow color
Every pump is supplied complete with Directorr™ Premium vacuum pump oil, centering rings, clamps and motor overload protection, ready for use after oil filling.
Basic package includes: CRVpro pump, AKD 16 oil mist separator, 2-way ball valve, hose connector DN 16KF-10/8 mm, vacuum hose (1,5m) and oil change kit.
Measurement package includes: CRVpro pump, PIZA 111 cr-gold digital vacuum gauge, AKD 16 oil mist separator, 2-way ball valve, T-piece, hose connector DN16KF-10/8 mm, vacuum hose (2.5m) and kit for oil change.
Schlenk line package includes: CRVpro pump, AKD 16 oil mist separator, 2-way ball valve, KFG16 glass cold trap, adapters and connecting parts.
* Dimesions without handle
Model
CRVpro 2 Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
38/2.3 Final vacuum (mbar abs.)
3x10-3 DN connexion
16KF Oil capacity (ml)
450 Sound level (dB)
<= 50 Dimensions WxDxH (mm)
380x235x138* Weight (Kg)
15 Pack (u.)
1
CRVpro 2 Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
38/2.3 Final vacuum (mbar abs.)
3x10-3 DN connexion
16KF Oil capacity (ml)
450 Sound level (dB)
<= 50 Dimensions WxDxH (mm)
380x235x138* Weight (Kg)
15 Pack (u.)
1
Model
CRVpro 2 basic package Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
38/2.3 Final vacuum (mbar abs.)
3x10-3 DN connexion
16KF Oil capacity (ml)
450 Sound level (dB)
<= 50 Dimensions WxDxH (mm)
380x235x138* Weight (Kg)
15 Pack (u.)
CRVpro 2 basic package Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
38/2.3 Final vacuum (mbar abs.)
3x10-3 DN connexion
16KF Oil capacity (ml)
450 Sound level (dB)
<= 50 Dimensions WxDxH (mm)
380x235x138* Weight (Kg)
15 Pack (u.)
Model
CRVpro 2 measurement package Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
38/2.3 Final vacuum (mbar abs.)
3x10-3 DN connexion
16KF Oil capacity (ml)
450 Sound level (dB)
<= 50 Dimensions WxDxH (mm)
380x235x138* Weight (Kg)
15 Pack (u.)
CRVpro 2 measurement package Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
38/2.3 Final vacuum (mbar abs.)
3x10-3 DN connexion
16KF Oil capacity (ml)
450 Sound level (dB)
<= 50 Dimensions WxDxH (mm)
380x235x138* Weight (Kg)
15 Pack (u.)
Model
CRVpro 4 Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
63/3.8 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
21 Pack (u.)
1
CRVpro 4 Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
63/3.8 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
21 Pack (u.)
1
Model
CRVpro 4 basic package Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
63/3.8 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
21 Pack (u.)
1
CRVpro 4 basic package Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
63/3.8 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
21 Pack (u.)
1
Model
CRVpro 4 measurement package Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
63/3.8 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
21 Pack (u.)
1
CRVpro 4 measurement package Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
63/3.8 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
21 Pack (u.)
1
Model
CRVpro 4 Schlenk line package Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
63/3.8 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KFG Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
21 Pack (u.)
CRVpro 4 Schlenk line package Application
Schlenk line, freeze dryer Flow rate (l/min)/(m3/h)
63/3.8 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KFG Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
21 Pack (u.)
Model
CRVpro 6 Application
Schlenk line, freeze dryer, vacuum concentrator Flow rate (l/min)/(m3/h)
85/5.1 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
22 Pack (u.)
1
CRVpro 6 Application
Schlenk line, freeze dryer, vacuum concentrator Flow rate (l/min)/(m3/h)
85/5.1 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
22 Pack (u.)
1
Model
CRVpro 6 basic package Application
Schlenk line, freeze dryer, vacuum concentrator Flow rate (l/min)/(m3/h)
85/5.1 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
22 Pack (u.)
1
CRVpro 6 basic package Application
Schlenk line, freeze dryer, vacuum concentrator Flow rate (l/min)/(m3/h)
85/5.1 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
22 Pack (u.)
1
Model
CRVpro 6 measurement package Application
Schlenk line, freeze dryer, vacuum concentrator Flow rate (l/min)/(m3/h)
85/5.1 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
22 Pack (u.)
1
CRVpro 6 measurement package Application
Schlenk line, freeze dryer, vacuum concentrator Flow rate (l/min)/(m3/h)
85/5.1 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
22 Pack (u.)
1
Model
CRVpro 6 Schlenk line package Application
Schlenk line, freeze dryer, vacuum concentrator Flow rate (l/min)/(m3/h)
85/5.1 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KFG Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
22 Pack (u.)
CRVpro 6 Schlenk line package Application
Schlenk line, freeze dryer, vacuum concentrator Flow rate (l/min)/(m3/h)
85/5.1 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KFG Oil capacity (ml)
1150 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
22 Pack (u.)
Model
CRVpro 8 Application
Freeze dryers, vacuum ovens, glove box Flow rate (l/min)/(m3/h)
122/7.3 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1000 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
22,5 Pack (u.)
1
CRVpro 8 Application
Freeze dryers, vacuum ovens, glove box Flow rate (l/min)/(m3/h)
122/7.3 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1000 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
22,5 Pack (u.)
1
Model
CRVpro 8 basic package Application
Freeze dryers, vacuum ovens, glove box Flow rate (l/min)/(m3/h)
122/7.3 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1000 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
22,5 Pack (u.)
1
CRVpro 8 basic package Application
Freeze dryers, vacuum ovens, glove box Flow rate (l/min)/(m3/h)
122/7.3 Final vacuum (mbar abs.)
2x10-3 DN connexion
16KF Oil capacity (ml)
1000 Sound level (dB)
50 Dimensions WxDxH (mm)
157x230x463* Weight (Kg)
22,5 Pack (u.)
1
Model
CRVpro 16 Application
Glove box, mass spectrometer Flow rate (l/min)/(m3/h)
280/16.8 Final vacuum (mbar abs.)
3x10-3 DN connexion
25KF Oil capacity (ml)
2400 Sound level (dB)
55 Dimensions WxDxH (mm)
206x289x569 Weight (Kg)
37 Pack (u.)
1
CRVpro 16 Application
Glove box, mass spectrometer Flow rate (l/min)/(m3/h)
280/16.8 Final vacuum (mbar abs.)
3x10-3 DN connexion
25KF Oil capacity (ml)
2400 Sound level (dB)
55 Dimensions WxDxH (mm)
206x289x569 Weight (Kg)
37 Pack (u.)
1
Model
CRVpro 24 Application
Glove box, mass spectrometer Flow rate (l/min)/(m3/h)
400/24 Final vacuum (mbar abs.)
3x10-3 DN connexion
25KF Oil capacity (ml)
2200 Sound level (dB)
55 Dimensions WxDxH (mm)
206x289x569 Weight (Kg)
38,5 Pack (u.)
1
CRVpro 24 Application
Glove box, mass spectrometer Flow rate (l/min)/(m3/h)
400/24 Final vacuum (mbar abs.)
3x10-3 DN connexion
25KF Oil capacity (ml)
2200 Sound level (dB)
55 Dimensions WxDxH (mm)
206x289x569 Weight (Kg)
38,5 Pack (u.)
1
Model
CRVpro 30 Application
Glove box, mass spectrometer Flow rate (l/min)/(m3/h)
483/29 Final vacuum (mbar abs.)
3x10-3 DN connexion
25KF Oil capacity (ml)
2100 Sound level (dB)
55 Dimensions WxDxH (mm)
206x289x569 Weight (Kg)
39,5 Pack (u.)
1
CRVpro 30 Application
Glove box, mass spectrometer Flow rate (l/min)/(m3/h)
483/29 Final vacuum (mbar abs.)
3x10-3 DN connexion
25KF Oil capacity (ml)
2100 Sound level (dB)
55 Dimensions WxDxH (mm)
206x289x569 Weight (Kg)
39,5 Pack (u.)
1
Accessories and spare parts
Description
DirectorrTM premium vacuum oil, 1 l Pack (u.)
1
DirectorrTM premium vacuum oil, 1 l Pack (u.)
1
Description
DirectorrTM premium vacuum oil, 5 l Pack (u.)
1
DirectorrTM premium vacuum oil, 5 l Pack (u.)
1
Description
Inlet condenser (AKS 16) for CRVpro 2,4,6,8 Pack (u.)
1
Inlet condenser (AKS 16) for CRVpro 2,4,6,8 Pack (u.)
1
Description
Inlet condenser (AKS 25) for CRVpro 16,24,30 Pack (u.)
1
Inlet condenser (AKS 25) for CRVpro 16,24,30 Pack (u.)
1
Description
Nitrogen cold trap (dry ice) DN10 input for CRVpro 2,4,6,8 Pack (u.)
1
Nitrogen cold trap (dry ice) DN10 input for CRVpro 2,4,6,8 Pack (u.)
1
Description
Outlet AKD 16 oil mist separator for CRVpro 2,4,6,8 Pack (u.)
1
Outlet AKD 16 oil mist separator for CRVpro 2,4,6,8 Pack (u.)
1
Description
Outlet AKD 25 oil mist separator for CRVpro 16 Pack (u.)
1
Outlet AKD 25 oil mist separator for CRVpro 16 Pack (u.)
1
Description
OME oil mist fiter with interchangeable cartridge (plastic) for CRVpro 2,4,6,8 Pack (u.)
1
OME oil mist fiter with interchangeable cartridge (plastic) for CRVpro 2,4,6,8 Pack (u.)
1
Description
OME oil mist fiter with interchangeable cartridge (plastic) for CRVpro 16,24,30 Pack (u.)
1
OME oil mist fiter with interchangeable cartridge (plastic) for CRVpro 16,24,30 Pack (u.)
1
Description
Standard breather filter with good capture of oil mist (metal) for CRVpro 4,6,8 Pack (u.)
1
Standard breather filter with good capture of oil mist (metal) for CRVpro 4,6,8 Pack (u.)
1
Description
Standard breather filter with good capture of oil mist (metal) for CRVpro 16,24,30 Pack (u.)
1
Standard breather filter with good capture of oil mist (metal) for CRVpro 16,24,30 Pack (u.)
1
Description
Professional breather filter with excellent oil mist capture and pump noise reduction (metal) for CRVpro 4,6,8 Pack (u.)
1
Professional breather filter with excellent oil mist capture and pump noise reduction (metal) for CRVpro 4,6,8 Pack (u.)
1
Description
Professional breather filter with excellent oil mist capture and pump noise reduction (metal) for CRVpro 16,24,30 Pack (u.)
1
Professional breather filter with excellent oil mist capture and pump noise reduction (metal) for CRVpro 16,24,30 Pack (u.)
1
Description
Hose adapter kit with connector, 1.5 m red rubber vacuum hose and clamps Pack (u.)
1
Hose adapter kit with connector, 1.5 m red rubber vacuum hose and clamps Pack (u.)
1
Description
Stainless steel vacuum hose, 1,5 m DN16 Pack (u.)
1
Stainless steel vacuum hose, 1,5 m DN16 Pack (u.)
1
Description
Stainless steel vacuum hose, 1,5 m DN25 Pack (u.)
1
Stainless steel vacuum hose, 1,5 m DN25 Pack (u.)
1
Description
Oil drain valve, funnel Pack (u.)
1
Oil drain valve, funnel Pack (u.)
1
Description
Freeze dryer adapter kit, with AKD oil mist separator, 2-way ball valve, PVC vacuum hose (1,5m) and hose connector DN 16KF / DN 25KF, clamping clamp and centering ring DN16 for CRVpro 4,6,8 Pack (u.)
1
Freeze dryer adapter kit, with AKD oil mist separator, 2-way ball valve, PVC vacuum hose (1,5m) and hose connector DN 16KF / DN 25KF, clamping clamp and centering ring DN16 for CRVpro 4,6,8 Pack (u.)
1
Description
Freeze dryer adapter kit, with AKD oil mist separator, 2-way ball valve, PVC vacuum hose (1.5m) and hose connector DN 16KF / DN 25KF, clamp clamp and centering ring DN25 for CRVpro 16,24,30. Pack (u.)
1
Freeze dryer adapter kit, with AKD oil mist separator, 2-way ball valve, PVC vacuum hose (1.5m) and hose connector DN 16KF / DN 25KF, clamp clamp and centering ring DN25 for CRVpro 16,24,30. Pack (u.)
1
Description
Replacement kit for model CRVpro 4 Pack (u.)
1
Replacement kit for model CRVpro 4 Pack (u.)
1
Description
Replacement kit for model CRVpro 6 Pack (u.)
1
Replacement kit for model CRVpro 6 Pack (u.)
1
Description
Replacement kit for model CRVpro 8 Pack (u.)
1
Replacement kit for model CRVpro 8 Pack (u.)
1
Description
Replacement kit for model CRVpro 16 Pack (u.)
1
Replacement kit for model CRVpro 16 Pack (u.)
1
Description
Replacement kit for model CRVpro 24 Pack (u.)
1
Replacement kit for model CRVpro 24 Pack (u.)
1
Description
Replacement kit for model CRVpro 30 Pack (u.)
1
Replacement kit for model CRVpro 30 Pack (u.)
1
Connect:
Scharlab S.L.
F +34937152765
helpdesk@scharlab.com
Gato Pérez, 33. Pol. Ind. Mas d’en Cisa E08181 Sentmenat, Barcelona, España
T +34937456400F +34937152765
helpdesk@scharlab.com
Laboratory supplies
Chemicals Microbiology Glassware, quartz and porcelain Chromatography Equipment Consumables Safety and hygiene
Chemicals Microbiology Glassware, quartz and porcelain Chromatography Equipment Consumables Safety and hygiene
