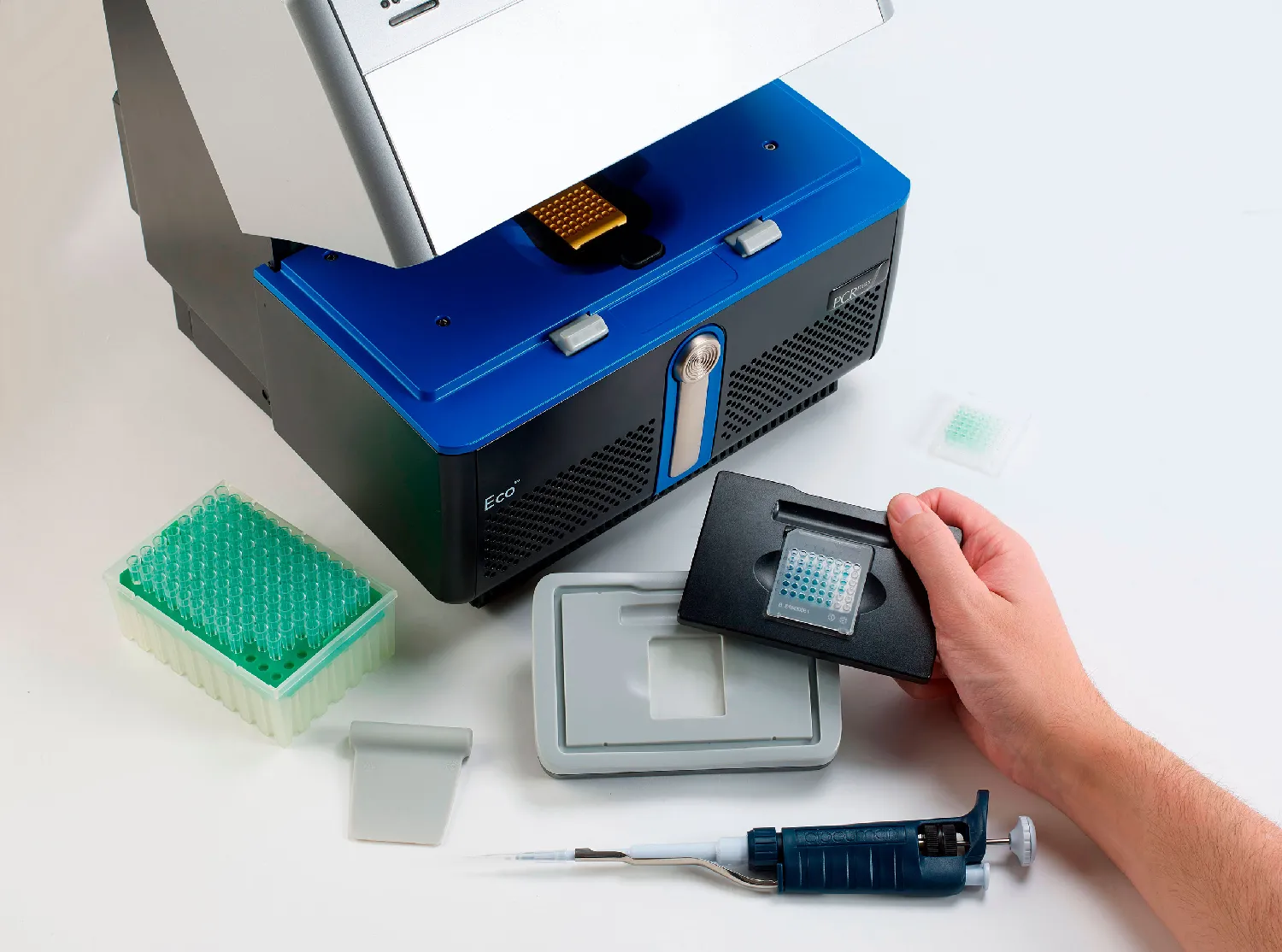

Real Time qPCR thermal cycler ECO 48

The PCRmax Eco 48 real time PCR system is a compact, high specification, economically priced real time thermal cycler that accommodates a unique 48-well polypropylene PCR plate utilising the same geometry as standard 384-well-plates, but only 1/8 of te size. This enables users to dramatically reduce the qPCR reagent volumes compared to traditional 96-well instruments, saving users precious sample, whilst still producing a strong fluorescence signal. Minimizing the plate size also significantly improves thermal uniformity.

- MIQE compliant
- 4 channels (emmission filters at 505 a 545 nm, 562 a 596 nm, 604 a 644 nm, 665 a 705 nm)
- 40 cycles in 20 minuts before optimised (or shorter cycles once optimised)
- ±0.1 °C temperature uniformity, which provides high quality data.
- Open platforms that can utilised any chemistry, dye or PCR reagent
- Calibrated for SYRB®, FAM™, HEX™, VIC™, ROC™ and Cy®5 fluorescent dyes.
- Easy and user friendly software
- No need to run triplicates, to compensate for poor thermal uniformity block.
- 2 years warrantee

Model
ECO 48 Positions
48 Wells volume (µl)
5 - 20 Temperature range (ºC)
35 -100 Maximum heating rate (ºC/s)
5.5 Uniformity at 95ºC (ºC)
± 0.1 Accuracy (ºC)
± 0.25 Dimensions WxHxD (mm)
345 x 320 x 310 Pack (u.)
1

Reference
PCRECORT48

Packaging
x u.

Price
Buy

Disponibility

Check stock
