Stirring shafts
Stainless steel rod. Must be chosen taking into account the power of the stirrer, the sample volume and the viscosity stirring. The technical features and application areas of the stirring shafts are summarized below.
Stainless steel rod. Must be chosen taking into account the power of the stirrer, the sample volume and the viscosity stirring. The technical features and application areas of the stirring shafts are summarized below.
Description
Stirring shaft with floating blades Number of blades
2 Blade diameter (mm)
93 Shaft diameter (mm)
7 Shaft length (mm)
400 Speed (rpm)
250 to >800 Viscosity (mPas)
0 to 1000 Pack (u.)
1
Stirring shaft with floating blades Number of blades
2 Blade diameter (mm)
93 Shaft diameter (mm)
7 Shaft length (mm)
400 Speed (rpm)
250 to >800 Viscosity (mPas)
0 to 1000 Pack (u.)
1
Description
Stirring shaft with folding blade Number of blades
1 Blade diameter (mm)
60 Shaft diameter (mm)
7 Shaft length (mm)
400 Speed (rpm)
250 to >800 Viscosity (mPas)
0 to 1000 Pack (u.)
1
Stirring shaft with folding blade Number of blades
1 Blade diameter (mm)
60 Shaft diameter (mm)
7 Shaft length (mm)
400 Speed (rpm)
250 to >800 Viscosity (mPas)
0 to 1000 Pack (u.)
1
Description
Stirring shaft with fix blades Number of blades
1 Blade diameter (mm)
50 Shaft diameter (mm)
7 Shaft length (mm)
400 Speed (rpm)
250 to >800 Viscosity (mPas)
0 to 10000 Pack (u.)
1
Stirring shaft with fix blades Number of blades
1 Blade diameter (mm)
50 Shaft diameter (mm)
7 Shaft length (mm)
400 Speed (rpm)
250 to >800 Viscosity (mPas)
0 to 10000 Pack (u.)
1
Description
Stirring shaft with propeller Number of blades
3 Blade diameter (mm)
60 Shaft diameter (mm)
7 Shaft length (mm)
400 Speed (rpm)
250 to >800 Viscosity (mPas)
0 to 10000 Pack (u.)
1
Stirring shaft with propeller Number of blades
3 Blade diameter (mm)
60 Shaft diameter (mm)
7 Shaft length (mm)
400 Speed (rpm)
250 to >800 Viscosity (mPas)
0 to 10000 Pack (u.)
1
Description
Stirring shaft with paddle, 6 holes Number of blades
1 Blade diameter (mm)
69 Shaft diameter (mm)
7 Shaft length (mm)
450 Speed (rpm)
&lt;250 to 800 Viscosity (mPas)
100 to 10000 Pack (u.)
1
Stirring shaft with paddle, 6 holes Number of blades
1 Blade diameter (mm)
69 Shaft diameter (mm)
7 Shaft length (mm)
450 Speed (rpm)
&lt;250 to 800 Viscosity (mPas)
100 to 10000 Pack (u.)
1
Description
Stirring shaft with turbine Number of blades
10 Blade diameter (mm)
49 Shaft diameter (mm)
7 Shaft length (mm)
450 Speed (rpm)
250 to &gt;800 Viscosity (mPas)
1000 to 100000 Pack (u.)
1
Stirring shaft with turbine Number of blades
10 Blade diameter (mm)
49 Shaft diameter (mm)
7 Shaft length (mm)
450 Speed (rpm)
250 to &gt;800 Viscosity (mPas)
1000 to 100000 Pack (u.)
1
Description
Stirring shaft with turbo propeller Number of blades
3 Blade diameter (mm)
46 Shaft diameter (mm)
7 Shaft length (mm)
450 Speed (rpm)
250 to &gt;800 Viscosity (mPas)
1000 to 100000 Pack (u.)
1
Stirring shaft with turbo propeller Number of blades
3 Blade diameter (mm)
46 Shaft diameter (mm)
7 Shaft length (mm)
450 Speed (rpm)
250 to &gt;800 Viscosity (mPas)
1000 to 100000 Pack (u.)
1
Description

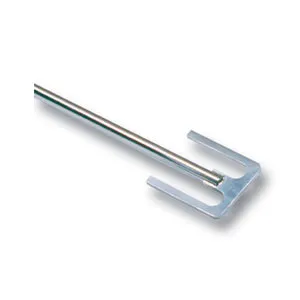

Stirring shaft with anchor Number of blades
2 Blade diameter (mm)
45 Shaft diameter (mm)
7 Shaft length (mm)
450 Speed (rpm)
&lt;250 to 800 Viscosity (mPas)
1000 to 100000 Pack (u.)
1
Stirring shaft with anchor Number of blades
2 Blade diameter (mm)
45 Shaft diameter (mm)
7 Shaft length (mm)
450 Speed (rpm)
&lt;250 to 800 Viscosity (mPas)
1000 to 100000 Pack (u.)
1
