Platform Shakers Titramax / Vibramax

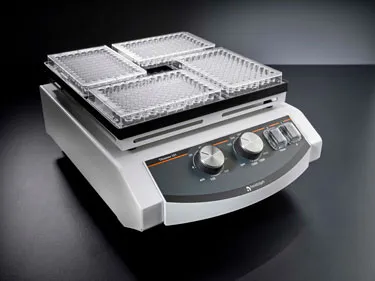

Platform lab shakers come with an insulated system to prevent any heat transfer from the motor that could cause potential thermal damage to your simple. The 1,5mm vibration orbit performs gentle mixing with best results using small sample volumes. Set and continuously adjust the variable speed on the analog control knob from 150 to 1.350rpm. Your analog process timer allows for unattended operation and can be set from 1 to 120 minutes. When the set time has elapsed an acoustic alarm will sound and the operation stops. Titramax 100 is a compact and space-saving unit that accepts load capacities of 2kg and space for 4 microtiter plates.
Titramax 101:
The Titramax 101 has a 3mm vibration orbit which was designed for larger sample volumes.
Titramax 1000:
The use of 6 microtiter plates increases your throughput by 50%. Is a medium-sized model and accepts load capacities of 5kg. Is suitable for the modular incubator system and is recommended for applications which require variable temperature control of up to 65°C.
Vibramax 100:
Vibramax 100 is a compact and space saving unit with a load capacity of 2kg. The 3mm vibration orbit gives excellent results especially in large vessels - allows for smooth to ridged mixing of viscous media and solids. Set and continuously adjust the variable speed on the analog control knob from 150 to 1.350rpm.
Your analog process timer allows for unattended operation and can be set from 1 to 120 minutes. When the set time has elapsed an acoustic alarm will sound and the operation stops. Optional attachment with tension rollers accepts any glassware size. A large selection of attachments is provided for the use of various vessels and sizes.
Vibramax 110:
The shaking orbit of 1,5mm performs a gentle motion for sensitive samples. Set and continuously adjust the variable speed on the analog control knob from 150 to 2.500rpm. Ideal for the optional attachment to use 49 test tubes that increases your throughput significantly.
Power supply: 230 V
Titramax 100:
Platform lab shakers come with an insulated system to prevent any heat transfer from the motor that could cause potential thermal damage to your simple. The 1,5mm vibration orbit performs gentle mixing with best results using small sample volumes. Set and continuously adjust the variable speed on the analog control knob from 150 to 1.350rpm. Your analog process timer allows for unattended operation and can be set from 1 to 120 minutes. When the set time has elapsed an acoustic alarm will sound and the operation stops. Titramax 100 is a compact and space-saving unit that accepts load capacities of 2kg and space for 4 microtiter plates.
Titramax 101:
The Titramax 101 has a 3mm vibration orbit which was designed for larger sample volumes.
Titramax 1000:
The use of 6 microtiter plates increases your throughput by 50%. Is a medium-sized model and accepts load capacities of 5kg. Is suitable for the modular incubator system and is recommended for applications which require variable temperature control of up to 65°C.
Vibramax 100:
Vibramax 100 is a compact and space saving unit with a load capacity of 2kg. The 3mm vibration orbit gives excellent results especially in large vessels - allows for smooth to ridged mixing of viscous media and solids. Set and continuously adjust the variable speed on the analog control knob from 150 to 1.350rpm.
Your analog process timer allows for unattended operation and can be set from 1 to 120 minutes. When the set time has elapsed an acoustic alarm will sound and the operation stops. Optional attachment with tension rollers accepts any glassware size. A large selection of attachments is provided for the use of various vessels and sizes.
Vibramax 110:
The shaking orbit of 1,5mm performs a gentle motion for sensitive samples. Set and continuously adjust the variable speed on the analog control knob from 150 to 2.500rpm. Ideal for the optional attachment to use 49 test tubes that increases your throughput significantly.
Power supply: 230 V
Titramax 100 Shaking frequency (rpm)
150 to 1350 Orbital dimension (mm)
1,5 Maximum load (Kg)
2 Dimensions HxWxD (mm)
125x245x310 Weight (Kg)
5,5 Pack (u.)
1
Titramax 101 Shaking frequency (rpm)
150 to 1350 Orbital dimension (mm)
3 Maximum load (Kg)
2 Dimensions HxWxD (mm)
125x245x310 Weight (Kg)
5,5 Pack (u.)
1
Titramax 1000 Shaking frequency (rpm)
150 to 1350 Orbital dimension (mm)
1,5 Maximum load (Kg)
5 Dimensions HxWxD (mm)
125x320x375 Weight (Kg)
6,5 Pack (u.)
1
Vibramax 100 Shaking frequency (rpm)
150 to 1350 Orbital dimension (mm)
3 Maximum load (Kg)
2 Dimensions HxWxD (mm)
125x245x310 Weight (Kg)
5,5 Pack (u.)
1
