Orbital shaker incubators
The ES-80 orbital shaker incubator is a stable and reliable orbital shaker-incubator for vigorous or even mixing and incubation of samples in a variety of flasks and vessels.
Specifications:
- Digital control of time, temperature and shaking speed for accuracy and repeatability
- Temperature control by microprocessor plus forced heated air circulation ensure a constant and even temperature within the chamber
- Simple to programme time, temperature and shaking speed using clear 2-line 16 character LCD. Simple to programme time, – 1 minute to 96 hours or non-stop
- Interchangeable platforms for shaking/incubating different vessels. Platforms has to be ordered, separately

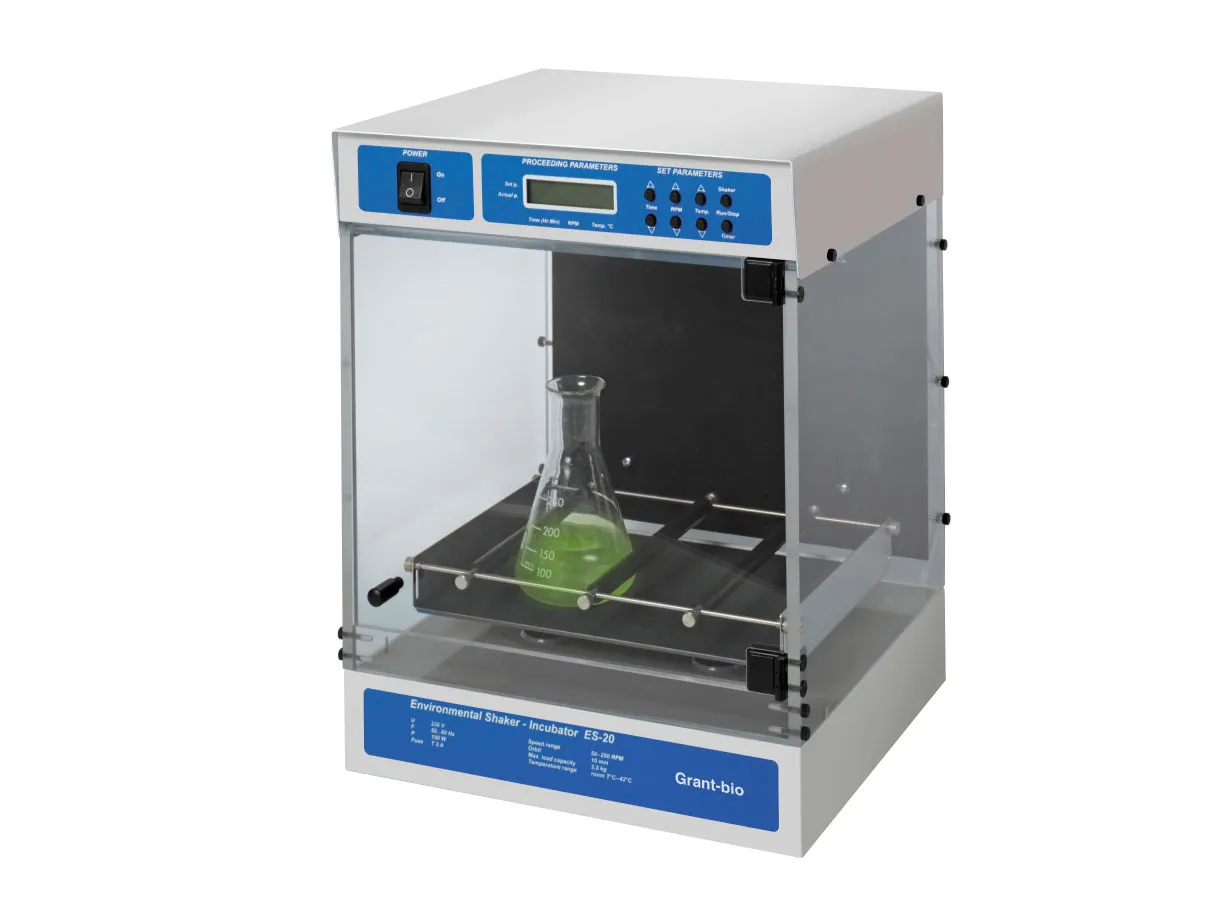

The ES-20 orbital shaker incubator is a versatile programmable bench-top shaker-incubator for mixing and incubating biological fluids, samples, cell cultures and tissues in variety of flasks and vessels.
The ES-80 orbital shaker incubator is a stable and reliable orbital shaker-incubator for vigorous or even mixing and incubation of samples in a variety of flasks and vessels.
Specifications:
- Digital control of time, temperature and shaking speed for accuracy and repeatability
- Temperature control by microprocessor plus forced heated air circulation ensure a constant and even temperature within the chamber
- Simple to programme time, temperature and shaking speed using clear 2-line 16 character LCD. Simple to programme time, – 1 minute to 96 hours or non-stop
- Interchangeable platforms for shaking/incubating different vessels. Platforms has to be ordered, separately
ES-20 Speed (rpm)
50-250 Orbital diameter (mm)
10 Maximum load (Kg)
2.5 Temperature range (ºC)
25-42 Stability (ºC)
±0.5 Weight (kg)
13.2 External dimensions WxHxD (mm)
340x435x340 Int. dim. WxHxD (mm)
305x250x260 (with platform) Pack (u.)
1
ES-80 Speed (rpm)
50-250 Orbital diameter (mm)
20 Maximum load (Kg)
8 Temperature range (ºC)
25-80 Stability (ºC)
±0.5 Weight (kg)
41.1 External dimensions WxHxD (mm)
590x510x525 Int. dim. WxHxD (mm)
390x300x450 (with platform) Pack (u.)
1
Accessorios
Universal flat-bed platform with 3 adjustable bars to hold flasks, beakers, bottles. Dim. (mm): 270x195x40 Pack (u.)
1
Flat platform with non-slip mat. Dim. (mm): 220x220 For models
ES-20 Pack (u.)
1
Platform with spring clamps for 12 x 100-150 ml flasks. Dim. (mm): 250x190 Pack (u.)
1
Platform with spring clamps for 6 x 250-300 ml flasks. Dim. (mm): 250x190 Pack (u.)
1
Platform with spring holders for 88 tubes, Ø up to 30 mm. Dim. (mm): 275x205x75 Pack (u.)
1
Adjustable bar additional for GRA-PUP-12 platform Pack (u.)
1
Platform with spring clamps for 30 x 100ml flasks. Dim. (mm): 360x400 Pack (u.)
1
Platform with spring clamps for 16 x 250ml flasks. Dim. (mm): 360x400 Pack (u.)
1
Platform with spring clamps for 9 x 500ml flasks. Dim. (mm): 360x400 Pack (u.)
1
Platform with spring clamps for 6 x 1000ml flasks. Dim. (mm): 360x400 Pack (u.)
1
Flat platform with non-slip mat. Dim. (mm): 360x400 For models
ES-80 Pack (u.)
1
Universal spring clamp platform. Spring clamps sold separately Pack (u.)
1
Stainless steel clamp for flask 100 ml, Ø 65 mm Pack (u.)
1
Stainless steel clamp for flask 250 ml, Ø 85 mm Pack (u.)
1
Stainless steel clamp for flask 500 ml, Ø 105 mm Pack (u.)
1
Stainless steel clamp for flask 1000 ml, Ø 130 mm Pack (u.)
1
Stainless steel clamp for flask 2000 ml, Ø 165 mm Pack (u.)
1
Adjustable tilt test tube rack for 21x 50ml tubes. For use with the GRA-UP-168 Pack (u.)
1
Adjustable tilt test tube rack for 44x 15ml tubes. For use with the GRA-UP-168 Pack (u.)
1
