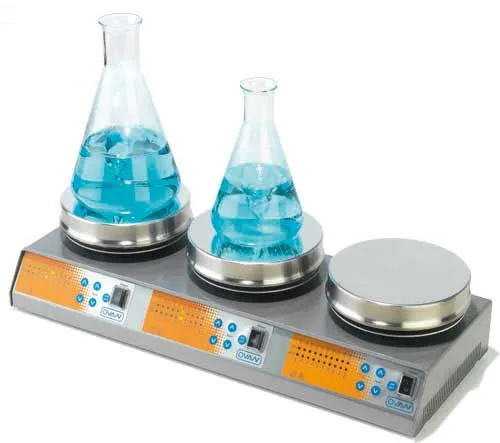

MultiMix Heat Magnetic stirrer multiplace with heating
Multi-stirrer in a single platform with 3 positions, with a single electrical connection and each magnetic stirrer works independently.
- Speed and temperature adjustable, controlled by microprocessor
- Selection among 10 different - levels for temperature as well as for speed
- Display of LED's with indication of the selected values
- Membrane push-button control
- Removable plates to be able to replace itself in case of deterioration
Technical data:
- Plate material: Aluminium alloy
- Plate diameter (mm): 154 for place
- Magnetic stirring power (W): 5 for place
- Heating power (W): 500 for place
- Dimensions (mm): 525x205x120
- Weight (kg): 7
- Protection IP32
- Speed and temperature adjustable, controlled by microprocessor
- Selection among 10 different - levels for temperature as well as for speed
- Display of LED's with indication of the selected values
- Membrane push-button control
- Removable plates to be able to replace itself in case of deterioration
Technical data:
- Plate material: Aluminium alloy
- Plate diameter (mm): 154 for place
- Magnetic stirring power (W): 5 for place
- Heating power (W): 500 for place
- Dimensions (mm): 525x205x120
- Weight (kg): 7
- Protection IP32
Multi-stirrer in a single platform with 3 positions, with a single electrical connection and each magnetic stirrer works independently.
- Speed and temperature adjustable, controlled by microprocessor
- Selection among 10 different - levels for temperature as well as for speed
- Display of LED's with indication of the selected values
- Membrane push-button control
- Removable plates to be able to replace itself in case of deterioration
Technical data:
- Plate material: Aluminium alloy
- Plate diameter (mm): 154 for place
- Magnetic stirring power (W): 5 for place
- Heating power (W): 500 for place
- Dimensions (mm): 525x205x120
- Weight (kg): 7
- Protection IP32
Model
MMH3E Number of places
3 Maximum volume (l/place)
5 Speed (rpm)
300-1500 Resolution (rpm)
10 levels Temperature range (ºC)
37-400 Resolution (°C)
10 levels Probe
Contact thermometer or electronic thermometer (need to be ordered) Pack (u.)
1
MMH3E Number of places
3 Maximum volume (l/place)
5 Speed (rpm)
300-1500 Resolution (rpm)
10 levels Temperature range (ºC)
37-400 Resolution (°C)
10 levels Probe
Contact thermometer or electronic thermometer (need to be ordered) Pack (u.)
1
Accessories
* Consult for other sizes
Description
Contact thermometer 100ºC, 15 cm rod Pack (u.)
1
Contact thermometer 100ºC, 15 cm rod Pack (u.)
1
Description
Contact thermometer 200ºC, 15 cm rod Pack (u.)
1
Contact thermometer 200ºC, 15 cm rod Pack (u.)
1
Description
Contact thermometer 300ºC, 15 cm rod Pack (u.)
1
Contact thermometer 300ºC, 15 cm rod Pack (u.)
1
Description
Cable for thermometer DIN connection Pack (u.)
1
Cable for thermometer DIN connection Pack (u.)
1
Description
Support rod Pack (u.)
1
Support rod Pack (u.)
1
Description
Fastening clamp for Pt100 Pack (u.)
1
Fastening clamp for Pt100 Pack (u.)
1
Description
Set of 18 assorted magnets Pack (u.)
1
Set of 18 assorted magnets Pack (u.)
1
Description
Stirring magnet 8x30 mm * Pack (u.)
5
Stirring magnet 8x30 mm * Pack (u.)
5
Description
Protection ring stainless steel Pack (u.)
1
Protection ring stainless steel Pack (u.)
1
