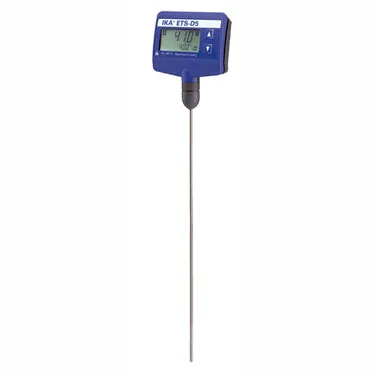

Electronic contact thermometers ETS-D5 / ETS-D6

Electronic Contact Thermometers.
- With optimised PID control
- RESET function
- Incl. stainless steel sensor H 62.51
- For all magnetic stirrers with contact thermometer bushing according to DIN 12878, class 2 (e. g. IKA®, Heidolph and Corning with adapter AD-C1)
- Ensures perfect temperature control without overshooting the set temperature, even in the case of quick heating
- Patented: 3 modes of operation guarantee optimum adjustment to every working method: Operating mode A: Suitable for work with varying parameters (from -50 to 450°C). Safety temperature adjustable. Operating mode B: Suitable for series operation under uniform conditions. Operating mode C: Suitable for unsupervised operation. All values are taken from the memory. This ensures perfect protection against inadvertent improper adjustment.
ETS-D6: For all magnetic stirrers with contact thermometer bushing acc. to DIN 12878, class 2.
- With integrated pH measuring instrument (without pH electrode)
- Large, graphic LCD display with multilingual user guide

Common Technical Data:
- Resolution: 0,1K
- PT 1000 DIN IEC 751 class A
- Supply voltage: 8 to 16 VDC
- Plug: 6 pin DIN 45322
Connection: DIN 12878 class 2

ETS-D5:
- Measuring accuracy: ± 0,2K
- Control derivation: ± 0,1K
- Setting accuracy: ± 0,5K

ETS-D6:
- Measuring accuracy: ± 0,05K
- Control derivation: ± 0,2K
- Measuring range: 0 to 14 pH
- Accuracy: ± 0,1 pH
- Resolution: ± 0,01 pH
- pH connection: BNC bushing

Electronic Contact Thermometers.
- With optimised PID control
- RESET function
- Incl. stainless steel sensor H 62.51
- For all magnetic stirrers with contact thermometer bushing according to DIN 12878, class 2 (e. g. IKA®, Heidolph and Corning with adapter AD-C1)
- Ensures perfect temperature control without overshooting the set temperature, even in the case of quick heating
- Patented: 3 modes of operation guarantee optimum adjustment to every working method: Operating mode A: Suitable for work with varying parameters (from -50 to 450°C). Safety temperature adjustable. Operating mode B: Suitable for series operation under uniform conditions. Operating mode C: Suitable for unsupervised operation. All values are taken from the memory. This ensures perfect protection against inadvertent improper adjustment.
ETS-D6: For all magnetic stirrers with contact thermometer bushing acc. to DIN 12878, class 2.
- With integrated pH measuring instrument (without pH electrode)
- Large, graphic LCD display with multilingual user guide

Common Technical Data:
- Resolution: 0,1K
- PT 1000 DIN IEC 751 class A
- Supply voltage: 8 to 16 VDC
- Plug: 6 pin DIN 45322
Connection: DIN 12878 class 2

ETS-D5:
- Measuring accuracy: ± 0,2K
- Control derivation: ± 0,1K
- Setting accuracy: ± 0,5K

ETS-D6:
- Measuring accuracy: ± 0,05K
- Control derivation: ± 0,2K
- Measuring range: 0 to 14 pH
- Accuracy: ± 0,1 pH
- Resolution: ± 0,01 pH
- pH connection: BNC bushing

Ver más

Contact thermometers

Model
ETS-D5
Temperature range (ºC)
-50 to 450
Dimensions WxHxD (without sensor) (mm)
82x83x22
Weight (Kg)
0,2
Pack (u.)
1
Reference
0223378000
Packaging
x u.
Price
Buy
Disponibility
Model
ETS-D6
Temperature range (ºC)
-50 to 450
Dimensions WxHxD (without sensor) (mm)
96x98x45
Weight (Kg)
0,2
Pack (u.)
1
Reference
0223378100
Packaging
x u.
Price
Buy
Disponibility

Accessories

Description
H 62.51 Stainless steel sensor
Pack (u.)
1
Reference
0222735451
Packaging
x u.
Price
Buy
Disponibility
Description
H 66.51 Stainless steel sensor, glass-coated
Pack (u.)
1
Reference
0222735551
Packaging
x u.
Price
Buy
Disponibility
Description
H 70 Extension Cable
Pack (u.)
1
Reference
1092735600
Packaging
x u.
Price
Buy
Disponibility
Description
H 16 V support rod
Pack (u.)
1
Reference
0221545100
Packaging
x u.
Price
Buy
Disponibility
Description
H 44 head clamp
Pack (u.)
1
Reference
0222437700
Packaging
x u.
Price
Buy
Disponibility
Description
H 36 lockarm
Pack (u.)
1
Reference
0223547700
Packaging
x u.
Price
Buy
Disponibility
