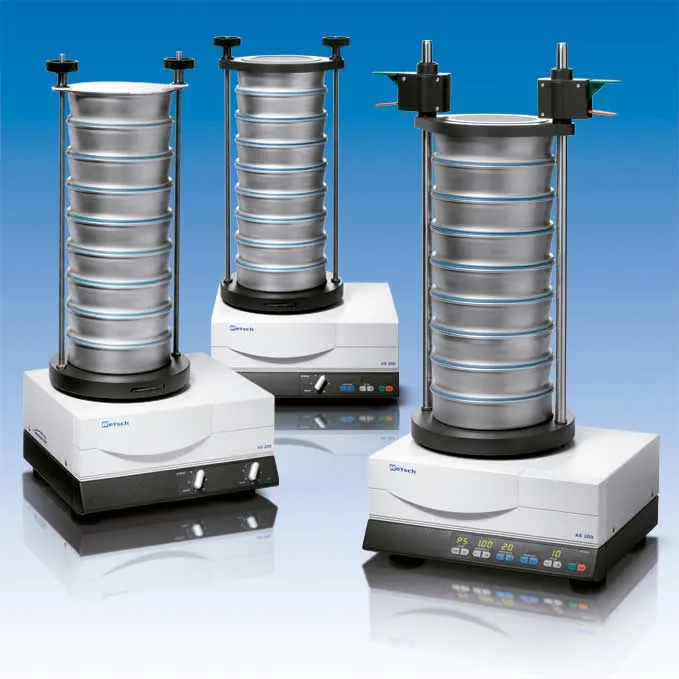

Analytical Sieve Shakers AS 200 basic/digit/control
The AS 200 Control, like AS 200 digit, but microprocessor-controlled, with freely selectable intervals and digital vibration amplitude setting. It can be calibrated and, for the first time, allows 100 % reproducible sieving results, even if different instruments are used. The AS 200 control has an integrated interface for the evaluation software EasySieve®. At the same time it also offers all the requirements for test materials monitoring acc. to ISO 9000 ff.
Technical data:
- Height of sieve stack: up to 450 mm.
- Max. batch / feed capacity: 3 kg.
- Max. number of fractions (depending on sieve size): 9 / 17.
- Measuring range: 20 µm to 25 mm.
- Dimensions (W x H x D): 400 x 203 x 350 mm.
- Weight: approx. 30 kg.
- Suitable sieve sizes: 100 / 150 / 200 / 203 mm.
Sieves, pins and other accessories are not included with the equipment.
Sieve shakers with an electromagnetic regulated drive which allows an optimzed adaptation for any type of material. They convince for their great precision during short time sieve separations. Generally applications for separation tasks, breaking-up, and small grain determination. Also, the AS 200 Digit includes a touch-sensitive keypad for easy management which can work on intervals.
The AS 200 Control, like AS 200 digit, but microprocessor-controlled, with freely selectable intervals and digital vibration amplitude setting. It can be calibrated and, for the first time, allows 100 % reproducible sieving results, even if different instruments are used. The AS 200 control has an integrated interface for the evaluation software EasySieve®. At the same time it also offers all the requirements for test materials monitoring acc. to ISO 9000 ff.
Technical data:
- Height of sieve stack: up to 450 mm.
- Max. batch / feed capacity: 3 kg.
- Max. number of fractions (depending on sieve size): 9 / 17.
- Measuring range: 20 µm to 25 mm.
- Dimensions (W x H x D): 400 x 203 x 350 mm.
- Weight: approx. 30 kg.
- Suitable sieve sizes: 100 / 150 / 200 / 203 mm.
Sieves, pins and other accessories are not included with the equipment.
Sieves
AS 200 basic Amplitude
Analogue, 0 to 3mm Maximum weight (Kg)
4 Pack (u.)
1
AS 200 digit Amplitude
Analogue, 0,2 to 3mm Maximum weight (Kg)
4 Pack (u.)
1
AS 200 digit cA Amplitude
Digital, 0,2 to 3mm Maximum weight (Kg)
4 Pack (u.)
1
Accessories not included
Clamping device 'economy' Pack (u.)
1
Clamping device 'standard' Pack (u.)
1
Clamping device 'comfort' Pack (u.)
1
Universal clamping device 'standard' Pack (u.)
1
Universal clamping device 'comfort' Pack (u.)
1
Universal wet sieving clamping device 'standard' Pack (u.)
1
