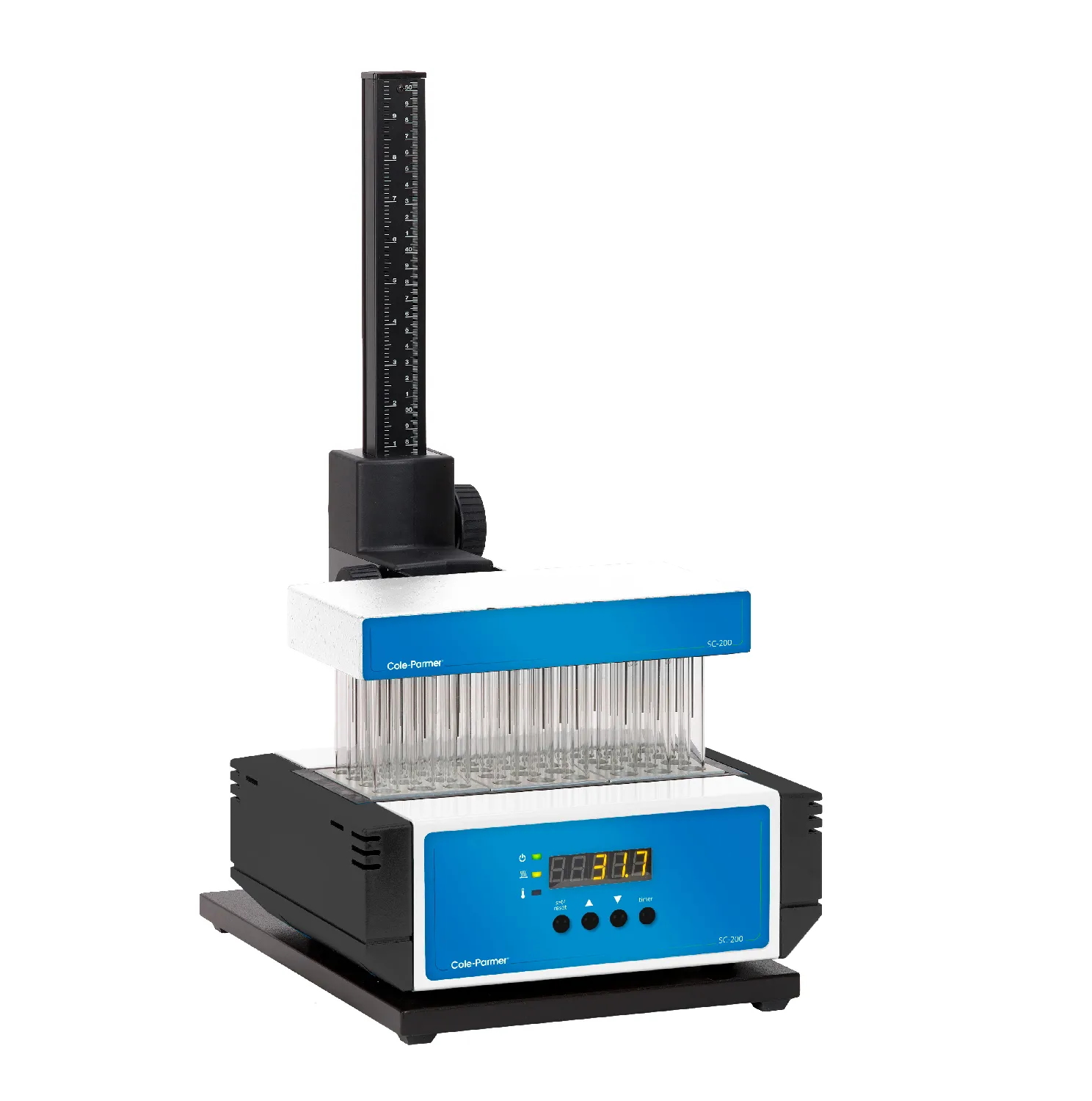

Sample concentrator
The sample concentrator is suitable for the concentration of multiple samples in a heating block, using a system of low-pressure injection of inert gas (usually nitrogen) on the surface of the sample, which in combination with the heating block produces ideal conditions for a rapid and efficient evaporation. The gas injection is performed through a needle inserted into a silicone membrane, which is adjustable in height by a precision rack system.
The sample concentrator includes gas chamber and the tube holder. Needles, heat block heating and aluminum blocks must be ordered separately.
The sample concentrator includes gas chamber and the tube holder. Needles, heat block heating and aluminum blocks must be ordered separately.
The sample concentrator is suitable for the concentration of multiple samples in a heating block, using a system of low-pressure injection of inert gas (usually nitrogen) on the surface of the sample, which in combination with the heating block produces ideal conditions for a rapid and efficient evaporation. The gas injection is performed through a needle inserted into a silicone membrane, which is adjustable in height by a precision rack system.
The sample concentrator includes gas chamber and the tube holder. Needles, heat block heating and aluminum blocks must be ordered separately.
Description
Sample concentrator for use with heating block 3 places Maximum gas pressure (psi)
2 Maximum vertical path (mm)
320 Maximum gas flow (l/min)
15 Dimensions WxHxD (mm)
240x530x295 Weight (Kg)
5 Pack (u.)
1
Sample concentrator for use with heating block 3 places Maximum gas pressure (psi)
2 Maximum vertical path (mm)
320 Maximum gas flow (l/min)
15 Dimensions WxHxD (mm)
240x530x295 Weight (Kg)
5 Pack (u.)
1
Accesories
Description
Pack of needles, 76 mm Pack (u.)
100
Pack of needles, 76 mm Pack (u.)
100
Description
Pack de needles, 127 mm Pack (u.)
100
Pack de needles, 127 mm Pack (u.)
100
Description
Cushion seal gas chamber Pack (u.)
1
Cushion seal gas chamber Pack (u.)
1
Aluminium blocks
Description
Interchangeable aluminum block, Conical Bottom for vials 20 x 12 mm diameter. Includes a hole for a termometer Dimensions WxHxD (mm)
95x75x50 Hole depth (mm)
48 Pack (u.)
1
Interchangeable aluminum block, Conical Bottom for vials 20 x 12 mm diameter. Includes a hole for a termometer Dimensions WxHxD (mm)
95x75x50 Hole depth (mm)
48 Pack (u.)
1
Description
Interchangeable aluminum block, Conical Bottom for vials 12 x 16 mm diameter. Includes a hole for a termometer Dimensions WxHxD (mm)
95x75x50 Hole depth (mm)
48 Pack (u.)
Interchangeable aluminum block, Conical Bottom for vials 12 x 16 mm diameter. Includes a hole for a termometer Dimensions WxHxD (mm)
95x75x50 Hole depth (mm)
48 Pack (u.)
Thermal blocks
Model
BH-250D-3 Number of blocks
3 Temperature range (ºC)
Ambient +5 to 100 Temperature stability at 37 ºC (ºC)
less than ±1 Heating power (W)
450 Dimensions WxHxD (mm)
356x260x105 Weight (kg)
6 Pack (u.)
1
BH-250D-3 Number of blocks
3 Temperature range (ºC)
Ambient +5 to 100 Temperature stability at 37 ºC (ºC)
less than ±1 Heating power (W)
450 Dimensions WxHxD (mm)
356x260x105 Weight (kg)
6 Pack (u.)
1
Model
BH-250D-3-HT Number of blocks
3 Temperature range (ºC)
Ambient +5 to 200 Temperature stability at 37 ºC (ºC)
less than ±1 Heating power (W)
450 Dimensions WxHxD (mm)
356x260x105 Weight (kg)
6 Pack (u.)
1
BH-250D-3-HT Number of blocks
3 Temperature range (ºC)
Ambient +5 to 200 Temperature stability at 37 ºC (ºC)
less than ±1 Heating power (W)
450 Dimensions WxHxD (mm)
356x260x105 Weight (kg)
6 Pack (u.)
1
