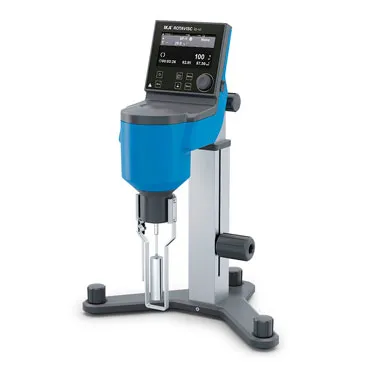

ROTAVISC Complete viscometers
- Easy to operate: the generous 4.3' TFT display allows for an intuitive menu guidance. The simple ramp function simplifies repetitive tasks
- Highest measurement accuracy: the level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is ±1 % of the measuring range. The reproducibility is ±0.2 %
- Stepless speed
ROTAVISC Complete
The scope of delivery includes a standard spindle set (SP set 1 with 4 spindles for lo-vi models, SP set 2 with 6 spindles for me-vi and hi-vi models), a protective bracket, temperature sensor, quick connector, hook connector and ROTASTAND stand.
Technical data:
Viscosity accuracy: 1%
Repeatability: 0.2%
Temp Resolution: 0.1 ºC
Connection for PT100 probe
Timer and continuous operation
Interfaces: USB, RS232, analog output
Weight: 7.1 Kg
Dim. AnxAlxPr (mm): 351x629x372
The new ROTAVISC viscometers series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control. The four devices measure in different viscosity ranges. Regardless of a simple or demanding viscosity measurement - the ROTAVISC delivers rapid and accurate results.
- Easy to operate: the generous 4.3' TFT display allows for an intuitive menu guidance. The simple ramp function simplifies repetitive tasks
- Highest measurement accuracy: the level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is ±1 % of the measuring range. The reproducibility is ±0.2 %
- Stepless speed
ROTAVISC Complete
The scope of delivery includes a standard spindle set (SP set 1 with 4 spindles for lo-vi models, SP set 2 with 6 spindles for me-vi and hi-vi models), a protective bracket, temperature sensor, quick connector, hook connector and ROTASTAND stand.
Technical data:
Viscosity accuracy: 1%
Repeatability: 0.2%
Temp Resolution: 0.1 ºC
Connection for PT100 probe
Timer and continuous operation
Interfaces: USB, RS232, analog output
Weight: 7.1 Kg
Dim. AnxAlxPr (mm): 351x629x372
Rotavisc lo-vi Complete Viscosity range (mPas)
1-6000000 Speed (rpm)
0.01-200 Temperature range (ºC)
-100 to 300 Pack (u.)
1
Rotavisc me-vi Complete Viscosity range (mPas)
100-40000000 Speed (rpm)
0.01-200 Temperature range (ºC)
-100 to 300 Pack (u.)
1
Rotavisc hi-vi I Complete Viscosity range (mPas)
200-80000000 Speed (rpm)
0.01-200 Temperature range (ºC)
-100 to 300 Pack (u.)
1
Rotavisc hi-vi II Complete Viscosity range (mPas)
800-320000000 Speed (rpm)
0.01-200 Temperature range (ºC)
-100 to 300 Pack (u.)
1
