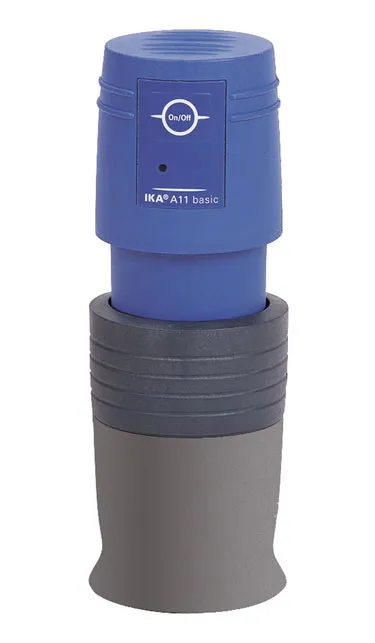

A 11 basic analytical mill
-Impact grinding of hard, brittle and fragile by using a stainless steel mixer. This beater can be used for a Mohs hardness of 6 (included in delivery).
- Cutting grinding for pulverizing soft, fibrous materials with a cutting blade (not included in delivery).
The wet and sticky loads may crumble by adding water.
Container Tefzel (ETFE, glass fiber reinforced) with stainless steel inlet (AISI 316L), useful volume of 80ml (included in delivery), which allows mixing grinding materials with liquid nitrogen directly into the grinding chamber. Vessel with a working volume of 250ml available optionally.
Technical data:
- Power consumption motor 160W
- Power supply motor 100W
- Circumferentially Max. 53 m/s
- Sound Product max. 6mohs
- Material beater/blade stainless steel 1.4034
- Sub milling item stainless steel 1.4571
- Weight 1.5 Kg
- Permissible ambient temperature 5-40 ° C
- Permissible relative humidity 80%
- Power supply: 220-230 V.
Loading mill for two different grinding procedures.
-Impact grinding of hard, brittle and fragile by using a stainless steel mixer. This beater can be used for a Mohs hardness of 6 (included in delivery).
- Cutting grinding for pulverizing soft, fibrous materials with a cutting blade (not included in delivery).
The wet and sticky loads may crumble by adding water.
Container Tefzel (ETFE, glass fiber reinforced) with stainless steel inlet (AISI 316L), useful volume of 80ml (included in delivery), which allows mixing grinding materials with liquid nitrogen directly into the grinding chamber. Vessel with a working volume of 250ml available optionally.
Technical data:
- Power consumption motor 160W
- Power supply motor 100W
- Circumferentially Max. 53 m/s
- Sound Product max. 6mohs
- Material beater/blade stainless steel 1.4034
- Sub milling item stainless steel 1.4571
- Weight 1.5 Kg
- Permissible ambient temperature 5-40 ° C
- Permissible relative humidity 80%
- Power supply: 220-230 V.
A 11 basic Nominal speed (min-1)
28000 Maximum granularity (mm)
10 Effective chamber volume (ml)
80 Pack (u.)
1
Accessories
Beater A 11.1, stainless steel for materials up to 6 Mohs Pack (u.)
1
Double beater A 11.6 for materials up to 3 Mohs (only for grinding chamber A 11.4) Pack (u.)
1
Funnel A 11. Avoid splashing by pouring liquid nitrogen into the grinding chamber A 11.5 Pack (u.)
1
Blade A 11.2, stainless steel for soft, fibrous materials Pack (u.)
1
Beater A 11.3, stainless steel. Chromium carbide coated, for materials up to 9 Mohs Pack (u.)
1
Grinding chamber A 11.4, only with double beater A 11.6. Nitrogen not allow. Net volume 250 ml Pack (u.)
1
Grinding chamber A 11.5, Tefzel, chemical resistance and at low temperatures (-200ºC). Net volume 80ml Pack (u.)
1
