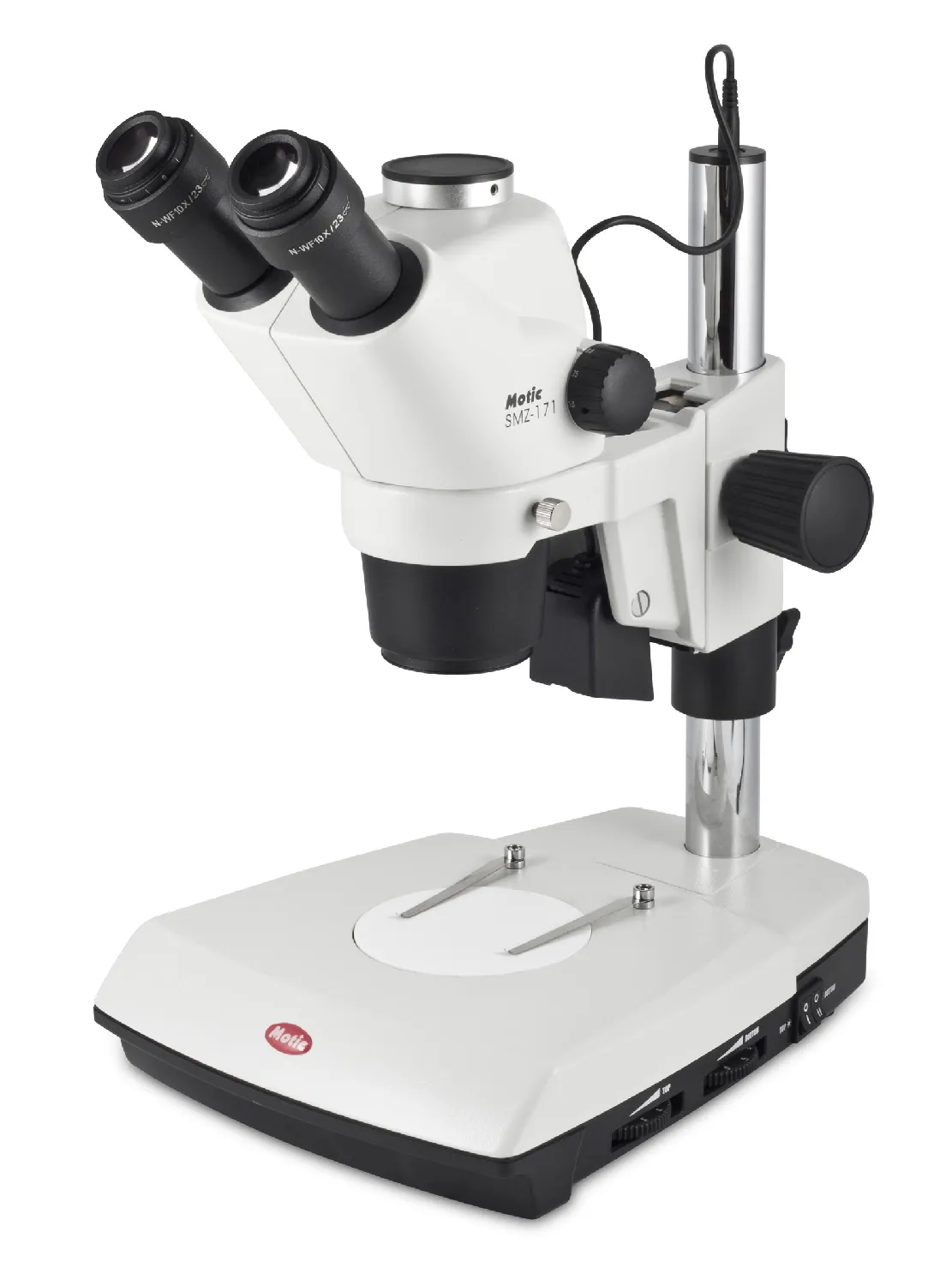

SMZ171 Trinocular Stereomicroscope
It's Greenough optical system comes with a large zoom range of 1:6.7, parfocal at all magnifications which enables precise tridimensional reproduction of the samples throughout the course of the zoom. It has a working distance of 110mm in it's standard configuration. Allows easy access and manipulation of the sample.
SMZ 171
- Greenough optical zoom system
- Trinocular head, 45º viewing angle, 360º rotation
- 100:0 (eyetubes), 0:100 (right eyetube / trinocular tube) optical split.
- Widefield high eyepoint, WF10X/23mm with diopter adjustment
- Zoom ratio 1:6.7, WD=110mm
- Magnification range: 0.75X-5X
- Large working area stand with head holder.
- Coaxial coarse focusing system with tension adjustment
- 3W LED individual bulb for incident / transmitted illumination, adjustable intensity control
- Transmitted with swiveling reflector (sideways illumination)
- Has a source of light guide for flexible illumination
- Black / white and frosted glass stage plates and protective case
The SMZ171 Motic's stereomicroscope introduces improved optical quality and new materials for ESD compatibility and optimal LED illumination. All these characteristics ensure a versatile stereomicroscope for a wide range of biological and material science applications.
It's Greenough optical system comes with a large zoom range of 1:6.7, parfocal at all magnifications which enables precise tridimensional reproduction of the samples throughout the course of the zoom. It has a working distance of 110mm in it's standard configuration. Allows easy access and manipulation of the sample.
SMZ 171
- Greenough optical zoom system
- Trinocular head, 45º viewing angle, 360º rotation
- 100:0 (eyetubes), 0:100 (right eyetube / trinocular tube) optical split.
- Widefield high eyepoint, WF10X/23mm with diopter adjustment
- Zoom ratio 1:6.7, WD=110mm
- Magnification range: 0.75X-5X
- Large working area stand with head holder.
- Coaxial coarse focusing system with tension adjustment
- 3W LED individual bulb for incident / transmitted illumination, adjustable intensity control
- Transmitted with swiveling reflector (sideways illumination)
- Has a source of light guide for flexible illumination
- Black / white and frosted glass stage plates and protective case
SMZ-171-BLED Power Supply (V)
100-240 Pack (u.)
1
SMZ-171-TLED Power Supply (V)
100-240 Pack (u.)
1
Accessories
0.5X C-mount camera adapter for 1/3 Pack (u.)
1
0.63X ESD objective(WD=142.7mm) Pack (u.)
1
0.75X ESD objective(WD=128.6mm) Pack (u.)
1
1.5X ESD objective (WD=56.3mm) Pack (u.)
1
2.0X ESD objective(WD=38.6mm) Pack (u.)
1
