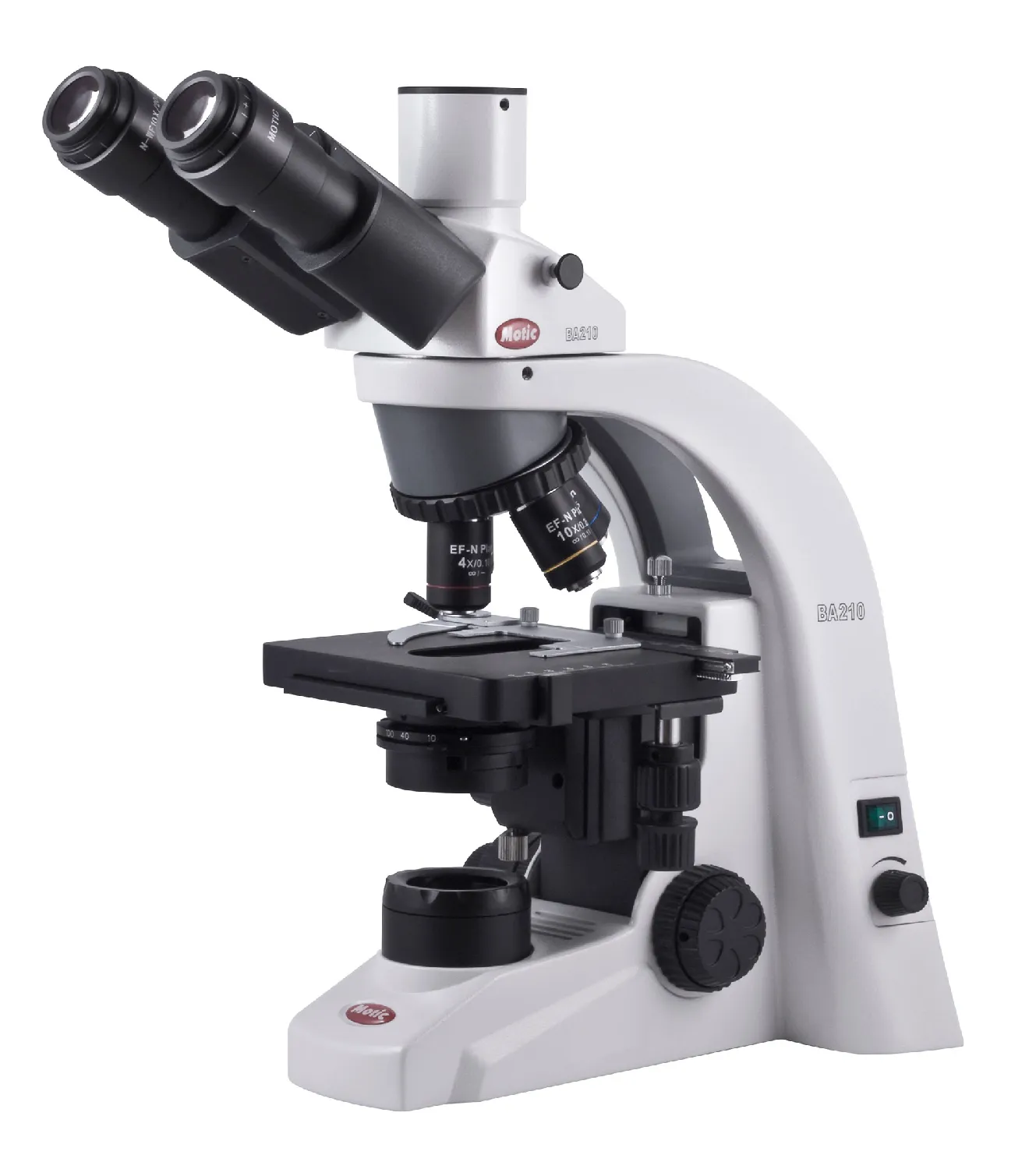

Biological microscope MOTIC BA210 Elite (Basic)
- Widefield high eyepoint eyepieces, N-WF10X/20mm, with diopter adjustment on both eyepieces and rubber eyecups.
- Reversed quadruple turret revolving nosepiece.
- CCIS Plan achromatic objectives EC PL 4X, 10X, 40X S, 100X S-Oil.
- Coaxial coarse and fine focusing system with tension adjusment.
- Built-in low position coaxial rackless mechanical stage (Right hand control).
- Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot.
- Quartz halogen illumination 6V/30W with intensity control.
- 45mm blue filter, immersion oil (5ml), power cord, Allen hexagonal key, thumb screw ,vinyl dust cover.
- Binocular or Trinocular head Siedentopf type, 30° inclined, 360° rotating (Light split 100:0/ 20:80).
- Widefield high eyepoint eyepieces, N-WF10X/20mm, with diopter adjustment on both eyepieces and rubber eyecups.
- Reversed quadruple turret revolving nosepiece.
- CCIS Plan achromatic objectives EC PL 4X, 10X, 40X S, 100X S-Oil.
- Coaxial coarse and fine focusing system with tension adjusment.
- Built-in low position coaxial rackless mechanical stage (Right hand control).
- Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot.
- Quartz halogen illumination 6V/30W with intensity control.
- 45mm blue filter, immersion oil (5ml), power cord, Allen hexagonal key, thumb screw ,vinyl dust cover.
BA210E Trinocular Power supply (V)
100-240 Pack (u.)
1
Accessories
0.5X C-mount camera adapter for 1/3 Pack (u.)
1
LED module 6V/3W 6000ºK +/-300ºK Pack (u.)
1
