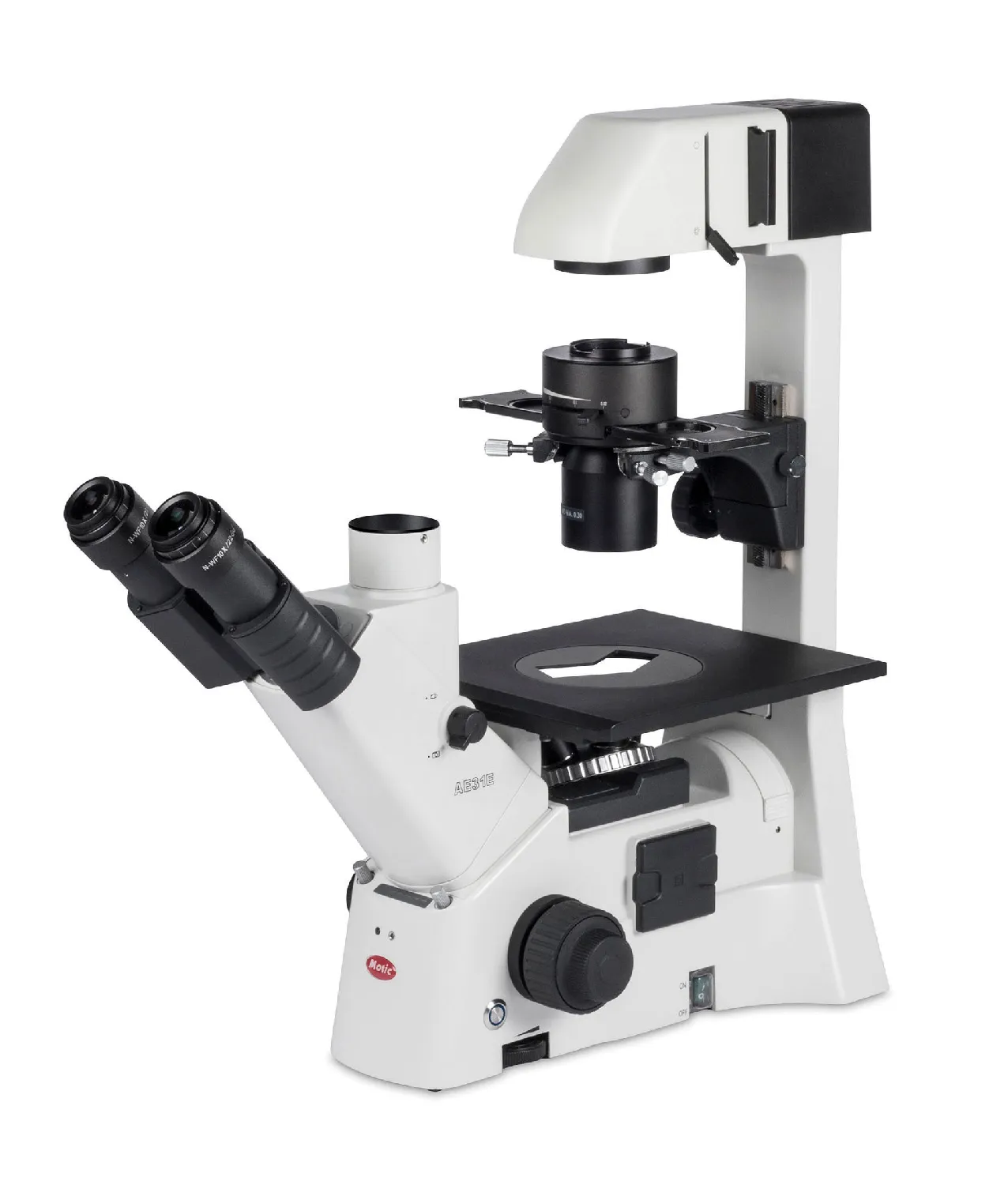

Biological Inverted microscope MOTIC AE31E '
- Binocular or Trinocular head Siedentopf type ,45º inclined (Light split 100:0 / 20:80), rotating eyepiece...
- Widefield high eyepoint eyepieces WFPL10X/22mm with diopter adjustment on both eyepieces and rubber eyecups.
- Side facing quintuple nosepiece.
- CCIS Plan achromatic objective PL 4X.
- CCIS Plan achromatic Phase objective PL Ph 10X, LWD PL Ph 20X, LWD PL Ph 40X.
- Coaxial coarse and fine focusing adjustment.
- Hard coated stage with metal and glass stage inserts.
- ELWD condenser N.A.0.30 (WD 72mm).
- Phase slider Ph1 and brightfield.
- Phase centering telescope.
- Koehler illumination quartz halogen 6V/30W with external lamp house and intensity control.
- 45mm blue, ground glass and green interference filters, Allen hexagonal key, vinyl dust cover and power cord.
- Phase Contrast 10X, 20X, 40X Professional
- Binocular or Trinocular head Siedentopf type ,45º inclined (Light split 100:0 / 20:80), rotating eyepiece...
- Widefield high eyepoint eyepieces WFPL10X/22mm with diopter adjustment on both eyepieces and rubber eyecups.
- Side facing quintuple nosepiece.
- CCIS Plan achromatic objective PL 4X.
- CCIS Plan achromatic Phase objective PL Ph 10X, LWD PL Ph 20X, LWD PL Ph 40X.
- Coaxial coarse and fine focusing adjustment.
- Hard coated stage with metal and glass stage inserts.
- ELWD condenser N.A.0.30 (WD 72mm).
- Phase slider Ph1 and brightfield.
- Phase centering telescope.
- Koehler illumination quartz halogen 6V/30W with external lamp house and intensity control.
- 45mm blue, ground glass and green interference filters, Allen hexagonal key, vinyl dust cover and power cord.
AE31E Binocular Power Supply (V)
100-240 Pack (u.)
1
AE31E Trinocular Power Supply (V)
100-240 Pack (u.)
1
Accessories
0.5X C-mount camera adapter for 1/3 Pack (u.)
1
LED module 6000ºK +/-300ºK Pack (u.)
1
Complete Epi-Fluorescence attachment for AE (Mercury Lamp HBO 100W)- (Required Microscope AE31E) Pack (u.)
1
Complete Epi-Fluorescence attachment for AE (Mercury Lamp HBO 100W)- (Required Microscope AE31E) Pack (u.)
1
DAPI/Hoechst/AlexaFluor 350 filter set Pack (u.)
1
EGFP/FITC/Cy2/AlexaFluor 488 filter set Pack (u.)
1
TRITC/Cy3/TagRFP/AlexaFluor 546 filter set Pack (u.)
1
Texas Red/mCherry/AlexaFluor 594 filter set Pack (u.)
1
