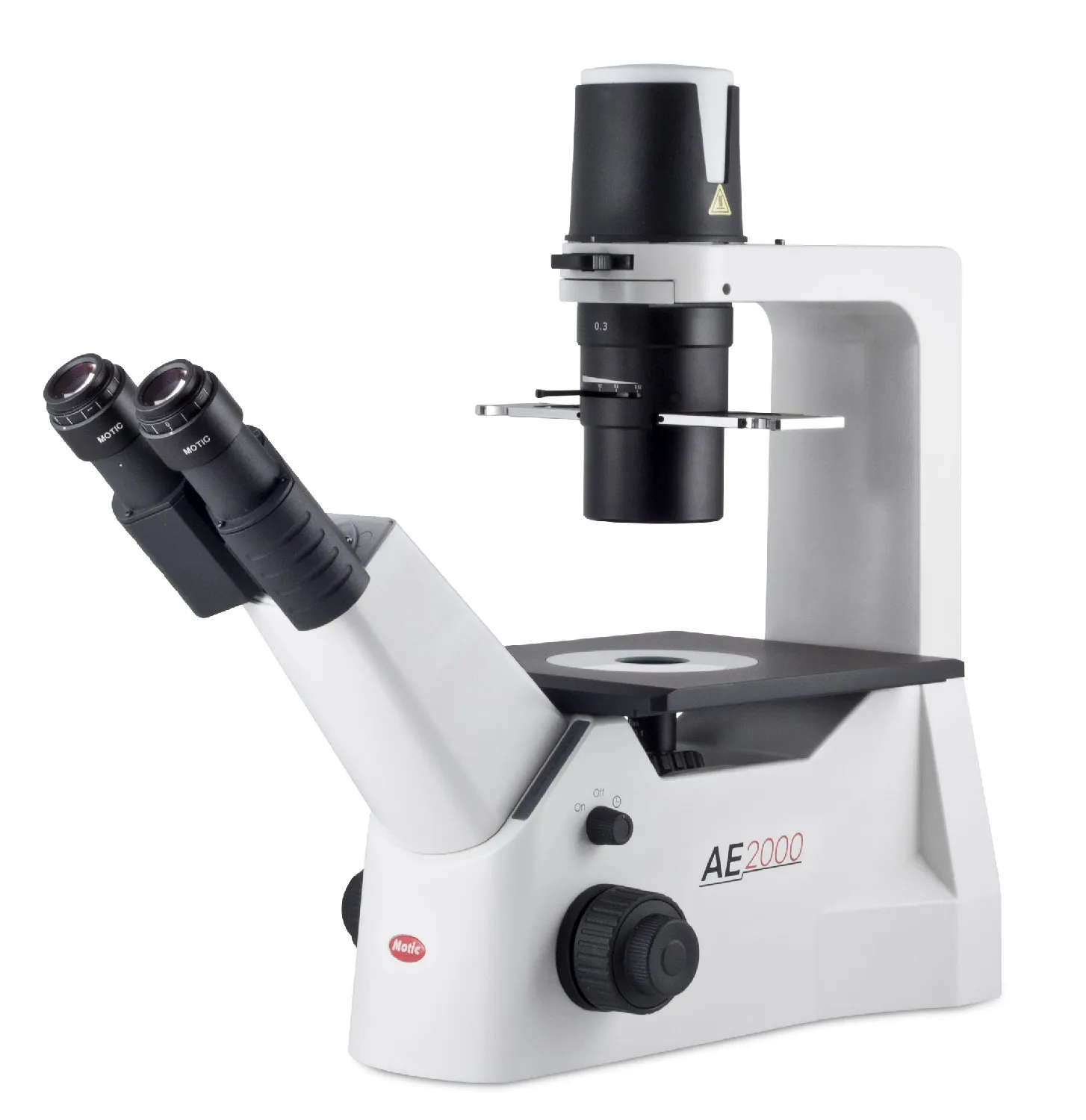

Biological Inverted microscope MOTIC AE2000
- Binocular or Trinocular head Siedentopf type 45° inclined, 360° swiveling (Light split 100:0/20:80).
- Widefield high eyepoint eyepieces N-WF 10X/20mm with diopter adjustment and rubber eyecups.
- Side facing quadruple nosepiece
- CCIS Plan achromatic objectives PL 4X, LWD PL 40X
- CCIS Plan achromatic Phase objectives PL Ph 10X, LWD PL Ph 20X
- Coaxial coarse and fine focusing adjustement.
- Hard coated stage with metal and glass stage inserts
- ELWD condenser N.A. 0.30.
- Phase slider Ph1, BF
- Phase centering telescope.
- Halogen illumination 6V/30W with intensity control and sleeping mode
- Power supply 100-240V (CE).
- 45mm blue, green interference and neutral density filters with filter slider, Allen hexagonal key, vinyl dust cover, power cord.
- Phase contrast 10X and 20X advanced.
- Binocular or Trinocular head Siedentopf type 45° inclined, 360° swiveling (Light split 100:0/20:80).
- Widefield high eyepoint eyepieces N-WF 10X/20mm with diopter adjustment and rubber eyecups.
- Side facing quadruple nosepiece
- CCIS Plan achromatic objectives PL 4X, LWD PL 40X
- CCIS Plan achromatic Phase objectives PL Ph 10X, LWD PL Ph 20X
- Coaxial coarse and fine focusing adjustement.
- Hard coated stage with metal and glass stage inserts
- ELWD condenser N.A. 0.30.
- Phase slider Ph1, BF
- Phase centering telescope.
- Halogen illumination 6V/30W with intensity control and sleeping mode
- Power supply 100-240V (CE).
- 45mm blue, green interference and neutral density filters with filter slider, Allen hexagonal key, vinyl dust cover, power cord.
AE2000 Binocular Power Supply (V)
100-240 Pack (u.)
1
AE2000 Trinocular Power Supply (V)
100-240 Pack (u.)
1
Accessories
0.5X C-mount camera adapter for 1/3 Pack (u.)
1
CCIS Plan achromatic Phase objective LWD PL Ph 40X/0.5 (WD=3.0mm) Ph1 Pack (u.)
1
LED module 6000ºK +/-300ºK Pack (u.)
1
