Accessories for Bandelin ultrasonic homogenisers
Accessories for Bandelin ultrasonic homogenisers
Accessories for Bandelin ultrasonic homogenisers

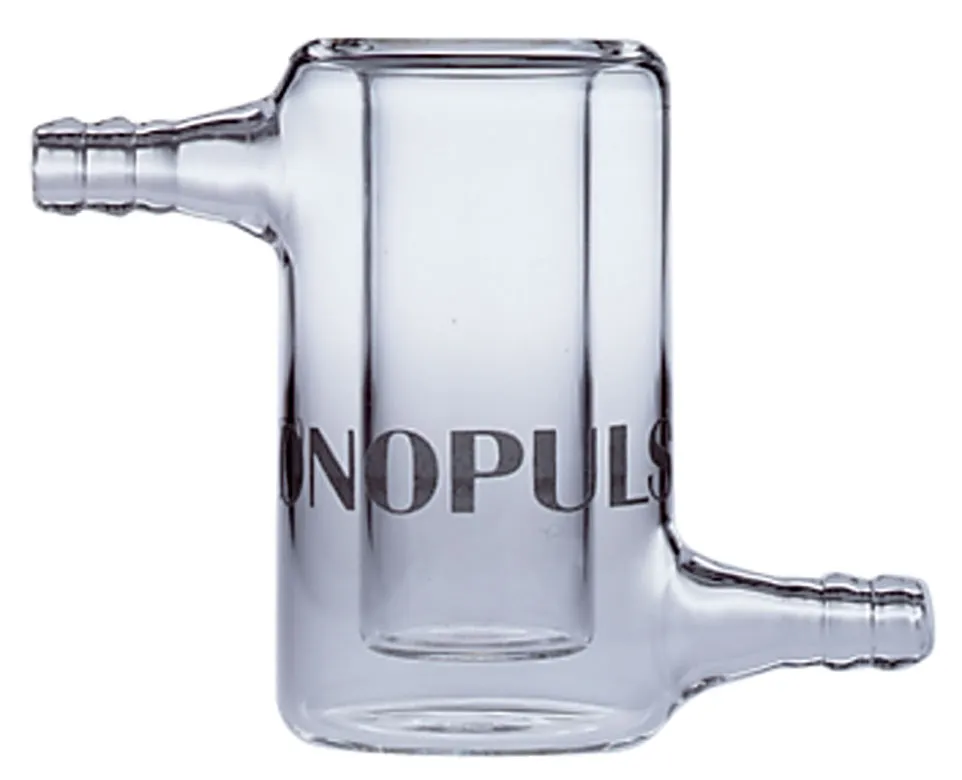

Cooling vessel for sonication of temperature-sensitve samples. Cooling jacket allows tempering with liquid cooling agents during sonication
Type
KG 3 Volume (ml)
15 For models
HD 2070.2/2200.2/4050/4100/4200 Internal diameter (mm)
20 Depth (mm)
65 Pack (u.)
1
KG 3 Volume (ml)
15 For models
HD 2070.2/2200.2/4050/4100/4200 Internal diameter (mm)
20 Depth (mm)
65 Pack (u.)
1
Type
KG 5 Volume (ml)
70 For models
HD 2200.2/4100/4200 Internal diameter (mm)
35 Depth (mm)
95 Pack (u.)
1
KG 5 Volume (ml)
70 For models
HD 2200.2/4100/4200 Internal diameter (mm)
35 Depth (mm)
95 Pack (u.)
1
Rosette cells RZ for homogenous and intense circulation of liquids caused by the shape of the vessel and its 3 sidearms. Glass
Type
RZ 1 Volume (ml)
25 For models
HD 2070.2/2200.2/4050/4100 Internal diameter (mm)
30 Depth (mm)
85 Pack (u.)
1
RZ 1 Volume (ml)
25 For models
HD 2070.2/2200.2/4050/4100 Internal diameter (mm)
30 Depth (mm)
85 Pack (u.)
1
Type
RZ 2 Volume (ml)
40 For models
HD 2070.2/2200.2/4100/4200 Internal diameter (mm)
42 Depth (mm)
100 Pack (u.)
1
RZ 2 Volume (ml)
40 For models
HD 2070.2/2200.2/4100/4200 Internal diameter (mm)
42 Depth (mm)
100 Pack (u.)
1
Type
RZ 3 Volume (ml)
110 For models
HD 2070.2/2200.2/4100/4200 Internal diameter (mm)
50 Depth (mm)
135 Pack (u.)
1
RZ 3 Volume (ml)
110 For models
HD 2070.2/2200.2/4100/4200 Internal diameter (mm)
50 Depth (mm)
135 Pack (u.)
1
Type
RZ 4 Volume (ml)
390 For models
HD 2200.2/4200 Internal diameter (mm)
75 Depth (mm)
202 Pack (u.)
1
RZ 4 Volume (ml)
390 For models
HD 2200.2/4200 Internal diameter (mm)
75 Depth (mm)
202 Pack (u.)
1
Type
RZ 5 Volume (ml)
660 For models
HD 2200.2/4200 Internal diameter (mm)
90 Depth (mm)
243 Pack (u.)
1
RZ 5 Volume (ml)
660 For models
HD 2200.2/4200 Internal diameter (mm)
90 Depth (mm)
243 Pack (u.)
1
Probes made of titanium alloy (Ti6Al4V). Transmit mechanical longitudinal waves into the sample. They are thermoresistant, can be treated in autoclaves and are resistant to corrosive media. Sample volume, Ø of the processing vessel and the required amplitude determine the selection of the unit and the type of probe. The higher the amplitude, the more intense the sonication.
Extended probe VS 70 T: especially used for sonication of ceramic suspensions or when preparing samples for grain size analysis. For HD 2070.2/2200.2
Type
MS 2.0 Tip diameter (mm)
2,0 Tip type
Micro tip Standard/boosterhorns
- For volumes (ml)
0,25 to 20 For models
HD mini20 Pack (u.)
1
MS 2.0 Tip diameter (mm)
2,0 Tip type
Micro tip Standard/boosterhorns
- For volumes (ml)
0,25 to 20 For models
HD mini20 Pack (u.)
1
Type
MS 2.5 Tip diameter (mm)
2,5 Tip type
Micro tip Standard/boosterhorns
- For volumes (ml)
0,5 to 25 For models
HD mini20 Pack (u.)
1
MS 2.5 Tip diameter (mm)
2,5 Tip type
Micro tip Standard/boosterhorns
- For volumes (ml)
0,5 to 25 For models
HD mini20 Pack (u.)
1
Type
MS 72 Tip diameter (mm)
2 Tip type
Micro tip Standard/boosterhorns
SH 213 G For volumes (ml)
1 to 25/ 2 to 30 For models
HD 2070.2/2200.2 Pack (u.)
1
MS 72 Tip diameter (mm)
2 Tip type
Micro tip Standard/boosterhorns
SH 213 G For volumes (ml)
1 to 25/ 2 to 30 For models
HD 2070.2/2200.2 Pack (u.)
1
Type
MS 73 Tip diameter (mm)
3 Tip type
Micro tip Standard/boosterhorns
SH 70 G/ SH 213 G For volumes (ml)
2 to 50/ 5 to 90 For models
HD 2070.2/2200.2 Pack (u.)
1
MS 73 Tip diameter (mm)
3 Tip type
Micro tip Standard/boosterhorns
SH 70 G/ SH 213 G For volumes (ml)
2 to 50/ 5 to 90 For models
HD 2070.2/2200.2 Pack (u.)
1
Type
KE 76 Tip diameter (mm)
6 Tip type
Conical Standard/boosterhorns
SH 70 G/ SH 213 G For volumes (ml)
5 to 100/10 to 350 For models
HD 2070.2/2200.2 Pack (u.)
1
KE 76 Tip diameter (mm)
6 Tip type
Conical Standard/boosterhorns
SH 70 G/ SH 213 G For volumes (ml)
5 to 100/10 to 350 For models
HD 2070.2/2200.2 Pack (u.)
1
Type
VS 70 T Tip diameter (mm)
13 Tip type
Extend probe Standard/boosterhorns
SH 70 G/ SH 213 G For volumes (ml)
10 to 200/20 to 900 For models
HD 2070.2/2200.2 Pack (u.)
1
VS 70 T Tip diameter (mm)
13 Tip type
Extend probe Standard/boosterhorns
SH 70 G/ SH 213 G For volumes (ml)
10 to 200/20 to 900 For models
HD 2070.2/2200.2 Pack (u.)
1
Type
TT 13 Tip diameter (mm)
13 Tip type
Flat titanium Standard/boosterhorns
SH 70 G/ SH 213 G For volumes (ml)
10 to 200/20 to 900 For models
HD 2070.2/2200.2 Pack (u.)
1
TT 13 Tip diameter (mm)
13 Tip type
Flat titanium Standard/boosterhorns
SH 70 G/ SH 213 G For volumes (ml)
10 to 200/20 to 900 For models
HD 2070.2/2200.2 Pack (u.)
1
Type
TT 19 Tip diameter (mm)
19 Tip type
Flat titanium Standard/boosterhorns
SH 219 G/ SH 3419 For volumes (ml)
25 to 900/500 to 1500 For models
HD 2070.2/2200.2 Pack (u.)
1
TT 19 Tip diameter (mm)
19 Tip type
Flat titanium Standard/boosterhorns
SH 219 G/ SH 3419 For volumes (ml)
25 to 900/500 to 1500 For models
HD 2070.2/2200.2 Pack (u.)
1
Type
TS 102 Tip diameter (mm)
2,0 Tip type
Titanium Standard/boosterhorns
UW 50/ SH 100 G For volumes (ml)
0,5 to 20/ 2 to 25 For models
HD 4050/4100 Pack (u.)
1
TS 102 Tip diameter (mm)
2,0 Tip type
Titanium Standard/boosterhorns
UW 50/ SH 100 G For volumes (ml)
0,5 to 20/ 2 to 25 For models
HD 4050/4100 Pack (u.)
1
Type
TS 103 Tip diameter (mm)
3,0 Tip type
Titanium Standard/boosterhorns
UW 50/ SH 100 G/ SH 200 G For volumes (ml)
1 to 25/ 3 to 50/ 5 to 90 For models
HD 4050/4100/4200 Pack (u.)
1
TS 103 Tip diameter (mm)
3,0 Tip type
Titanium Standard/boosterhorns
UW 50/ SH 100 G/ SH 200 G For volumes (ml)
1 to 25/ 3 to 50/ 5 to 90 For models
HD 4050/4100/4200 Pack (u.)
1
Type
TS 104 Tip diameter (mm)
4,5 Tip type
Titanium Standard/boosterhorns
UW 50/ SH 100 G/ SH 200 G For volumes (ml)
3 to 50/ 5 to 75/ 5 to 100 For models
HD 4050/4100/4200 Pack (u.)
1
TS 104 Tip diameter (mm)
4,5 Tip type
Titanium Standard/boosterhorns
UW 50/ SH 100 G/ SH 200 G For volumes (ml)
3 to 50/ 5 to 75/ 5 to 100 For models
HD 4050/4100/4200 Pack (u.)
1
Type
TS 106 Tip diameter (mm)
6 Tip type
Titanium Standard/boosterhorns
UW 50/ SH 100 G/ SH 200 G For volumes (ml)
5 to 75/ 10 to 100/ 10 to 350 For models
HD 4050/4100/4200 Pack (u.)
1
TS 106 Tip diameter (mm)
6 Tip type
Titanium Standard/boosterhorns
UW 50/ SH 100 G/ SH 200 G For volumes (ml)
5 to 75/ 10 to 100/ 10 to 350 For models
HD 4050/4100/4200 Pack (u.)
1
Type
TS 109 Tip diameter (mm)
9 Tip type
Titanium Standard/boosterhorns
UW 50/ SH 100 G/ SH 200 G For volumes (ml)
10 to 100/ 15 to 150/ 10 to 500 For models
HD 4050/4100/4200 Pack (u.)
1
TS 109 Tip diameter (mm)
9 Tip type
Titanium Standard/boosterhorns
UW 50/ SH 100 G/ SH 200 G For volumes (ml)
10 to 100/ 15 to 150/ 10 to 500 For models
HD 4050/4100/4200 Pack (u.)
1
Type
TS 113 Tip diameter (mm)
13 Tip type
Titanium Standard/boosterhorns
SH 100 G/ SH 200 G For volumes (ml)
20 to 200/ 20 to 900 For models
HD 4100/4200 Pack (u.)
1
TS 113 Tip diameter (mm)
13 Tip type
Titanium Standard/boosterhorns
SH 100 G/ SH 200 G For volumes (ml)
20 to 200/ 20 to 900 For models
HD 4100/4200 Pack (u.)
1
Type
TS 216 Tip diameter (mm)
16 Tip type
Titanium Standard/boosterhorns
SH 200 G For volumes (ml)
25 to 900 For models
HD 4200 Pack (u.)
1
TS 216 Tip diameter (mm)
16 Tip type
Titanium Standard/boosterhorns
SH 200 G For volumes (ml)
25 to 900 For models
HD 4200 Pack (u.)
1
Type
TS 219 Tip diameter (mm)
19 Tip type
Titanium Standard/boosterhorns
SH 200 G For volumes (ml)
25 to 900 For models
HD 4200 Pack (u.)
1
TS 219 Tip diameter (mm)
19 Tip type
Titanium Standard/boosterhorns
SH 200 G For volumes (ml)
25 to 900 For models
HD 4200 Pack (u.)
1
Type
TS 225 Tip diameter (mm)
25 Tip type
Titanium Standard/boosterhorns
SH 200 G For volumes (ml)
30 to 1000 For models
HD 4200 Pack (u.)
1
TS 225 Tip diameter (mm)
25 Tip type
Titanium Standard/boosterhorns
SH 200 G For volumes (ml)
30 to 1000 For models
HD 4200 Pack (u.)
1
Type
TS 425 Tip diameter (mm)
25 Tip type
Titanium Standard/boosterhorns
SH 400 G For volumes (ml)
500 to 2000 For models
HD 4400 Pack (u.)
1
TS 425 Tip diameter (mm)
25 Tip type
Titanium Standard/boosterhorns
SH 400 G For volumes (ml)
500 to 2000 For models
HD 4400 Pack (u.)
1
Booster Horns SH: Made of titanium alloy (Ti6Al4V) are furnished with a thread for replaceable probes. With an outer thread to connect various vessels. For type HD2200.2
Cup Booster BR 30 for high-intensive indirect irradiation of smallest and sensitive sample volumes, e. g. cleaning of radioactively contaminated seeds, cell disruption or treatment of pathogens and toxic material. No cross-contamination or sample loss. Flow-through cooling liquid avoids rise of temperature. For type HD 2070.2/2200.2/4100/4200
Type
SH 219 G For models
HD 2200.2 Diameter (mm)
19 Pack (u.)
1
SH 219 G For models
HD 2200.2 Diameter (mm)
19 Pack (u.)
1
Type
BR 30 For models
HD 2070.2/2200.2/4100/4200 Diameter (mm)
- Pack (u.)
1
BR 30 For models
HD 2070.2/2200.2/4100/4200 Diameter (mm)
- Pack (u.)
1
LS 40 noise protection box: reduces the noise level. Inlets at the rear side for gas supply or flow-through irradiation. Removable drip tray made of stainless steel. An anti-slip mat is included. LED interior lighting and acrylic glass window for process monitoring through a push-button on the right-hand side. Door opening angle of 180° for easier sample handling. Sufficient space for direct and indirect applications by using the holding frame HG 40 and further optional accessories.
Type
LS 40 Material
Stainless steel Sound reduction (db-AU)
30 For models
HD 2070.2/2200.2/310/3200/3400/4050/ 4100/4200/4400/5020/5050/5100/5200 Pack (u.)
1
LS 40 Material
Stainless steel Sound reduction (db-AU)
30 For models
HD 2070.2/2200.2/310/3200/3400/4050/ 4100/4200/4400/5020/5050/5100/5200 Pack (u.)
1
Retaining clip HKU 20 for ultrasonic converter. With closing cap VST 20
Type
Retaining clip HKU 20 with closing cap VST 20 Pack (u.)
1
Retaining clip HKU 20 with closing cap VST 20 Pack (u.)
1
Stand HG: with lab clamp, for safe fixing of ultrasonic converter. For types 2000/2000.2/3000/4000
Type
HG 40 For models
HD 2000/2000.2/3000/4000 Pack (u.)
1
HG 40 For models
HD 2000/2000.2/3000/4000 Pack (u.)
1
