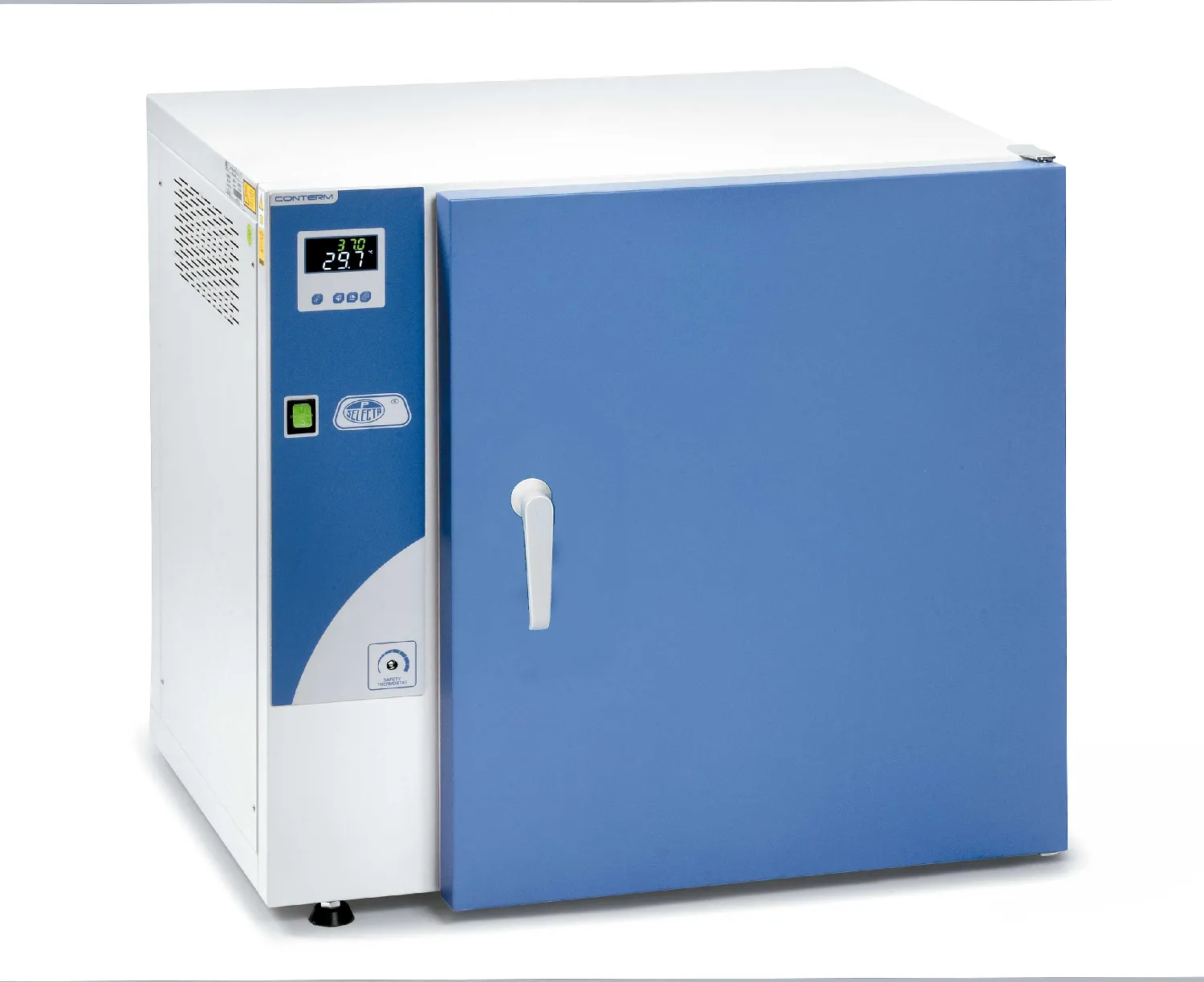

Drying and sterilization ovens Conterm digital
- External case treated with a corrosive resistant epoxy coating.
- Internal part: Easy to clean AISI 304 stainless Steel double chamber, self adjusting door seal and adjustable shelves and guides.
- Control panel: independent insulated control panel to facilitate all types of instruments, controls and regulators.
- Adjustable air inlet.
- Flexible floating door seal, self adjusting that maintains the best possible seal.
Technical properties:
- Excellent thermal qualities of the insulation has the optimum performance according to heater capacity and power consumption, with minimal external temperatura loss.
- Independent heating chamber for the heating elements to obtain an even heat distribution and rapid temperature equilibrium and stabilization.
Technology from J. P. Selecta:
- Locking device in analogue temperature controls.
- Adjustable guide and shelf positions.
- Double seal around the chamber to provide a gentle but effective seal.
- Floating spring door that adjusts the pressure and absorbs the thermal expansion.
- Adjustable door pressure system closure.
- Natural convection.
- Temperature thermostat control with digital thermometer.
- For adjustable temperatures from 40ºC up to 250ºC.
- Stability:± 0.5ºC up to 150ºC.
- Homogeneity: ±1.5ºC up to 150ºC.
- 2 Shelves and 4 shelf guides.
- Power supply: 230 V.
Construction:
- External case treated with a corrosive resistant epoxy coating.
- Internal part: Easy to clean AISI 304 stainless Steel double chamber, self adjusting door seal and adjustable shelves and guides.
- Control panel: independent insulated control panel to facilitate all types of instruments, controls and regulators.
- Adjustable air inlet.
- Flexible floating door seal, self adjusting that maintains the best possible seal.
Technical properties:
- Excellent thermal qualities of the insulation has the optimum performance according to heater capacity and power consumption, with minimal external temperatura loss.
- Independent heating chamber for the heating elements to obtain an even heat distribution and rapid temperature equilibrium and stabilization.
Technology from J. P. Selecta:
- Locking device in analogue temperature controls.
- Adjustable guide and shelf positions.
- Double seal around the chamber to provide a gentle but effective seal.
- Floating spring door that adjusts the pressure and absorbs the thermal expansion.
- Adjustable door pressure system closure.
- Natural convection.
- Temperature thermostat control with digital thermometer.
- For adjustable temperatures from 40ºC up to 250ºC.
- Stability:± 0.5ºC up to 150ºC.
- Homogeneity: ±1.5ºC up to 150ºC.
- 2 Shelves and 4 shelf guides.
- Power supply: 230 V.
Conterm Temperature range (ºC)
40 to 250 Volume (l)
19 External dimensions WxHxD (cm)
600x500x440 Internal dimensions WxHxD (cm)
250x300x250 Weight (Kg)
27 Consumption (W)
580 Pack (u.)
1
Conterm Temperature range (ºC)
40 to 250 Volume (l)
36 External dimensions WxHxD (cm)
650x600x490 Internal dimensions WxHxD (cm)
300x400x300 Weight (Kg)
35 Consumption (W)
870 Pack (u.)
1
Conterm Temperature range (ºC)
40 to 250 Volume (l)
52 External dimensions WxHxD (cm)
820x530x520 Internal dimensions WxHxD (cm)
470x330x330 Weight (Kg)
44 Consumption (W)
980 Pack (u.)
1
Conterm Temperature range (ºC)
40 to 250 Volume (l)
80 External dimensions WxHxD (cm)
740x700x590 Internal dimensions WxHxD (cm)
400x500x400 Weight (Kg)
54 Consumption (W)
1150 Pack (u.)
1
Conterm Temperature range (ºC)
40 to 250 Volume (l)
150 External dimensions WxHxD (cm)
950x700x680 Internal dimensions WxHxD (cm)
600x500x500 Weight (Kg)
76 Consumption (W)
1900 Pack (u.)
1
Accessories
24 hour programmable timer Pack (u.)
1
Spares
Shelf guide For models
19l Pack (u.)
2
Shelf guide For models
36l and 52l Pack (u.)
2
Shelf For models
19l Pack (u.)
1
Shelf For models
36l Pack (u.)
1
Shelf For models
52l Pack (u.)
1
Shelf guide For models
80l Pack (u.)
2
Shelf For models
80l Pack (u.)
1
Shelf guide For models
150l Pack (u.)
2
Shelf For models
150l Pack (u.)
1
