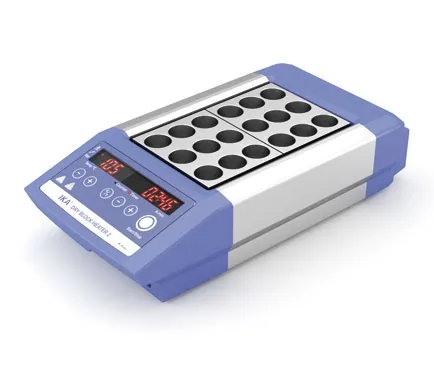

IKA dry block heaters
- Stepless adjustable temperature up to 120 °C.
- Timer: countdown, adjustable from 1 s to 99 h 59 min.
- Counter: display of heating time.
- Highly versatile with a large number of blocks.
- Error Art. No. display.
- Fixed safety circuit.
- Acoustic signal at end of test.
- Heating temperature range: ambient to 120 °C
- Heat control: LED
- Connection for external temperature sensor: DIN 12 878
- Control accuracy with sensor: ±1K
- Temperature constancy in medium: ±1K
- Protection class acc. to DIN EN 60529: IP 21
- Mains supply: 220 to 240 V, 50/60 Hz
Digital block heaters for 1, 2, 3 or 4 aluminium blocks provide precise temperature control in small vessels. Incl. PT 1000 temperature sensor, allow temperature control directly in the sample vessel. It is used with PCR tubes, PCR strips, Greiner tubes, microplates and cuvettes. The block heater is ideal for melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture media tests, coagulation tests, blood-urea-nitrogen determinations and in situ hybridisations.
- Stepless adjustable temperature up to 120 °C.
- Timer: countdown, adjustable from 1 s to 99 h 59 min.
- Counter: display of heating time.
- Highly versatile with a large number of blocks.
- Error Art. No. display.
- Fixed safety circuit.
- Acoustic signal at end of test.
- Heating temperature range: ambient to 120 °C
- Heat control: LED
- Connection for external temperature sensor: DIN 12 878
- Control accuracy with sensor: ±1K
- Temperature constancy in medium: ±1K
- Protection class acc. to DIN EN 60529: IP 21
- Mains supply: 220 to 240 V, 50/60 Hz
Dry block heater 1 Number of blocks
1 Thermal power (W)
150 Set-up plate dimensions (mm)
96x75 Dimensions WxHxD (mm)
151x73x228 Pack (u.)
1
Dry block heater 2 Number of blocks
2 Thermal power (W)
250 Set-up plate dimensions (mm)
96x152 Dimensions WxHxD (mm)
151x73x304 Pack (u.)
1
Dry block heater 3 Number of blocks
3 Thermal power (W)
300 Set-up plate dimensions (mm)
96x227 Dimensions WxHxD (mm)
151x73x380 Pack (u.)
1
Dry block heater 4 Number of blocks
4 Thermal power (W)
375 Set-up plate dimensions (mm)
96x304 Dimensions WxHxD (mm)
151x73x465 Pack (u.)
1
Accessories. (Dimensions WxHxD = 95x51x76mm)
Double block, 1x96 PCR plate wells Pore size (mm)
6,4 For
Tubes of 0,2 ml Number of holes
96 Depth (mm)
15,5 Pack (u.)
1
Single block, used for test tube combination 6mm, 12/13mm, 25mm Pore size (mm)
ø 8,3/13,9/26,2 For
- Number of holes
6/5/3 Depth (mm)
48,4/48,4/48,4 Pack (u.)
1
Single block Pore size (mm)
ø 35 For
Round bottom tubes (35mm) Number of holes
4 Depth (mm)
47,6 Pack (u.)
1
Single block Pore size (mm)
ø 21,7 For
Vials 21mm Number of holes
9 Depth (mm)
45 Pack (u.)
1
Single block, 2x6 cuvettes (12,5mm) Pore size (mm)
- For
- Number of holes
- Depth (mm)
25,4 Pack (u.)
1
