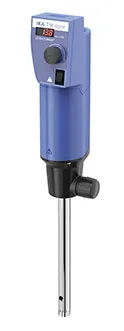

T 18 digital ULTRA-TURRAX®
- Digital speed display.
- Electronic speed control.
- Electronic overload protection.
- St. steel dispersing elements can be cleaned quickly and easily.
- Plastic disposable dispersing elements are available in 2 sizes.
- Error code display.
- Quiet operation.
Motor rating input / output: 500 / 300W
Min. / max. volume (H2O): 100 to 1500ml
Max. viscosity: 5000 mPas
Speed range: 500 to 25000 min-1
Speed display: LED
Noise without element: 73 dB (A)
Dimensions (W x H x D): 100 x 275 x 68 mm
Weight: 2,5 kg
Protection class acc. to DIN EN 60529: IP 20
Mains supply: 200 to 240 V, 50 / 60 Hz
The variety of media to be processed also requires a variety of rotor-stator configurations and seals. In many cases it is neccessary to use subsequently two dispersing elements, for pre-crushing and fine crushing. The plug-in connectors facilitate the exchange of the dispersing elements.
Competitively priced dispersing instrument for volumes from 1 to 1500 ml (H2O) with digital speed display. It offers a wide speed range from 500 to 25000 min-1 that enables users to work at high circumferential speeds even with small rotor Ø. A broad choice of dispersing elements guarantees a wide range of applications.
- Digital speed display.
- Electronic speed control.
- Electronic overload protection.
- St. steel dispersing elements can be cleaned quickly and easily.
- Plastic disposable dispersing elements are available in 2 sizes.
- Error code display.
- Quiet operation.
Motor rating input / output: 500 / 300W
Min. / max. volume (H2O): 100 to 1500ml
Max. viscosity: 5000 mPas
Speed range: 500 to 25000 min-1
Speed display: LED
Noise without element: 73 dB (A)
Dimensions (W x H x D): 100 x 275 x 68 mm
Weight: 2,5 kg
Protection class acc. to DIN EN 60529: IP 20
Mains supply: 200 to 240 V, 50 / 60 Hz
The variety of media to be processed also requires a variety of rotor-stator configurations and seals. In many cases it is neccessary to use subsequently two dispersing elements, for pre-crushing and fine crushing. The plug-in connectors facilitate the exchange of the dispersing elements.
T 18 digital ULTRA-TURRAX® (without dispersing element)
T 18 digital ULTRA-TURRAX® Description
Basic device without accessories Pack (u.)
1
Dispersing elements for T 18 digital ULTRA TURRAX®
S 18 N-10 G Range (ml)
1 to 100 Stator diameter (mm)
10 Rotor diameter (mm)
7,5 Circumferential speed (m/s)
9,4 Maximum/Minimum immersion (mm)
25/70 Final suspension (µm)
10 to 50 Final emulsion (µm)
1 to 10 Pack (u.)
1
S 18 N-19 G Range (ml)
10 to 1500 Stator diameter (mm)
19 Rotor diameter (mm)
12,7 Circumferential speed (m/s)
15,9 Maximum/Minimum immersion (mm)
35/170 Final suspension (µm)
10 to 50 Final emulsion (µm)
1 to 10 Pack (u.)
1
Plastic dispersing element for T 18 digital ULTRA-TURRAX®. Plastic materials used approved by FDA. Autoclavables. T max:100ºC
S 18 D-10-G-KS Range (ml)
10 to 100 Stator diameter (mm)
10 Rotor diameter (mm)
6,75 Circumferential speed (m/s)
8,5 Maximum/Minimum immersion (mm)
15/85 Pack (u.)
10
S 18 D-14-G-KS Range (ml)
10 to 500 Stator diameter (mm)
14 Rotor diameter (mm)
9,5 Circumferential speed (m/s)
12 Maximum/Minimum immersion (mm)
15/85 Pack (u.)
12
