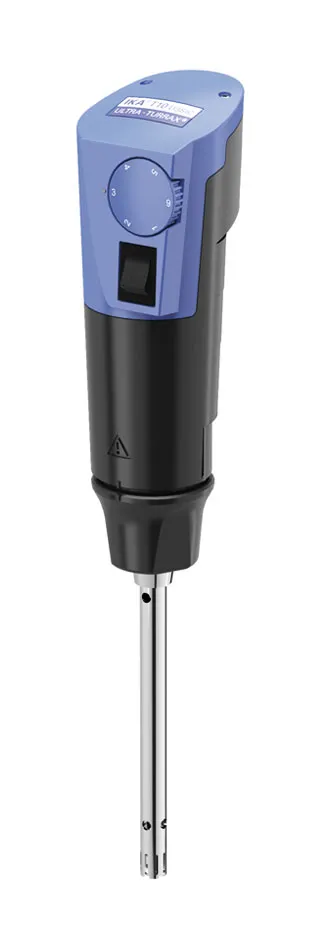

T 10 basic ULTRA-TURRAX®
- Quick-connect coupling for changing dispersing elements easily.
- Ideal for manual operation due to its light weight and ergonomic design.
- Extremely mobile due to direct line power (no transformer required).
- St. steel dispersing elements can be cleaned quickly and easily as they can be dismounted without tools.
- Plastic disposable dispersing elements are available in two sizes, particularly suitable for PCR analysis.
- High performance drive ensures immense speed stability.
- Quiet operation.
Motor rating input / output: 125 / 75 W
Min. / max. volume (H2O): 0,5 to 100 ml
Max. viscosity: 5000 mPas
Speed range: 8000 to 30000 min-1
Speed display: scale
Noise without element: 65 dB (A)
Dimensions (W x H x D): 56 x 178 x 66 mm
Weight: 0,5 kg
Protection class acc. to DIN EN 60529: IP 30
Mains supply: 230 V, 50 / 60 Hz
The variety of media to be processed also requires a variety of rotor-stator configurations and seals. In many cases it is neccessary to use subsequently two dispersing elements, for pre-crushing and fine crushing. The plug-in connectors facilitate the exchange of the dispersing elements.
Small dispersing instrument for volumes from 0,5 to 100ml (H2O). It offers a wide speed range from 8000 to 30000 min-1 that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications.
- Quick-connect coupling for changing dispersing elements easily.
- Ideal for manual operation due to its light weight and ergonomic design.
- Extremely mobile due to direct line power (no transformer required).
- St. steel dispersing elements can be cleaned quickly and easily as they can be dismounted without tools.
- Plastic disposable dispersing elements are available in two sizes, particularly suitable for PCR analysis.
- High performance drive ensures immense speed stability.
- Quiet operation.
Motor rating input / output: 125 / 75 W
Min. / max. volume (H2O): 0,5 to 100 ml
Max. viscosity: 5000 mPas
Speed range: 8000 to 30000 min-1
Speed display: scale
Noise without element: 65 dB (A)
Dimensions (W x H x D): 56 x 178 x 66 mm
Weight: 0,5 kg
Protection class acc. to DIN EN 60529: IP 30
Mains supply: 230 V, 50 / 60 Hz
The variety of media to be processed also requires a variety of rotor-stator configurations and seals. In many cases it is neccessary to use subsequently two dispersing elements, for pre-crushing and fine crushing. The plug-in connectors facilitate the exchange of the dispersing elements.
T 10 basic ULTRA-TURRAX® (Without dispersing element)
T 10 basic ULTRA-TURRAX® Description
Basic device without accessories Pack (u.)
1
Dispersing elements for T 10 basic ULTRA-TURRAX®
S 10 D-7G-KS-65 Range (ml)
1 to 20 Stator diameter (mm)
7 Rotor diameter (mm)
4,8 Circumferential speed (m/s)
7,5 Maximum/Minimum immersion (mm)
20/50 Final suspension (µm)
- Final emulsion (µm)
- Pack (u.)
25
S 10 D-7G-KS-110 Range (ml)
1 to 40 Stator diameter (mm)
7 Rotor diameter (mm)
4,8 Circumferential speed (m/s)
7,5 Maximum/Minimum immersion (mm)
20/90 Final suspension (µm)
- Final emulsion (µm)
- Pack (u.)
25
S 10 N-5G Range (ml)
0,5 to 10 Stator diameter (mm)
5 Rotor diameter (mm)
3,8 Circumferential speed (m/s)
6 Maximum/Minimum immersion (mm)
20/75 Final suspension (µm)
5 to 25 Final emulsion (µm)
1 to 10 Pack (u.)
1
S 10 N-8G Range (ml)
1 to 50 Stator diameter (mm)
8 Rotor diameter (mm)
6,1 Circumferential speed (m/s)
9,6 Maximum/Minimum immersion (mm)
20/95 Final suspension (µm)
5 to 25 Final emulsion (µm)
1 to 10 Pack (u.)
1
S 10 N-10G Range (ml)
1 to 100 Stator diameter (mm)
10 Rotor diameter (mm)
7,6 Circumferential speed (m/s)
11,9 Maximum/Minimum immersion (mm)
20/100 Final suspension (µm)
5 to 25 Final emulsion (µm)
1 to 10 Pack (u.)
1
Accessories for T 10 basic ULTRA-TURRAX®
R 200 Clamp Pack (u.)
1
R 104 Stand Pack (u.)
1
H 44 head clamp Pack (u.)
1
