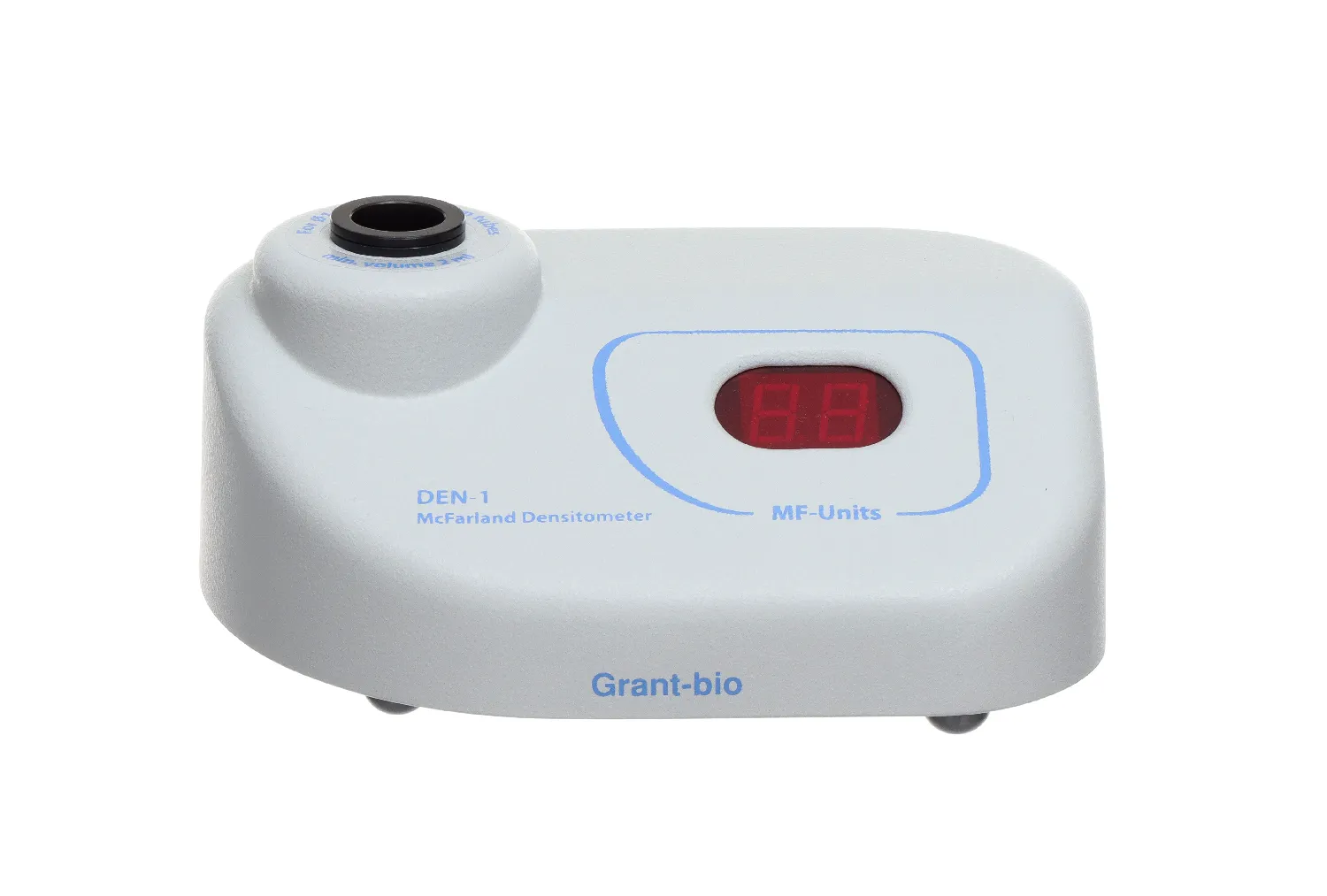

DEN-1 and DEN-1B densitometers
- Readings, shown in McFarland units, are clearly visible on the bright LED display
- Factory calibrated – retains calibration without power supply
- Can be user calibrated with commercial standards or cell suspensions prepared in the laboratory
- Designed for tubes with an outer diameter of 18mm. 16 mm tubes can also be accommodated by using the optional tube adaptor (Art. No.: 0000000D16)
Specifications:
- Temperature range (ºC): 4 - 40
- Wavelength (nm): 565 ± 15
- Display/ display resolution: LED / 0.1 McF
- Independent power supply: 3x AA batteries (only for DEN-1B model)
- Dim. WxHxD (mm): 165x75x115
- Weight (kg): 0.7
- Power consumption (W): 1 (DEN-1) / 0.1 (DEN-1B)
The Grant bio DEN-1 and DEN-1B are a compact benchtop densitometers (suspension turbidity meter) for measuring turbidity of cell suspensions in a variety of life science applications.
- Readings, shown in McFarland units, are clearly visible on the bright LED display
- Factory calibrated – retains calibration without power supply
- Can be user calibrated with commercial standards or cell suspensions prepared in the laboratory
- Designed for tubes with an outer diameter of 18mm. 16 mm tubes can also be accommodated by using the optional tube adaptor (Art. No.: 0000000D16)
Specifications:
- Temperature range (ºC): 4 - 40
- Wavelength (nm): 565 ± 15
- Display/ display resolution: LED / 0.1 McF
- Independent power supply: 3x AA batteries (only for DEN-1B model)
- Dim. WxHxD (mm): 165x75x115
- Weight (kg): 0.7
- Power consumption (W): 1 (DEN-1) / 0.1 (DEN-1B)
DEN-1 Measurement range (McFarland units)
0.3 - 15.0 Precision (%)
±3 Measurement time (s)
1 Sample volume (ml)
>2 Pack (u.)
1
DEN-1B Measurement range (McFarland units)
0.00 - 15.00 Precision (%)
±3 Measurement time (s)
1 Sample volume (ml)
>2 Pack (u.)
1
Accessories
Adaptor replacement for 16 mm outer diameter tubes Pack (u.)
1
Adaptor replacement for 12 mm outer diameter tubes Pack (u.)
1
Set of 4 liquid McFarland Standards 12mm Tube (MCF Stds. 0.0, 0.5, 2.0 and 3.0) for DEN-1 & DEN-1B Pack (u.)
1
Set of 5 liquid McFarland standards in 16 mmØ glass tubes (requires adaptor 0000000D16) Pack (u.)
1
Set of 6 liquid McFarland Standards 18mm Tube (MCF Stds. 0.5, 1.0, 2.0, 3.0, 4.0, 5.0) for DEN-1, DEN-1B Pack (u.)
1
Glass Test Tube 16x100mm for use with DEN-1 & DEN-1B Pack (u.)
100
Glass Test Tube 18x100mm for use with DEN-1 & DEN-1B Pack (u.)
100
