Liquid Nitrogen Dewars - LD Series

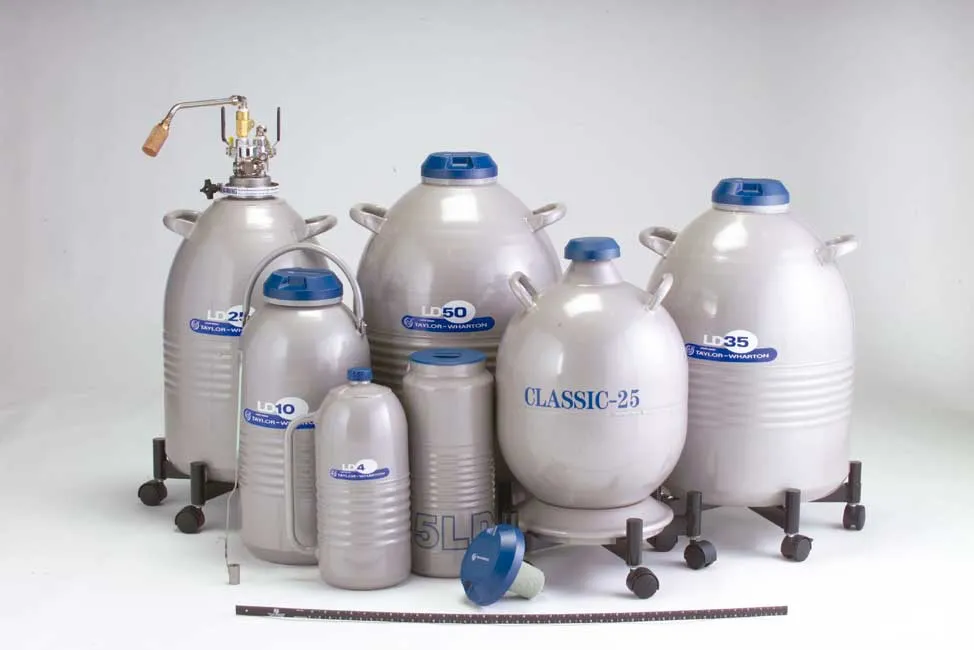

Used to store and distribute small amounts of liquid nitrogen. They are ideal for various applications that call for the use of this medium, for example, in the area of materials testing. This series includes models with capacities ranging from 4 to 50 l. A pitcher-style model (LD4) is available for easy pouring, as well as a beaker style model (LD5) with a wide mouth to make it easier to immerse objects in the liquid nitrogen. LD series dewars feature extremely low evaporation rates and are convenient to use. The 'Classic 25' is a model that has been found to be extremely practical. Because of its spherical shape and low center of gravity, it is easy to handle and is ideal for pouring liquid nitrogen.
LD4 Static holding time (days)
10 Evaporation (l/day)
0.40 Capacity LN2 (l)
4 Weight empty/full (Kg)
3.0/6.2 External diameter (mm)
193 Neck diameter (mm)
30 Height (mm)
432 Pack (u.)
1
LD5 Static holding time (days)
6 Evaporation (l/day)
0.77 Capacity LN2 (l)
5 Weight empty/full (Kg)
3.1/7.2 External diameter (mm)
193 Neck diameter (mm)
142 Height (mm)
445 Pack (u.)
1
LD10 Static holding time (days)
45 Evaporation (l/day)
0.22 Capacity LN2 (l)
10 Weight empty/full (Kg)
6.6/14.7 External diameter (mm)
290 Neck diameter (mm)
51 Height (mm)
597 Pack (u.)
1
LD25 Static holding time (days)
109 Evaporation (l/day)
0.23 Capacity LN2 (l)
25 Weight empty/full (Kg)
10.5/30.8 External diameter (mm)
396 Neck diameter (mm)
64 Height (mm)
655 Pack (u.)
1
Classic25 Static holding time (days)
119 Evaporation (l/day)
0.21 Capacity LN2 (l)
25 Weight empty/full (Kg)
8.6/28.9 External diameter (mm)
394 Neck diameter (mm)
51 Height (mm)
582 Pack (u.)
1
LD35 Static holding time (days)
152 Evaporation (l/day)
0.23 Capacity LN2 (l)
35 Weight empty/full (Kg)
16.0/44.3 External diameter (mm)
475 Neck diameter (mm)
64 Height (mm)
668 Pack (u.)
1
LD50 Static holding time (days)
122 Evaporation (l/day)
0.41 Capacity LN2 (l)
50 Weight empty/full (Kg)
17.6/58.0 External diameter (mm)
475 Neck diameter (mm)
64 Height (mm)
823 Pack (u.)
1
Accesories
Withdrawal device Pack (u.)
1
