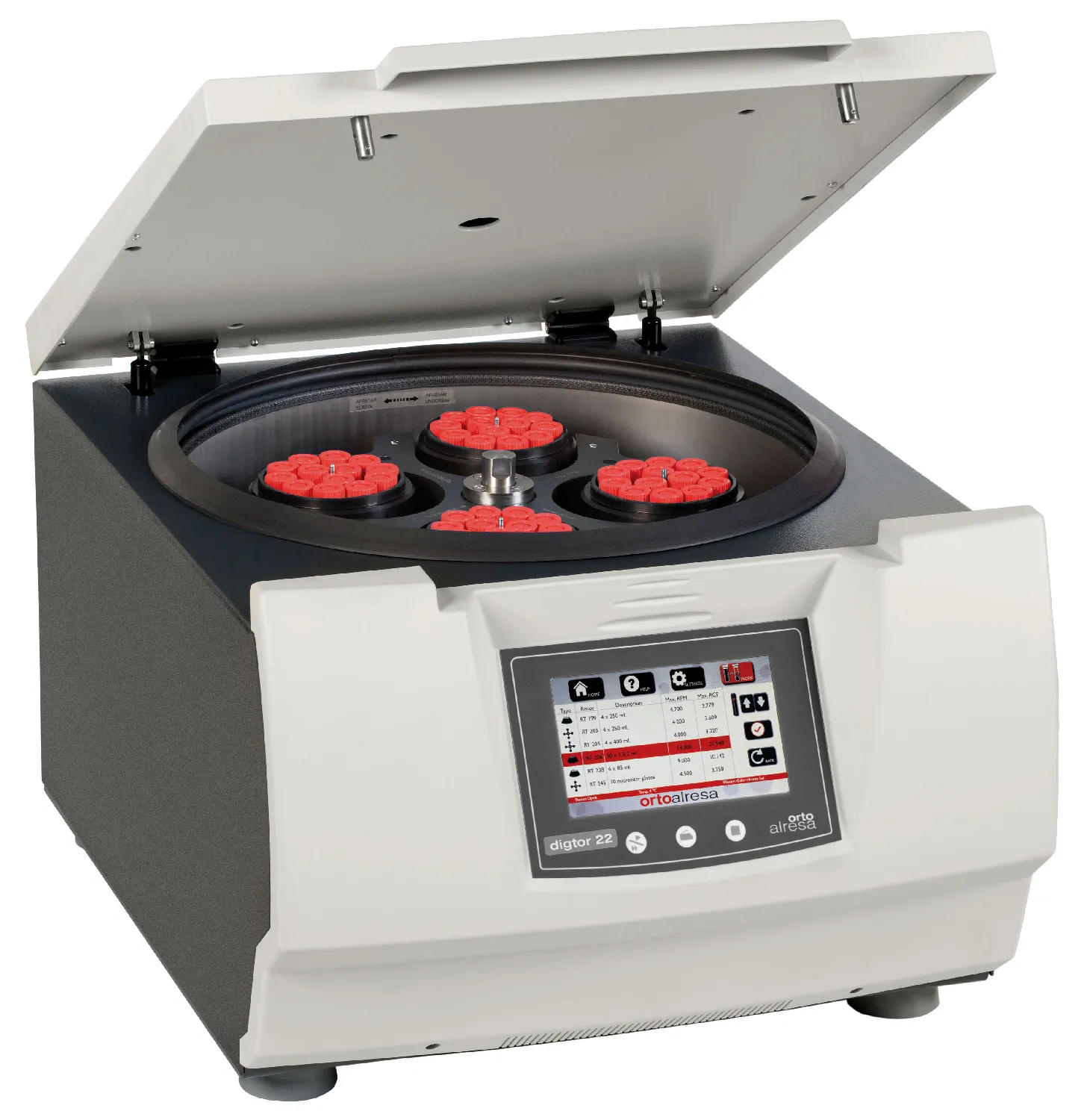

Centrifuge Digtor 22/22R
The centrifuge Digtor 22 is a versatile device, allowing be present on routine labs, research, biotechnology, quality control, hospitals, etc. It is provided of several advantages as the incorporation of a TFT touch screen allowing operator the highest autonomy, controlling the separation, as well as a save energy system selectable. Always shown on screen real values of RCF, based on accessories selection, automatically, no data introduction is required. Accessories for bio containment.
The centrifuge Digtor 22 is a versatile device, allowing be present on routine labs, research, biotechnology, quality control, hospitals, etc. It is provided of several advantages as the incorporation of a TFT touch screen allowing operator the highest autonomy, controlling the separation, as well as a save energy system selectable. Always shown on screen real values of RCF, based on accessories selection, automatically, no data introduction is required. Accessories for bio containment.
Centrifuge (rotor not included)
Model
Digtor 22 Refrigeration
No Dimensions WxHxD (mm)
530x400x640 Weight (Kg)
71 Voltage (V)
220-230 Frequency (Hz)
50-60 Consumption (W)
1020 Pack (u.)
1
Digtor 22 Refrigeration
No Dimensions WxHxD (mm)
530x400x640 Weight (Kg)
71 Voltage (V)
220-230 Frequency (Hz)
50-60 Consumption (W)
1020 Pack (u.)
1
Model
Digtor 22 R Refrigeration
Yes Dimensions WxHxD (mm)
720x400x780 Weight (Kg)
113 Voltage (V)
220-230 Frequency (Hz)
50-60 Consumption (W)
1050 Pack (u.)
1
Digtor 22 R Refrigeration
Yes Dimensions WxHxD (mm)
720x400x780 Weight (Kg)
113 Voltage (V)
220-230 Frequency (Hz)
50-60 Consumption (W)
1050 Pack (u.)
1
Rotor RT277
Model
RT277 Rotor type
Swingout Capacity
4x750ml Maximum speed (rpm)
3700 Radius (mm)
204 Maximum RCF xg
3122 Minimum temperature at maximum speed (ºC)
0 Pack (u.)
1
RT277 Rotor type
Swingout Capacity
4x750ml Maximum speed (rpm)
3700 Radius (mm)
204 Maximum RCF xg
3122 Minimum temperature at maximum speed (ºC)
0 Pack (u.)
1
Accessories for rotor RT277
Description
Adapters for 4x750mL round bottom tubes cap Diameter x high (mm) (approximate)
96x130 Pack (u.)
4
Adapters for 4x750mL round bottom tubes cap Diameter x high (mm) (approximate)
96x130 Pack (u.)
4
Description
Adapters for 4x500mL tubes Diameter x high (mm) (approximate)
90x120 Pack (u.)
4
Adapters for 4x500mL tubes Diameter x high (mm) (approximate)
90x120 Pack (u.)
4
Description
Adapters for 4x250mL round bottom tubes cap Diameter x high (mm) (approximate)
60x135 or 60x120 Pack (u.)
4
Adapters for 4x250mL round bottom tubes cap Diameter x high (mm) (approximate)
60x135 or 60x120 Pack (u.)
4
Description
Adapter for 4x125 mL flat bottom tubes cap (hs) // Adapter for 4 x125 or 4x100 mL round bottom tubes // Adapter for 4x100 mL round bottom tubes cap Diameter x high (mm) (approximate)
48x108 // 48x100 // 48x113 Pack (u.)
4
Adapter for 4x125 mL flat bottom tubes cap (hs) // Adapter for 4 x125 or 4x100 mL round bottom tubes // Adapter for 4x100 mL round bottom tubes cap Diameter x high (mm) (approximate)
48x108 // 48x100 // 48x113 Pack (u.)
4
Description
Adapters for 16x50 mL round bottom tubes cap Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Adapters for 16x50 mL round bottom tubes cap Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Description
Adapter for 20x50 mL conical tubes cap Adapter for 20x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
4
Adapter for 20x50 mL conical tubes cap Adapter for 20x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
4
Description
Adapters for 24x30 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Adapters for 24x30 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Description
Adapters for 52x15 mL conical tubes cap Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Adapters for 52x15 mL conical tubes cap Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Description
Adapters for 32x15 mL blood tubes Diameter x high (mm) (approximate)
16x132 Pack (u.)
4
Adapters for 32x15 mL blood tubes Diameter x high (mm) (approximate)
16x132 Pack (u.)
4
Description
Adapters for 100x5 mL or 100x10 mL tubes Diameter x high (mm) (approximate)
13x75 o 13x100 Pack (u.)
4
Adapters for 100x5 mL or 100x10 mL tubes Diameter x high (mm) (approximate)
13x75 o 13x100 Pack (u.)
4
Description
Adapters for 144 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
4
Adapters for 144 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
4
Description
12 microtiter plates // 8 microtiter plates // 8 cell culture plates // 4 microtiter plates Diameter x high (mm) (approximate)
128x86x15 mm // 128x86x21 mm // 128x86x22 mm // 128x86x45 mm Pack (u.)
4
12 microtiter plates // 8 microtiter plates // 8 cell culture plates // 4 microtiter plates Diameter x high (mm) (approximate)
128x86x15 mm // 128x86x21 mm // 128x86x22 mm // 128x86x45 mm Pack (u.)
4
Description
Adapters for 72 microtubes 1.5-2 mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Adapters for 72 microtubes 1.5-2 mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Description
Adapter for 12x80-85 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Adapter for 12x80-85 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Description
750 mL lids beakers Diameter x high (mm) (approximate)
- Pack (u.)
4
750 mL lids beakers Diameter x high (mm) (approximate)
- Pack (u.)
4
Description
Adapters for 8x80mL round bottom tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Adapters for 8x80mL round bottom tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Description
Adapters for 72 microtubes 0.5-0.6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Adapters for 72 microtubes 0.5-0.6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Description
Adapters for 72 microtubes 0.2-0.4 mL Diameter x high (mm) (approximate)
6x45 Pack (u.)
4
Adapters for 72 microtubes 0.2-0.4 mL Diameter x high (mm) (approximate)
6x45 Pack (u.)
4
Rotor RT278. Rotor with capacity for 4 flat bottom, cap tubes 250 mL (Ø62x135 mm or Ø62x120 mm)
Model
RT278 Rotor type
Swingout Capacity
4x250ml Maximum speed (rpm)
4200 Radius (mm)
202 Maximum RCF xg
3984 Minimum temperature at maximum speed (ºC)
1 Pack (u.)
1
RT278 Rotor type
Swingout Capacity
4x250ml Maximum speed (rpm)
4200 Radius (mm)
202 Maximum RCF xg
3984 Minimum temperature at maximum speed (ºC)
1 Pack (u.)
1
Accessories for rotor RT278
Description
Adapter for 4x125 and 4x100 mL round bottom tubes // Adapter for 4x100 mL round bottom tubes cap Diameter x high (mm) (approximate)
48x100 // 48x113 Pack (u.)
4
Adapter for 4x125 and 4x100 mL round bottom tubes // Adapter for 4x100 mL round bottom tubes cap Diameter x high (mm) (approximate)
48x100 // 48x113 Pack (u.)
4
Description
Adapters for 4x250mL round bottom tubes cap // Adapters for 4x200mL round bottom tubes cap // Adapters for 4x150mL round bottom tubes cap Diameter x high (mm) (approximate)
62x120 or 60x135 // 60x120 // 60x130 Pack (u.)
4
Adapters for 4x250mL round bottom tubes cap // Adapters for 4x200mL round bottom tubes cap // Adapters for 4x150mL round bottom tubes cap Diameter x high (mm) (approximate)
62x120 or 60x135 // 60x120 // 60x130 Pack (u.)
4
Description
Adapters for 4x80-85mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Adapters for 4x80-85mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Description
Adapters for 4x50mL round bottom tubes cap Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Adapters for 4x50mL round bottom tubes cap Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Description
Adapters for 4x50 mL conical tubes with or without skirt // Adapter for 4x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
4
Adapters for 4x50 mL conical tubes with or without skirt // Adapter for 4x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
4
Description
Adapters for 12x30mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Adapters for 12x30mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Description
Adapters for 28x15mL round bottom tubes cap // Adapters for 28x12mL round bottom tubes cap // Adapters for 28x10mL blood sample tubes // Adapters for 28x10mL conical tubes // Adapters for 28x10mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 // 16x80 Pack (u.)
4
Adapters for 28x15mL round bottom tubes cap // Adapters for 28x12mL round bottom tubes cap // Adapters for 28x10mL blood sample tubes // Adapters for 28x10mL conical tubes // Adapters for 28x10mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 // 16x80 Pack (u.)
4
Description
Adapters for 20x15mL conical tubes cap Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Adapters for 20x15mL conical tubes cap Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Description
Adapters for 40x5mL or 40x10mL round bottom tubes Diameter x high (mm) (approximate)
13x75 or 13x100 Pack (u.)
4
Adapters for 40x5mL or 40x10mL round bottom tubes Diameter x high (mm) (approximate)
13x75 or 13x100 Pack (u.)
4
Description
Adapters for 28x5mL or 28x7/10mL blood tubes Diameter x high (mm) (approximate)
13x82 o 13x107 Pack (u.)
4
Adapters for 28x5mL or 28x7/10mL blood tubes Diameter x high (mm) (approximate)
13x82 o 13x107 Pack (u.)
4
Description
Adapters for 52 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
4
Adapters for 52 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
4
Description
Adapters for 24 microtubes 1,5-2mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Adapters for 24 microtubes 1,5-2mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Description
Adapters for 4x80mL round bottom tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Adapters for 4x80mL round bottom tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Description
Adapters for 24 microtubes 0,5-0,6mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Adapters for 24 microtubes 0,5-0,6mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Description
Adapters for 24 microtubes 0,2-0,4mL Diameter x high (mm) (approximate)
6x45 Pack (u.)
4
Adapters for 24 microtubes 0,2-0,4mL Diameter x high (mm) (approximate)
6x45 Pack (u.)
4
Rotor RT279. Rotor with capacity for round bottom tubes 5 mL (Ø13x75 mm) and blood sample tubes 5 mL (Ø13x82 mm)
Model
RT279 Rotor type
Swingout Capacity
104x5ml Maximum speed (rpm)
3800 Radius (mm)
185 Maximum RCF xg
2987 Minimum temperature at maximum speed (ºC)
0 Pack (u.)
1
RT279 Rotor type
Swingout Capacity
104x5ml Maximum speed (rpm)
3800 Radius (mm)
185 Maximum RCF xg
2987 Minimum temperature at maximum speed (ºC)
0 Pack (u.)
1
Accessories for rotor RT279
Description
Adapters for 104x7/10 mL blood tubes // 104x10 mL round bottom tubes Diameter x high (mm) (approximate)
13x107 // 13x100 Pack (u.)
4
Adapters for 104x7/10 mL blood tubes // 104x10 mL round bottom tubes Diameter x high (mm) (approximate)
13x107 // 13x100 Pack (u.)
4
Rotor RT280
Model
RT280 Rotor type
Angular Capacity
8x50ml Maximum speed (rpm)
6000 Radius (mm)
149 Maximum RCF xg
5997 Minimum temperature at maximum speed (ºC)
0 Pack (u.)
1
RT280 Rotor type
Angular Capacity
8x50ml Maximum speed (rpm)
6000 Radius (mm)
149 Maximum RCF xg
5997 Minimum temperature at maximum speed (ºC)
0 Pack (u.)
1
Accessories for rotor RT280
Description
Adapters for 8x50mL round bottom tubes Diameter x high (mm) (approximate)
34x110 Pack (u.)
8
Adapters for 8x50mL round bottom tubes Diameter x high (mm) (approximate)
34x110 Pack (u.)
8
Description
Adapters for 8 conical tubes cap 50 mL Adapters for 8 round bottom tubes cap (hs) 50 mL Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
8
Adapters for 8 conical tubes cap 50 mL Adapters for 8 round bottom tubes cap (hs) 50 mL Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
8
Description
dapter for 8 round bottom tubes cap (hs) 30 mL Diameter x high (mm) (approximate)
25x98 Pack (u.)
8
dapter for 8 round bottom tubes cap (hs) 30 mL Diameter x high (mm) (approximate)
25x98 Pack (u.)
8
Description
Adapters for 8 round bottom tubes cap 15 mL // Adapters for 8 round bottom tubes cap 12 mL // Adapters for 8 blood sample tubes 10 mL // Adapters for 8 conical tubes 10 mL Adapter for 8 round bottom tubes cap (hs) 10 mL Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 // 16x80 Pack (u.)
8
Adapters for 8 round bottom tubes cap 15 mL // Adapters for 8 round bottom tubes cap 12 mL // Adapters for 8 blood sample tubes 10 mL // Adapters for 8 conical tubes 10 mL Adapter for 8 round bottom tubes cap (hs) 10 mL Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 // 16x80 Pack (u.)
8
Description
Adapters for 24x5mL or 24x10mL round bottom tubes Diameter x high (mm) (approximate)
13x75 or 13x100 Pack (u.)
8
Adapters for 24x5mL or 24x10mL round bottom tubes Diameter x high (mm) (approximate)
13x75 or 13x100 Pack (u.)
8
Description
Adapters for 8x5mL, 8x7/10mL blood sample tubes Diameter x high (mm) (approximate)
13x82 o 13x107 Pack (u.)
8
Adapters for 8x5mL, 8x7/10mL blood sample tubes Diameter x high (mm) (approximate)
13x82 o 13x107 Pack (u.)
8
Description
Adapters for 24 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
8
Adapters for 24 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
8
Description
Adapters for 1,5-2mL mirotubes Diameter x high (mm) (approximate)
11x42 Pack (u.)
8
Adapters for 1,5-2mL mirotubes Diameter x high (mm) (approximate)
11x42 Pack (u.)
8
Description
Adapters for 0,5-0,6 mL microtubes Diameter x high (mm) (approximate)
8x30 Pack (u.)
8
Adapters for 0,5-0,6 mL microtubes Diameter x high (mm) (approximate)
8x30 Pack (u.)
8
Description
Adapters for 24 microtubes 0.2-0.4 mL // Adapters for 24 microtubes 0.2 mL Diameter x high (mm) (approximate)
6x45 // 6x21 Pack (u.)
8
Adapters for 24 microtubes 0.2-0.4 mL // Adapters for 24 microtubes 0.2 mL Diameter x high (mm) (approximate)
6x45 // 6x21 Pack (u.)
8
Rotor RT281. Rotor with capacity for 4 flat bottom, cap (hs) tubes 125 mL (Ø48x108 mm)
Model
RT281 Rotor type
Angular Capacity
4x100ml Maximum speed (rpm)
5600 Radius (mm)
138 Maximum RCF xg
4838 Minimum temperature at maximum speed (ºC)
-1 Pack (u.)
1
RT281 Rotor type
Angular Capacity
4x100ml Maximum speed (rpm)
5600 Radius (mm)
138 Maximum RCF xg
4838 Minimum temperature at maximum speed (ºC)
-1 Pack (u.)
1
Accessories for rotor RT281
Description
Capacity for 4x100ml tubes Diameter x high (mm) (approximate)
48x100 / 48x113 Pack (u.)
4
Capacity for 4x100ml tubes Diameter x high (mm) (approximate)
48x100 / 48x113 Pack (u.)
4
Description
Adapter for 4x80-85 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Adapter for 4x80-85 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Description
Adapters for 4x80 mL round bottom tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Adapters for 4x80 mL round bottom tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Description
Adapter for 4 round bottom tubes cap 50 mL Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Adapter for 4 round bottom tubes cap 50 mL Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Description
Adapter for 4 conical tubes cap 50 mL Adapter for 4 round bottom tubes cap (hs) 50 mL Diameter x high (mm) (approximate)
29x117 29x108 Pack (u.)
4
Adapter for 4 conical tubes cap 50 mL Adapter for 4 round bottom tubes cap (hs) 50 mL Diameter x high (mm) (approximate)
29x117 29x108 Pack (u.)
4
Description
Adapters for 4 tubes of 30 ml and 30 ml (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Adapters for 4 tubes of 30 ml and 30 ml (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Description
Adapter for 16 round bottom tubes cap 15 mL // Adapter for 16x12 mL round bottom tubes cap// Adapter for 16x10 mL blood sample tubes // Adapter for 16x10 mL conical tubes Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 Pack (u.)
4
Adapter for 16 round bottom tubes cap 15 mL // Adapter for 16x12 mL round bottom tubes cap// Adapter for 16x10 mL blood sample tubes // Adapter for 16x10 mL conical tubes Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 Pack (u.)
4
Description
Adapter for 4 conical tubes cap 15 mL Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Adapter for 4 conical tubes cap 15 mL Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Description
Adapters for 20 microtubes 1,5-2ml Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Adapters for 20 microtubes 1,5-2ml Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Description
Adapter for 20 blood sample tubes 5 mL Adapter for 20 blood sample tubes 7/10 mL Adapter for 20 round bottom tubes 5 mL Adapter for 20 round bottom tubes 10 mL Diameter x high (mm) (approximate)
13x82 13x107 13x75 13x100 Pack (u.)
4
Adapter for 20 blood sample tubes 5 mL Adapter for 20 blood sample tubes 7/10 mL Adapter for 20 round bottom tubes 5 mL Adapter for 20 round bottom tubes 10 mL Diameter x high (mm) (approximate)
13x82 13x107 13x75 13x100 Pack (u.)
4
Description
Adapters for 20 microtubes 0,5-0,6ml Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Adapters for 20 microtubes 0,5-0,6ml Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Description
Adapters for 20 microtubes 0,2-0,4ml Diameter x high (mm) (approximate)
6x45 / 6x21 Pack (u.)
4
Adapters for 20 microtubes 0,2-0,4ml Diameter x high (mm) (approximate)
6x45 / 6x21 Pack (u.)
4
Rotor RT282
Model
RT282 Rotor type
Angular Capacity
4x250ml Maximum speed (rpm)
4700 Radius (mm)
153 Maximum RCF xg
3779 Minimum temperature at maximum speed (ºC)
-4 Pack (u.)
1
RT282 Rotor type
Angular Capacity
4x250ml Maximum speed (rpm)
4700 Radius (mm)
153 Maximum RCF xg
3779 Minimum temperature at maximum speed (ºC)
-4 Pack (u.)
1
Accessories for Rotor RT282
Description
Adapter for 4x125 and 4x100 mL round bottom tubes // Adapter for 4x100 mL round bottom tubes cap Diameter x high (mm) (approximate)
48x100 // 48x113 Pack (u.)
4
Adapter for 4x125 and 4x100 mL round bottom tubes // Adapter for 4x100 mL round bottom tubes cap Diameter x high (mm) (approximate)
48x100 // 48x113 Pack (u.)
4
Description
Adapters for 4x250mL round bottom tubes cap // Adapters for 4x200mL round bottom tubes cap // Adapters for 4x150mL round bottom tubes cap Diameter x high (mm) (approximate)
62x120 or 60x135 // 60x120 // 60x130 Pack (u.)
4
Adapters for 4x250mL round bottom tubes cap // Adapters for 4x200mL round bottom tubes cap // Adapters for 4x150mL round bottom tubes cap Diameter x high (mm) (approximate)
62x120 or 60x135 // 60x120 // 60x130 Pack (u.)
4
Description
Adapters for 4x80-85mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Adapters for 4x80-85mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Description
Adapters for 4x50mL round bottom tubes cap Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Adapters for 4x50mL round bottom tubes cap Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Description
Adapters for 4x50 mL conical tubes with or without skirt // Adapter for 4x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
4
Adapters for 4x50 mL conical tubes with or without skirt // Adapter for 4x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
4
Description
Adapters for 12x30mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Adapters for 12x30mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Description
Adapters for 28x15mL round bottom tubes cap // Adapters for 28x12mL round bottom tubes cap // Adapters for 28x10mL blood sample tubes // Adapters for 28x10mL conical tubes // Adapters for 28x10mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 // 16x80 Pack (u.)
4
Adapters for 28x15mL round bottom tubes cap // Adapters for 28x12mL round bottom tubes cap // Adapters for 28x10mL blood sample tubes // Adapters for 28x10mL conical tubes // Adapters for 28x10mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 // 16x80 Pack (u.)
4
Description
Adapters for 20x15mL conical tubes cap Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Adapters for 20x15mL conical tubes cap Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Description
Adapters for 40x5mL or 40x10mL round bottom tubes Diameter x high (mm) (approximate)
13x75 or 13x100 Pack (u.)
4
Adapters for 40x5mL or 40x10mL round bottom tubes Diameter x high (mm) (approximate)
13x75 or 13x100 Pack (u.)
4
Description
Adapters for 28x5mL or 28x7/10mL blood tubes Diameter x high (mm) (approximate)
13x82 o 13x107 Pack (u.)
4
Adapters for 28x5mL or 28x7/10mL blood tubes Diameter x high (mm) (approximate)
13x82 o 13x107 Pack (u.)
4
Description
Adapters for 52 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
4
Adapters for 52 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
4
Description
Adapters for 24 microtubes 1,5-2mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Adapters for 24 microtubes 1,5-2mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Description
Adapters for 4x80mL round bottom tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Adapters for 4x80mL round bottom tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Description
Adapters for 24 microtubes 0,5-0,6mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Adapters for 24 microtubes 0,5-0,6mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Description
Adapters for 24 microtubes 0,2-0,4mL Diameter x high (mm) (approximate)
6x45 Pack (u.)
4
Adapters for 24 microtubes 0,2-0,4mL Diameter x high (mm) (approximate)
6x45 Pack (u.)
4
Rotor RT283. Rotor with capacity for 4 flat bottom, cap tubes 270 mL (Ø96x130 mm)
Model
RT283 Rotor type
Oscillating Capacity
4 blood bags Maximum speed (rpm)
3700 Radius (mm)
204 Maximum RCF xg
3122 Minimum temperature at maximum speed (ºC)
0 Pack (u.)
1
RT283 Rotor type
Oscillating Capacity
4 blood bags Maximum speed (rpm)
3700 Radius (mm)
204 Maximum RCF xg
3122 Minimum temperature at maximum speed (ºC)
0 Pack (u.)
1
Accessories for Rotor RT283
Description
Adapters for 4x750mL round bottom tubes cap Diameter x high (mm) (approximate)
96x130 Pack (u.)
4
Adapters for 4x750mL round bottom tubes cap Diameter x high (mm) (approximate)
96x130 Pack (u.)
4
Description
Adapters for 4x500mL tubes Diameter x high (mm) (approximate)
90x120 Pack (u.)
4
Adapters for 4x500mL tubes Diameter x high (mm) (approximate)
90x120 Pack (u.)
4
Description
Adapters for 4x250mL round bottom tubes cap Diameter x high (mm) (approximate)
60x135 or 60x120 Pack (u.)
4
Adapters for 4x250mL round bottom tubes cap Diameter x high (mm) (approximate)
60x135 or 60x120 Pack (u.)
4
Description
Adapter for 4x125 mL flat bottom tubes cap (hs) // Adapter for 4 x125 or 4x100 mL round bottom tubes // Adapter for 4x100 mL round bottom tubes cap Diameter x high (mm) (approximate)
48x108 // 48x100 // 48x113 Pack (u.)
4
Adapter for 4x125 mL flat bottom tubes cap (hs) // Adapter for 4 x125 or 4x100 mL round bottom tubes // Adapter for 4x100 mL round bottom tubes cap Diameter x high (mm) (approximate)
48x108 // 48x100 // 48x113 Pack (u.)
4
Description
Adapters for 16x50 mL round bottom tubes cap Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Adapters for 16x50 mL round bottom tubes cap Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Description
Adapter for 20x50 mL conical tubes cap Adapter for 20x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
4
Adapter for 20x50 mL conical tubes cap Adapter for 20x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
4
Description
Adapters for 24x30 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Adapters for 24x30 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Description
Adapters for 52x15 mL conical tubes cap Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Adapters for 52x15 mL conical tubes cap Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Description
Adapters for 32x15 mL blood tubes Diameter x high (mm) (approximate)
16x132 Pack (u.)
4
Adapters for 32x15 mL blood tubes Diameter x high (mm) (approximate)
16x132 Pack (u.)
4
Description
Adapters for 100x5 mL or 100x10 mL tubes Diameter x high (mm) (approximate)
13x75 o 13x100 Pack (u.)
4
Adapters for 100x5 mL or 100x10 mL tubes Diameter x high (mm) (approximate)
13x75 o 13x100 Pack (u.)
4
Description
Adapters for 144 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
4
Adapters for 144 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
4
Description
12 microtiter plates // 8 microtiter plates // 8 cell culture plates // 4 microtiter plates Diameter x high (mm) (approximate)
128x86x15 mm // 128x86x21 mm // 128x86x22 mm // 128x86x45 mm Pack (u.)
4
12 microtiter plates // 8 microtiter plates // 8 cell culture plates // 4 microtiter plates Diameter x high (mm) (approximate)
128x86x15 mm // 128x86x21 mm // 128x86x22 mm // 128x86x45 mm Pack (u.)
4
Description
Adapters for 72 microtubes 1.5-2 mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Adapters for 72 microtubes 1.5-2 mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Description
Adapter for 12x80-85 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Adapter for 12x80-85 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Description
750 mL lids beakers Diameter x high (mm) (approximate)
- Pack (u.)
4
750 mL lids beakers Diameter x high (mm) (approximate)
- Pack (u.)
4
Description
Adapters for blood bags 500 mL Diameter x high (mm) (approximate)
- Pack (u.)
4
Adapters for blood bags 500 mL Diameter x high (mm) (approximate)
- Pack (u.)
4
Description
Adapters for 8x80mL round bottom tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Adapters for 8x80mL round bottom tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Description
Adapters for 72 microtubes 0.5-0.6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Adapters for 72 microtubes 0.5-0.6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Description
Adapters for 72 microtubes 0.2-0.4 mL Diameter x high (mm) (approximate)
6x45 Pack (u.)
4
Adapters for 72 microtubes 0.2-0.4 mL Diameter x high (mm) (approximate)
6x45 Pack (u.)
4
Rotor RT284. Rotor with capacity for 12 microtiter plates 128x86x15 mm, 8 microtiter plates 128x86x21 mm, 8 cell culture plates 128x86x22 mm, 4 microtiter plates 128x86x45 mm
Model
RT284 Rotor type
Oscillating Capacity
12/8/4 microtiter plates Maximum speed (rpm)
3700 Radius (mm)
182 (medium radius on bucket) Maximum RCF xg
2786 Minimum temperature at maximum speed (ºC)
-4 Pack (u.)
1
RT284 Rotor type
Oscillating Capacity
12/8/4 microtiter plates Maximum speed (rpm)
3700 Radius (mm)
182 (medium radius on bucket) Maximum RCF xg
2786 Minimum temperature at maximum speed (ºC)
-4 Pack (u.)
1
Accessories for Rotor RT284
Description
Adapters for microtubes 144x1.5-2 mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Adapters for microtubes 144x1.5-2 mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Description
Adapters for microtubes 144x0.5-0.6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Adapters for microtubes 144x0.5-0.6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Description
Adapters for microtubes 144x0.2-0.4 mL and 144x0.2 mL Diameter x high (mm) (approximate)
6x45 and 6x21 Pack (u.)
4
Adapters for microtubes 144x0.2-0.4 mL and 144x0.2 mL Diameter x high (mm) (approximate)
6x45 and 6x21 Pack (u.)
4
Rotor RT287. Rotor with capacity for 30 Microtubes 1,5-2,2 mL (Ø11x42 mm)
Model
RT287 Rotor type
Angular Capacity
30x1,5/2ml Maximum speed (rpm)
14300 Radius (mm)
96 Maximum RCF xg
21948 Minimum temperature at maximum speed (ºC)
-3 Pack (u.)
1
RT287 Rotor type
Angular Capacity
30x1,5/2ml Maximum speed (rpm)
14300 Radius (mm)
96 Maximum RCF xg
21948 Minimum temperature at maximum speed (ºC)
-3 Pack (u.)
1
Accessories for Rotor RT287
Description
Adapters for 30x0.5-0.6 mL microtubes Diameter x high (mm) (approximate)
8x30 Pack (u.)
30
Adapters for 30x0.5-0.6 mL microtubes Diameter x high (mm) (approximate)
8x30 Pack (u.)
30
Description
Adapters for 30 microtubes 0.2-0.4 mL // Adapters for 30 microtubes 0.2 mL Diameter x high (mm) (approximate)
6x45 // 6x21 Pack (u.)
30
Adapters for 30 microtubes 0.2-0.4 mL // Adapters for 30 microtubes 0.2 mL Diameter x high (mm) (approximate)
6x45 // 6x21 Pack (u.)
30
Rotor RT292. Rotor with capacity for round bottom tubes cap (hs) 80-85 mL (Ø38x112 mm)
Model
RT292 Rotor type
Angular 30º Capacity
6x85 ml Maximum speed (rpm)
9000 Radius (mm)
112 Maximum RCF xg
10142 Minimum temperature at maximum speed (ºC)
- Pack (u.)
1
RT292 Rotor type
Angular 30º Capacity
6x85 ml Maximum speed (rpm)
9000 Radius (mm)
112 Maximum RCF xg
10142 Minimum temperature at maximum speed (ºC)
- Pack (u.)
1
Accessories for rotor RT292
Description
Adapters for 6x50 mL conical tubes cap // Adapters for 6x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
6
Adapters for 6x50 mL conical tubes cap // Adapters for 6x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
6
Description
Adapters for 6x30mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
6
Adapters for 6x30mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
6
Description
Adapters for 18x15mL round bottom tubes cap // Adapters for 18x12mL round bottom tubes cap // Adapters for 18x10mL blood sample tubes // Adapters for 18x10mL conical tubes Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 Pack (u.)
6
Adapters for 18x15mL round bottom tubes cap // Adapters for 18x12mL round bottom tubes cap // Adapters for 18x10mL blood sample tubes // Adapters for 18x10mL conical tubes Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 Pack (u.)
6
Description
Adapters for 6x15mL conical tubes cap Diameter x high (mm) (approximate)
17x122 Pack (u.)
6
Adapters for 6x15mL conical tubes cap Diameter x high (mm) (approximate)
17x122 Pack (u.)
6
Description
Adapters for 30x10mL round bottom tubes Diameter x high (mm) (approximate)
13x100 Pack (u.)
6
Adapters for 30x10mL round bottom tubes Diameter x high (mm) (approximate)
13x100 Pack (u.)
6
Rotor RT302
Model
RT302 Rotor type
Oscillating Capacity
4x60ml syringe Maximum speed (rpm)
3000 Radius (mm)
179 Maximum RCF xg
1801 Pack (u.)
1
RT302 Rotor type
Oscillating Capacity
4x60ml syringe Maximum speed (rpm)
3000 Radius (mm)
179 Maximum RCF xg
1801 Pack (u.)
1
Accessories for Rotor RT302
Description
Adapters for 16x10mL Syringes Diameter x high (mm) (approximate)
16x118 Pack (u.)
4
Adapters for 16x10mL Syringes Diameter x high (mm) (approximate)
16x118 Pack (u.)
4
Centrifuge Accessories. Rolling tables
Dimensions WxHxD (mm)
750x350x730 Weight (kg)
70 For model
Consul 22 R, Digtor 22 R. To place under table Pack (u.)
1
750x350x730 Weight (kg)
70 For model
Consul 22 R, Digtor 22 R. To place under table Pack (u.)
1
Dimensions WxHxD (mm)
750x580x730 Weight (kg)
90 For model
Consul 22 R, Digtor 22 R Pack (u.)
1
750x580x730 Weight (kg)
90 For model
Consul 22 R, Digtor 22 R Pack (u.)
1
Connect:
Scharlab S.L.
F +34937152765
helpdesk@scharlab.com
Gato Pérez, 33. Pol. Ind. Mas d’en Cisa E08181 Sentmenat, Barcelona, España
T +34937456400F +34937152765
helpdesk@scharlab.com
Laboratory supplies
Chemicals Microbiology Glassware, quartz and porcelain Chromatography Equipment Consumables Safety and hygiene
Chemicals Microbiology Glassware, quartz and porcelain Chromatography Equipment Consumables Safety and hygiene
