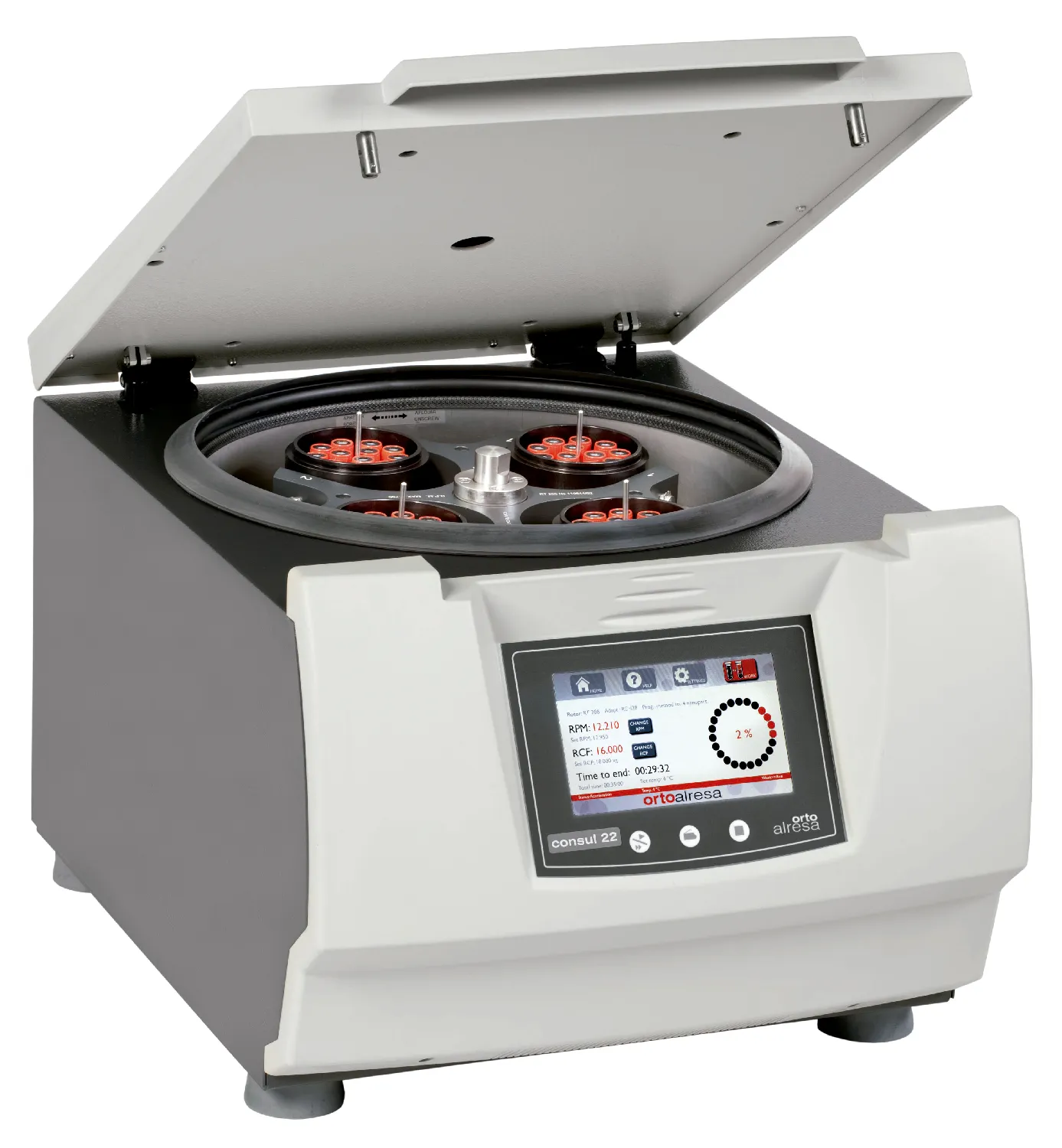

Centrifuge Consul 22/22R
High capacity on a bench top offering several advantages to the operator, until now exclusively available on devices for research. The TFT touch screen made easy the value selection, including in only one screen timer, RPM, RCF, acceleration and braking. The user menú, allows the customization of several values as open lid, RPM/RCF locking along centrifugation, countdown, etc. Along centrifugation a graphic shown the operator the current status as well as time to end of program.
High capacity on a bench top offering several advantages to the operator, until now exclusively available on devices for research. The TFT touch screen made easy the value selection, including in only one screen timer, RPM, RCF, acceleration and braking. The user menú, allows the customization of several values as open lid, RPM/RCF locking along centrifugation, countdown, etc. Along centrifugation a graphic shown the operator the current status as well as time to end of program.
Centrifuge (rotor not included)
Model
Consul 22 Refrigeration
No Dimensions WxHxD (mm)
490x400x600 Weight (Kg)
59 Voltage (V)
220-230 Frequency (Hz)
50-60 Consumption (W)
620 Pack (u.)
1
Consul 22 Refrigeration
No Dimensions WxHxD (mm)
490x400x600 Weight (Kg)
59 Voltage (V)
220-230 Frequency (Hz)
50-60 Consumption (W)
620 Pack (u.)
1
Model
Consul 22 R Refrigeration
Yes Dimensions WxHxD (mm)
670x400x730 Weight (Kg)
98 Voltage (V)
220-230 Frequency (Hz)
50-60 Consumption (W)
930 Pack (u.)
1
Consul 22 R Refrigeration
Yes Dimensions WxHxD (mm)
670x400x730 Weight (Kg)
98 Voltage (V)
220-230 Frequency (Hz)
50-60 Consumption (W)
930 Pack (u.)
1
Rotor RT280
Model
RT280 Rotor type
Angular Capacity
8x50ml Maximum speed (rpm)
6000 Radius (mm)
149 Maximum RCF xg
5997 Minimum temperature at maximum speed (ºC)
-2 Pack (u.)
1
RT280 Rotor type
Angular Capacity
8x50ml Maximum speed (rpm)
6000 Radius (mm)
149 Maximum RCF xg
5997 Minimum temperature at maximum speed (ºC)
-2 Pack (u.)
1
Accessories for rotor RT280
Description
Adapters for 8x50 mL round bottom tubes Diameter x high (mm) (approximate)
34x110 Pack (u.)
8
Adapters for 8x50 mL round bottom tubes Diameter x high (mm) (approximate)
34x110 Pack (u.)
8
Description
Adapter for 8 conical tubes cap 50 mL Adapter for 8 round bottom tubes cap (hs) 50 mL Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
8
Adapter for 8 conical tubes cap 50 mL Adapter for 8 round bottom tubes cap (hs) 50 mL Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
8
Description
dapter for 8 round bottom tubes cap (hs) 30 mL Diameter x high (mm) (approximate)
25x98 Pack (u.)
8
dapter for 8 round bottom tubes cap (hs) 30 mL Diameter x high (mm) (approximate)
25x98 Pack (u.)
8
Description
Adapter for 8x15 mL round bottom tubes cap // Adapter for 8x12 mL round bottom tubes cap // Adapter for 8x10 mL blood sample tubes // Adapter for 8x10 mL conical tubes // Adapter for 8x10 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 // 16x80 Pack (u.)
8
Adapter for 8x15 mL round bottom tubes cap // Adapter for 8x12 mL round bottom tubes cap // Adapter for 8x10 mL blood sample tubes // Adapter for 8x10 mL conical tubes // Adapter for 8x10 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 // 16x80 Pack (u.)
8
Description
Adapters for 24x5 mL or 24x10 mL tubes Diameter x high (mm) (approximate)
13x75 or 13x100 Pack (u.)
8
Adapters for 24x5 mL or 24x10 mL tubes Diameter x high (mm) (approximate)
13x75 or 13x100 Pack (u.)
8
Description
Adapters for 8x5mL blood tubes, or 8x7-10 mL blood tubes Diameter x high (mm) (approximate)
13x82 or 13x107 Pack (u.)
8
Adapters for 8x5mL blood tubes, or 8x7-10 mL blood tubes Diameter x high (mm) (approximate)
13x82 or 13x107 Pack (u.)
8
Description
Adapters for 24 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
8
Adapters for 24 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
8
Description
Adapters for 24 microtubes of 1,5-2 mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
8
Adapters for 24 microtubes of 1,5-2 mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
8
Description
Adapters for 24 microtubes of 0,5-0,6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
8
Adapters for 24 microtubes of 0,5-0,6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
8
Description
Adapters for 24 microtubes 0.2-0.4 mL // Adapters for 24 microtubes 0.2 mL Diameter x high (mm) (approximate)
6x45 // 6x21 Pack (u.)
8
Adapters for 24 microtubes 0.2-0.4 mL // Adapters for 24 microtubes 0.2 mL Diameter x high (mm) (approximate)
6x45 // 6x21 Pack (u.)
8
Rotor RT281. Rotor with capacity for 4 flat bottom, cap (hs) tubes 125 mL (Ø48x108 mm)
Model
RT281 Rotor type
Angular Capacity
4x100ml Maximum speed (rpm)
5600 Radius (mm)
138 Maximum RCF xg
4838 Minimum temperature at maximum speed (ºC)
-1 Pack (u.)
1
RT281 Rotor type
Angular Capacity
4x100ml Maximum speed (rpm)
5600 Radius (mm)
138 Maximum RCF xg
4838 Minimum temperature at maximum speed (ºC)
-1 Pack (u.)
1
Accessories for rotor RT281
Description
Capacity for 4x100 mL tubes Diameter x high (mm) (approx)
48x100 / 48x113 Pack (u.)
4
Capacity for 4x100 mL tubes Diameter x high (mm) (approx)
48x100 / 48x113 Pack (u.)
4
Description
Adapters for 4x80 mL Round bottom tubes Diameter x high (mm) (approx)
44x100 Pack (u.)
4
Adapters for 4x80 mL Round bottom tubes Diameter x high (mm) (approx)
44x100 Pack (u.)
4
Description
Adapters for 4x50 mL Round bottom, cap tubes Diameter x high (mm) (approx)
34x110 Pack (u.)
4
Adapters for 4x50 mL Round bottom, cap tubes Diameter x high (mm) (approx)
34x110 Pack (u.)
4
Description
Adapters for 4x50 mL conical cap, Round bottom, cap (hs) 50 mL Diameter x high (mm) (approx)
29x108 Pack (u.)
4
Adapters for 4x50 mL conical cap, Round bottom, cap (hs) 50 mL Diameter x high (mm) (approx)
29x108 Pack (u.)
4
Description
Adapters for 4x30 mL tubes hs Diameter x high (mm) (approx)
25x98 Pack (u.)
4
Adapters for 4x30 mL tubes hs Diameter x high (mm) (approx)
25x98 Pack (u.)
4
Description
Adapters for 4x15 mL conical tubes Diameter x high (mm) (approx)
17x122 Pack (u.)
4
Adapters for 4x15 mL conical tubes Diameter x high (mm) (approx)
17x122 Pack (u.)
4
Description
Reductores para 16 tubos de 10 mL extr. sangre, 10 mL hs, tubos fondo redondo, tapón 15 mL y 12 mL, cónico 10 mL Diameter x high (mm) (approx)
16x107 /18x80 / 16x100 / 16x110 / 16x105 Pack (u.)
4
Reductores para 16 tubos de 10 mL extr. sangre, 10 mL hs, tubos fondo redondo, tapón 15 mL y 12 mL, cónico 10 mL Diameter x high (mm) (approx)
16x107 /18x80 / 16x100 / 16x110 / 16x105 Pack (u.)
4
Description
Adapters for 20x 5mL blood tubes, or 20x7/10 mL blood tubes,20x5 mL or 20x10 mL tubes Diameter x high (mm) (approx)
13x82 / 13x107 / 13x75 / 13x100 Pack (u.)
4
Adapters for 20x 5mL blood tubes, or 20x7/10 mL blood tubes,20x5 mL or 20x10 mL tubes Diameter x high (mm) (approx)
13x82 / 13x107 / 13x75 / 13x100 Pack (u.)
4
Description
Adapters for 20 microtubes of 1,5-2,2ml Diameter x high (mm) (approx)
11x42 Pack (u.)
4
Adapters for 20 microtubes of 1,5-2,2ml Diameter x high (mm) (approx)
11x42 Pack (u.)
4
Description
Adapters for 4x80 mL hs tubes Diameter x high (mm) (approx)
38x112 Pack (u.)
4
Adapters for 4x80 mL hs tubes Diameter x high (mm) (approx)
38x112 Pack (u.)
4
Description
Adapters for 20 microtubes of 0.5-0.6 mL Diameter x high (mm) (approx)
8x30 Pack (u.)
4
Adapters for 20 microtubes of 0.5-0.6 mL Diameter x high (mm) (approx)
8x30 Pack (u.)
4
Description
Adapters for 20 microtubes of 0.2-0.4 mL and 0.2 mL Diameter x high (mm) (approx)
6x45 / 6x21 Pack (u.)
4
Adapters for 20 microtubes of 0.2-0.4 mL and 0.2 mL Diameter x high (mm) (approx)
6x45 / 6x21 Pack (u.)
4
Rotor RT282. Rotor with capacity for 4 conical cap tubes 250 mL (Ø60x145 mm), 4 flat bottom, cap tubes 250 mL (Ø62x120 mm)
Model
RT282 Rotor type
Angular Capacity
4x250 ml Maximum speed (rpm)
4700 Radius (mm)
153 Maximum RCF xg
3779 Minimum temperature at maximum speed (ºC)
-3 Pack (u.)
1
RT282 Rotor type
Angular Capacity
4x250 ml Maximum speed (rpm)
4700 Radius (mm)
153 Maximum RCF xg
3779 Minimum temperature at maximum speed (ºC)
-3 Pack (u.)
1
Accessories for rotor RT282
Description
Adapter for 4x125 and 4x100 mL round bottom tubes // Adapter for 4x100 mL round bottom tubes cap Diameter x high (mm) (approximate)
48x100 // 48x113 Pack (u.)
4
Adapter for 4x125 and 4x100 mL round bottom tubes // Adapter for 4x100 mL round bottom tubes cap Diameter x high (mm) (approximate)
48x100 // 48x113 Pack (u.)
4
Description
Adapter for 4x80-85 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Adapter for 4x80-85 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Description
Adapters for 4x50 mL round bottom tubes Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Adapters for 4x50 mL round bottom tubes Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Description
Adapters for 4x50mL conical tubes with or without skirt // Adapter for 4x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
4
Adapters for 4x50mL conical tubes with or without skirt // Adapter for 4x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
4
Description
Adapters for 12x30 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Adapters for 12x30 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Description
Adapters for 20x15 mL conical tubes Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Adapters for 20x15 mL conical tubes Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Description
Adapter for 28 round bottom tubes cap 15 mL // Adapter for 28 round bottom tubes cap 12 mL // Adapter for 28 blood sample tubes 10 mL // Adapter for 28 conical tubes 10 mL // Adapter for 28 round bottom, cap (hs) tubes 10 mL // Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 // 16x80 Pack (u.)
4
Adapter for 28 round bottom tubes cap 15 mL // Adapter for 28 round bottom tubes cap 12 mL // Adapter for 28 blood sample tubes 10 mL // Adapter for 28 conical tubes 10 mL // Adapter for 28 round bottom, cap (hs) tubes 10 mL // Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 // 16x80 Pack (u.)
4
Description
Adapters for 40x5 mL or 40x10 mL tubes Diameter x high (mm) (approximate)
13x75 or 13x100 Pack (u.)
4
Adapters for 40x5 mL or 40x10 mL tubes Diameter x high (mm) (approximate)
13x75 or 13x100 Pack (u.)
4
Description
Adapter for 28x5 mL or 7-10 mL blood sample tube Diameter x high (mm) (approximate)
13x82 or 13x107 Pack (u.)
4
Adapter for 28x5 mL or 7-10 mL blood sample tube Diameter x high (mm) (approximate)
13x82 or 13x107 Pack (u.)
4
Description
Adapters for 52 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
4
Adapters for 52 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
4
Description
Adapters for 24 microtubes 1.5-2 mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Adapters for 24 microtubes 1.5-2 mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Description
Adapter for 4 round bottom tubes cap 250 mL // Adapter for 4 round bottom tubes cap 200 mL // Adapter for 4 round bottom tubes cap 150 mL Diameter x high (mm) (approximate)
62x120 or 60x135 // 60x120 // 60x130 Pack (u.)
4
Adapter for 4 round bottom tubes cap 250 mL // Adapter for 4 round bottom tubes cap 200 mL // Adapter for 4 round bottom tubes cap 150 mL Diameter x high (mm) (approximate)
62x120 or 60x135 // 60x120 // 60x130 Pack (u.)
4
Description
Adapters for 4x80 mL tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Adapters for 4x80 mL tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Description
Adapters for 24 microtubes 0.5-0.6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Adapters for 24 microtubes 0.5-0.6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Description
Adapters for 24 microtubes 0.2-0.4 mL Diameter x high (mm) (approximate)
6x45 Pack (u.)
4
Adapters for 24 microtubes 0.2-0.4 mL Diameter x high (mm) (approximate)
6x45 Pack (u.)
4
Rotor RT285. Rotor with capacity for 4 flat bottom, cap tubes 250 mL (Ø62x120 or Ø62x135 mm)
Model
RT285 Rotor type
Swingout Capacity
4x250ml Maximum speed (rpm)
4200 Radius (mm)
183 Maximum RCF xg
3609 Minimum temperature at maximum speed (ºC)
-1 Pack (u.)
1
RT285 Rotor type
Swingout Capacity
4x250ml Maximum speed (rpm)
4200 Radius (mm)
183 Maximum RCF xg
3609 Minimum temperature at maximum speed (ºC)
-1 Pack (u.)
1
Accessories for rotor RT285
Description
Adapter for 4x125 and 4x100 mL round bottom tubes // Adapter for 4x100 mL round bottom tubes cap Diameter x high (mm) (approximate)
48x100 // 48x113 Pack (u.)
4
Adapter for 4x125 and 4x100 mL round bottom tubes // Adapter for 4x100 mL round bottom tubes cap Diameter x high (mm) (approximate)
48x100 // 48x113 Pack (u.)
4
Description
Adapter for 4x80-85 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Adapter for 4x80-85 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
38x112 Pack (u.)
4
Description
Adapters for 4x50 mL round bottom tubes Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Adapters for 4x50 mL round bottom tubes Diameter x high (mm) (approximate)
34x110 Pack (u.)
4
Description
Adapters for 4x50mL conical tubes with or without skirt // Adapter for 4x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
4
Adapters for 4x50mL conical tubes with or without skirt // Adapter for 4x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
4
Description
Adapters for 12x30 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Adapters for 12x30 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
4
Description
Adapters for 20x15 mL conical tubes Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Adapters for 20x15 mL conical tubes Diameter x high (mm) (approximate)
17x122 Pack (u.)
4
Description
Adapter for 28 round bottom tubes cap 15 mL // Adapter for 28 round bottom tubes cap 12 mL // Adapter for 28 blood sample tubes 10 mL // Adapter for 28 conical tubes 10 mL // Adapter for 28 round bottom, cap (hs) tubes 10 mL // Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 // 16x80 Pack (u.)
4
Adapter for 28 round bottom tubes cap 15 mL // Adapter for 28 round bottom tubes cap 12 mL // Adapter for 28 blood sample tubes 10 mL // Adapter for 28 conical tubes 10 mL // Adapter for 28 round bottom, cap (hs) tubes 10 mL // Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 // 16x80 Pack (u.)
4
Description
Adapters for 40x5 mL or 40x10 mL tubes Diameter x high (mm) (approximate)
13x75 or 13x100 Pack (u.)
4
Adapters for 40x5 mL or 40x10 mL tubes Diameter x high (mm) (approximate)
13x75 or 13x100 Pack (u.)
4
Description
Adapter for 28x5 mL or 7-10 mL blood sample tube Diameter x high (mm) (approximate)
13x82 or 13x107 Pack (u.)
4
Adapter for 28x5 mL or 7-10 mL blood sample tube Diameter x high (mm) (approximate)
13x82 or 13x107 Pack (u.)
4
Description
Adapters for 52 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
4
Adapters for 52 haemolysis tubes Diameter x high (mm) (approximate)
10x100 Pack (u.)
4
Description
Adapters for 24 microtubes 1.5-2 mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Adapters for 24 microtubes 1.5-2 mL Diameter x high (mm) (approximate)
11x42 Pack (u.)
4
Description
Adapter for 4 round bottom tubes cap 250 mL // Adapter for 4 round bottom tubes cap 200 mL // Adapter for 4 round bottom tubes cap 150 mL Diameter x high (mm) (approximate)
62x120 or 60x135 // 60x120 // 60x130 Pack (u.)
4
Adapter for 4 round bottom tubes cap 250 mL // Adapter for 4 round bottom tubes cap 200 mL // Adapter for 4 round bottom tubes cap 150 mL Diameter x high (mm) (approximate)
62x120 or 60x135 // 60x120 // 60x130 Pack (u.)
4
Description
Adapters for 4x80 mL tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Adapters for 4x80 mL tubes Diameter x high (mm) (approximate)
44x100 Pack (u.)
4
Description
Adapters for 24 microtubes 0.5-0.6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Adapters for 24 microtubes 0.5-0.6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
4
Description
Adapters for 24 microtubes 0.2-0.4 mL Diameter x high (mm) (approximate)
6x45 Pack (u.)
4
Adapters for 24 microtubes 0.2-0.4 mL Diameter x high (mm) (approximate)
6x45 Pack (u.)
4
Rotor RT286
Model
RT286 Rotor type
Swingout Capacity
4x400ml Maximum speed (rpm)
4000 Radius (mm)
180 Maximum RCF xg
3220 Minimum temperature at maximum speed (ºC)
-2 Pack (u.)
1
RT286 Rotor type
Swingout Capacity
4x400ml Maximum speed (rpm)
4000 Radius (mm)
180 Maximum RCF xg
3220 Minimum temperature at maximum speed (ºC)
-2 Pack (u.)
1
Accessories for rotor RT286
Description
Adapter for 4 round bottom tubes cap 400 mL
80x118 Pack (u.)
4
Adapter for 4 round bottom tubes cap 400 mL
80x118 Pack (u.)
4
Description
Adapters for 4x250 mL flat bottom tubes cap
60x135 o 62x120 Pack (u.)
4
Adapters for 4x250 mL flat bottom tubes cap
60x135 o 62x120 Pack (u.)
4
Description
Adapters for 4x200 mL round bottom tubes cap
60x135 o 62x120 Pack (u.)
4
Adapters for 4x200 mL round bottom tubes cap
60x135 o 62x120 Pack (u.)
4
Description
Adapter for 4 flat bottom, cap (hs) tubes 125 mL // Adapter for 4 round bottom tubes 125 mL // Adapter for 4 round bottom tubes cap 100 mL // Adapter for 4 round bottom tubes 100 mL
48x108 // 48x100 // 48x113 // 48x100 Pack (u.)
4
Adapter for 4 flat bottom, cap (hs) tubes 125 mL // Adapter for 4 round bottom tubes 125 mL // Adapter for 4 round bottom tubes cap 100 mL // Adapter for 4 round bottom tubes 100 mL
48x108 // 48x100 // 48x113 // 48x100 Pack (u.)
4
Description
Adapters for 4x80-85 mL round bottom tubes cap (hs)
38x112 Pack (u.)
4
Adapters for 4x80-85 mL round bottom tubes cap (hs)
38x112 Pack (u.)
4
Description
Adapter for 12 conical tubes cap 50 mL Adapter for 12 round bottom tubes cap (hs) 50 mL
29x117 // 29x108 Pack (u.)
4
Adapter for 12 conical tubes cap 50 mL Adapter for 12 round bottom tubes cap (hs) 50 mL
29x117 // 29x108 Pack (u.)
4
Description
Adapters for 8x50 mL round bottom tubes cap
34x110 Pack (u.)
4
Adapters for 8x50 mL round bottom tubes cap
34x110 Pack (u.)
4
Description
Adapters for 20x30 mL round bottom tubes cap (hs)
25x98 Pack (u.)
4
Adapters for 20x30 mL round bottom tubes cap (hs)
25x98 Pack (u.)
4
Description
Adapters for 28x15 mL conical tubes cap
17x122 Pack (u.)
4
Adapters for 28x15 mL conical tubes cap
17x122 Pack (u.)
4
Description
Adapters for 72x5 mL tubes or 72x10 mL
13x75 or 13x100 Pack (u.)
4
Adapters for 72x5 mL tubes or 72x10 mL
13x75 or 13x100 Pack (u.)
4
Description
Adapters for 48 microtubes of 1.5 mL to 2 mL
11x42 Pack (u.)
4
Adapters for 48 microtubes of 1.5 mL to 2 mL
11x42 Pack (u.)
4
Description
Adapters for 76 haemolysis tubes
10x100 Pack (u.)
4
Adapters for 76 haemolysis tubes
10x100 Pack (u.)
4
Description
400ml beakers
Pack (u.)
4
400ml beakers
Pack (u.)
4
Description
Adapters for 48 microtubes of 0.5-0.6 mL
8x30 Pack (u.)
4
Adapters for 48 microtubes of 0.5-0.6 mL
8x30 Pack (u.)
4
Description
Adapters for 48 microtubes of 0.2-0.4 mL
6x45 Pack (u.)
4
Adapters for 48 microtubes of 0.2-0.4 mL
6x45 Pack (u.)
4
Rotor RT287. Rotor with capacity for 30 microtubes 1.5-2.2 mL (Ø11x42 mm)
Model
RT287 Rotor type
Angular Capacity
30x1,5/2ml Maximum speed (rpm)
14300 Radius (mm)
96 Maximum RCF xg
21948 Minimum temperature at maximum speed (ºC)
-3 Pack (u.)
1
RT287 Rotor type
Angular Capacity
30x1,5/2ml Maximum speed (rpm)
14300 Radius (mm)
96 Maximum RCF xg
21948 Minimum temperature at maximum speed (ºC)
-3 Pack (u.)
1
Accessories for rotor RT287
Description
Adapters for 30 microtubes of 0.5/0.6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
30
Adapters for 30 microtubes of 0.5/0.6 mL Diameter x high (mm) (approximate)
8x30 Pack (u.)
30
Description
Adapters for 30 microtubes 0.2-0.4 mL // Adapters for 30 microtubes 0.2 mL Diameter x high (mm) (approximate)
6x45 // 6x21 Pack (u.)
30
Adapters for 30 microtubes 0.2-0.4 mL // Adapters for 30 microtubes 0.2 mL Diameter x high (mm) (approximate)
6x45 // 6x21 Pack (u.)
30
Rotor RT288. Rotor with capacity for 12 microtiter plates 128x86x15 mm, 8 microtiter plates 128x86x21 mm, 8 cell culture plates 128x86x22 mm, 4 microtiter plates 128x86x45 mm.
Model
RT288 Rotor type
Swingout Capacity
12/8/4 microplates Maximum speed (rpm)
3500 Radius (mm)
149 Maximum RCF xg
2041 Minimum temperature at maximum speed (ºC)
-4 Pack (u.)
1
RT288 Rotor type
Swingout Capacity
12/8/4 microplates Maximum speed (rpm)
3500 Radius (mm)
149 Maximum RCF xg
2041 Minimum temperature at maximum speed (ºC)
-4 Pack (u.)
1
Accessories for rotor RT288
Description
Adapters for 144 microtubes of 1.5-2 mL
Adapters for 144 microtubes of 1.5-2 mL
Description
Adapters for 144 microtubes of 0.5-0.6 mL
Adapters for 144 microtubes of 0.5-0.6 mL
Description
Adapters for 144 microtubes of 0.2-0.4 mL and 0.2 mL
Adapters for 144 microtubes of 0.2-0.4 mL and 0.2 mL
Rotor RT292. Rotor with capacity for round bottom tubes cap (hs) 80-85 mL (Ø38x112 mm)
Model
RT292 Rotor type
Angular 30º Capacity
6x85 ml Maximum speed (rpm)
9000 Radius (mm)
112 Maximum RCF xg
10142 Minimum temperature at maximum speed (ºC)
- Pack (u.)
1
RT292 Rotor type
Angular 30º Capacity
6x85 ml Maximum speed (rpm)
9000 Radius (mm)
112 Maximum RCF xg
10142 Minimum temperature at maximum speed (ºC)
- Pack (u.)
1
Accessories for rotor RT292
Description
Adapters for 6x50 mL conical tubes cap // Adapters for 6x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
6
Adapters for 6x50 mL conical tubes cap // Adapters for 6x50 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
29x117 // 29x108 Pack (u.)
6
Description
Adapters for 6x30 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
6
Adapters for 6x30 mL round bottom tubes cap (hs) Diameter x high (mm) (approximate)
25x98 Pack (u.)
6
Description
Adapter for 18x15 mL round bottom tubes cap // Adapter for 18x12 mL round bottom tubes cap // Adapter for 18x10 mL blood sample tubes // Adapter for 18x10 mL conical tubes Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 Pack (u.)
6
Adapter for 18x15 mL round bottom tubes cap // Adapter for 18x12 mL round bottom tubes cap // Adapter for 18x10 mL blood sample tubes // Adapter for 18x10 mL conical tubes Diameter x high (mm) (approximate)
16x100 // 16x110 // 16x107 // 16x105 Pack (u.)
6
Description
Adapters for 6x15 mL conical tubes cap Diameter x high (mm) (approximate)
17x122 Pack (u.)
6
Adapters for 6x15 mL conical tubes cap Diameter x high (mm) (approximate)
17x122 Pack (u.)
6
Description
Adapters for 30x10 mL round bottom tubes Diameter x high (mm) (approximate)
13x100 Pack (u.)
6
Adapters for 30x10 mL round bottom tubes Diameter x high (mm) (approximate)
13x100 Pack (u.)
6
Accessories for rotor RT297
Description
Adapters for 72 microtubes of 1.5-2.2 mL Diameter x high (mm) (approx)
11x42 Pack (u.)
2
Adapters for 72 microtubes of 1.5-2.2 mL Diameter x high (mm) (approx)
11x42 Pack (u.)
2
Centrifuge Accessories. Rolling tables
Dimensions WxHxD (mm)
560x580x590 Weight (kg)
65 Centrifuge model
Biocen 22 R, Bioprocen 22 R, Digicen 22 R, Consul 22, Digtor 22 and Serie Digtor 22 C Pack (u.)
1
560x580x590 Weight (kg)
65 Centrifuge model
Biocen 22 R, Bioprocen 22 R, Digicen 22 R, Consul 22, Digtor 22 and Serie Digtor 22 C Pack (u.)
1
Dimensions WxHxD (mm)
750x350x730 Weight (kg)
70 For model
Consul 22 R, Digtor 22 R. To place under table Pack (u.)
1
750x350x730 Weight (kg)
70 For model
Consul 22 R, Digtor 22 R. To place under table Pack (u.)
1
Dimensions WxHxD (mm)
750x580x730 Weight (kg)
90 For model
Consul 22 R, Digtor 22 R Pack (u.)
1
750x580x730 Weight (kg)
90 For model
Consul 22 R, Digtor 22 R Pack (u.)
1
Connect:
Scharlab S.L.
F +34937152765
helpdesk@scharlab.com
Gato Pérez, 33. Pol. Ind. Mas d’en Cisa E08181 Sentmenat, Barcelona, España
T +34937456400F +34937152765
helpdesk@scharlab.com
Laboratory supplies
Chemicals Microbiology Glassware, quartz and porcelain Chromatography Equipment Consumables Safety and hygiene
Chemicals Microbiology Glassware, quartz and porcelain Chromatography Equipment Consumables Safety and hygiene
