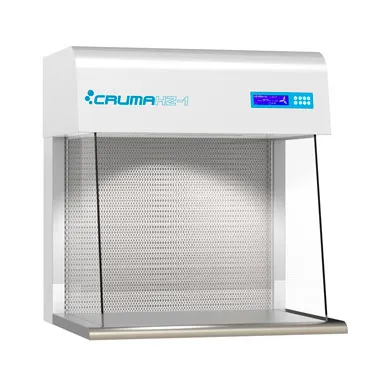

Horitzontal laminar flow cabinets HZ
The internal design, the air flow aerodynamics and monitoring, the special H14 filter with Micromesh downstream equalising plenum, guarantees the highest performances at the most stringent safety levels and operator comfort.
The air speed is, for the highest product safety, permanently controlled. Lateral Flow Concept side walls: special tempered-glass side walls are installed inside the air flow, to prevent any leakage from the outside, thanks to the Venturi-effect.
The air flow, leaving the HEPA filter at a constant speed, produces an extremely clean - better than Class 100 - environment in the work area, preventing any contamination to enter from the ambient outside.
More information on the new LCD screen: format 127x34mm. Type filter installed, working hours, and expiration next revision. Countdown timer. Clock and calendar.
New features and components: Initial cycle flow adequacy and final purge cycle. LED fault indicator. Airflow control microprocessor. HEPA filter with electronic chip. LED lighting
Absolute HEPA filter with flow equalizer, higher than 99.995% on 0.3 micron particles efficiency. MIL-F51068C and BS 3298
7 years guarantee
Cruma HZ Cabinets provide an ultimate cleanliness Class 100 work area where the highest safety for the products is achieved.
The internal design, the air flow aerodynamics and monitoring, the special H14 filter with Micromesh downstream equalising plenum, guarantees the highest performances at the most stringent safety levels and operator comfort.
The air speed is, for the highest product safety, permanently controlled. Lateral Flow Concept side walls: special tempered-glass side walls are installed inside the air flow, to prevent any leakage from the outside, thanks to the Venturi-effect.
The air flow, leaving the HEPA filter at a constant speed, produces an extremely clean - better than Class 100 - environment in the work area, preventing any contamination to enter from the ambient outside.
More information on the new LCD screen: format 127x34mm. Type filter installed, working hours, and expiration next revision. Countdown timer. Clock and calendar.
New features and components: Initial cycle flow adequacy and final purge cycle. LED fault indicator. Airflow control microprocessor. HEPA filter with electronic chip. LED lighting
Absolute HEPA filter with flow equalizer, higher than 99.995% on 0.3 micron particles efficiency. MIL-F51068C and BS 3298
7 years guarantee
HZ-1 External dimensions WxDxH (mm)
890x971x771 Internal dimensions WxDxH (mm)
700x633x600 Front barrier air speed (m/s)
0,5 Sound level (dB)
45 Gross weight (Kg)
80 Pack (u.)
1
HZ-2 External dimensions WxDxH (mm)
1295x1085x970 Internal dimensions WxDxH (mm)
1170x683x800 Front barrier air speed (m/s)
0,5 Sound level (dB)
45 Gross weight (Kg)
62,8 Pack (u.)
1
