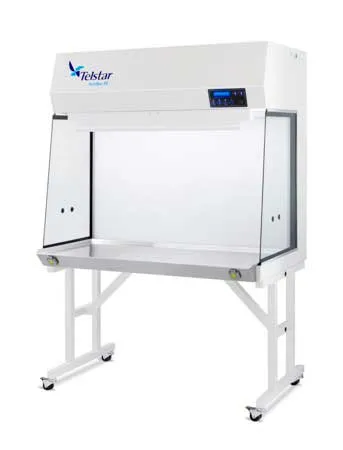

Aeolus H horizontal laminar flow cabinets
Features:
- Cabinets made of stove-enamel coated steel.
- Polished AISI-304 stainless steel working surface.
- HEPA filter protected with laminar screen to provide incomparable uniform flow.
- Removable and U.V. resistant tempered glass side walls.
Green line:
- Very low power consumption is obtained by adopting:
- EC motors
- LED lighting
- Standby flow mode
- All parts are retrofittable, even the metallic ones, so extending total life of the cabinet.
- Pre-filter (G3) prevents dust, dirt and particles reaching the HEPA filter, tremendously increasing HEPA filter lifetime.
Technical data:
- Lighting (lux): > 800 lux.
- Noise level (dBA): < 60.
- HEPA/ULPA H14 filters: efficiency> 99,999% (DOP) class 10.
- Fans: EC centrifugal high efficiency with speed control.
- Power supply: 230 V.
The Aeolus H horizontal laminar flow cabinet guarantee total protection of the product, and work in conditions of sterility and absence of particles by the principle of continuous sweeping of the working area. These cabinets have been specially designed to work in Hospitals, Pharmacies, IVF Centers, Food Control, Horticulture in vitro Cultures, and also in Electronics, Optics, Micromechanics, Plastic Industries, etc. All models are supplied with working area Class 10 as defined by ISO 14644-1 (Class 5), GMP Annex 1 (Grade A).
Features:
- Cabinets made of stove-enamel coated steel.
- Polished AISI-304 stainless steel working surface.
- HEPA filter protected with laminar screen to provide incomparable uniform flow.
- Removable and U.V. resistant tempered glass side walls.
Green line:
- Very low power consumption is obtained by adopting:
- EC motors
- LED lighting
- Standby flow mode
- All parts are retrofittable, even the metallic ones, so extending total life of the cabinet.
- Pre-filter (G3) prevents dust, dirt and particles reaching the HEPA filter, tremendously increasing HEPA filter lifetime.
Technical data:
- Lighting (lux): > 800 lux.
- Noise level (dBA): < 60.
- HEPA/ULPA H14 filters: efficiency> 99,999% (DOP) class 10.
- Fans: EC centrifugal high efficiency with speed control.
- Power supply: 230 V.
Aeolus H3 (0,8 m) Flow (m3/h)
1049 Air average speed (m/s)
0.45 External dimensions WxHxD (mm)
944x872x1212 Consumption (W)
127 Weight (Kg)
106 Pack (u.)
1
Aeolus H4 (1,2 m) Flow (m3/h)
1411 Air average speed (m/s)
0.45 External dimensions WxHxD (mm)
1249x872x1212 Consumption (W)
177 Weight (Kg)
134 Pack (u.)
1
Aeolus H5 (1,5 m) Flow (m3/h)
1773 Air average speed (m/s)
0.45 External dimensions WxHxD (mm)
1554x872x1212 Consumption (W)
214 Weight (Kg)
150 Pack (u.)
1
Aeolus H6 (1,8 m) Flow (m3/h)
2135 Air average speed (m/s)
0.45 External dimensions WxHxD (mm)
1859x872x1212 Consumption (W)
319 Weight (Kg)
171 Pack (u.)
1
