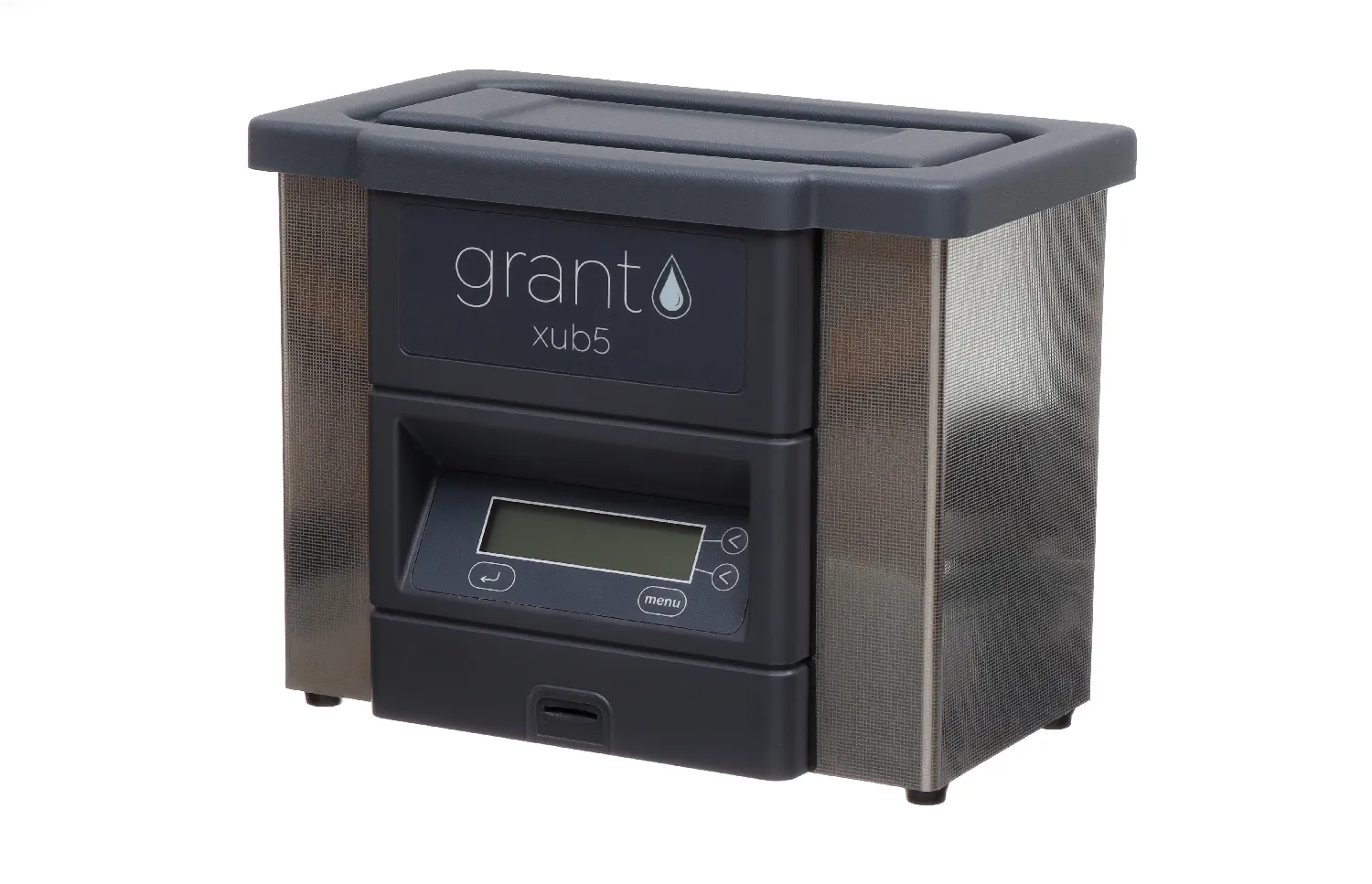

XUB Digital ultrasonic baths
Accurate process control of time, temperature, ultrasonic activity, degas and power.
Degassing function to remove small bubbles from liquid, reducing the overall time needed for ultrasonic operation.
SD ports allows easy validation between ultrasonic baths and PC. Improved software memory logs cleaning parameters allowing easy cycle repeatability.
Accurate fluid level sensors to ensure bath is not underfilled prior to or during the cycle.
Easy to use single touch LCD control panel with user-settable parameters to suit the individual requirements.
Timer control from 0-99 minutes.
Drain valve for convenient emptying.
Supplied with stainless steel basket, ABS plastic lid, ultrasonic cleaning solution (GRA-0M2SOL), SD Card and drain tap.
The XUB range of digitally controlled benchtop ultrasonic baths offer consistent and reliable performance in a variety of environments. Incorporating Frequency LEAP technology to ensure uniform levels of ultrasonic activity throughout the fluid, these baths offer high performance giving an accurate and precise ultrasonic process.
Accurate process control of time, temperature, ultrasonic activity, degas and power.
Degassing function to remove small bubbles from liquid, reducing the overall time needed for ultrasonic operation.
SD ports allows easy validation between ultrasonic baths and PC. Improved software memory logs cleaning parameters allowing easy cycle repeatability.
Accurate fluid level sensors to ensure bath is not underfilled prior to or during the cycle.
Easy to use single touch LCD control panel with user-settable parameters to suit the individual requirements.
Timer control from 0-99 minutes.
Drain valve for convenient emptying.
Supplied with stainless steel basket, ABS plastic lid, ultrasonic cleaning solution (GRA-0M2SOL), SD Card and drain tap.
XUB5 Working volume (l)
4.5 Temperature range (ºC)
Ambient +5 to 70 Dimensions WxHxD (mm)
345x266x235 Ultrasonic power (W)
100 Heating power (W)
150 Weight (kg)
6.4 Pack (u.)
1
XUB12 Working volume (l)
12.5 Temperature range (ºC)
Ambient +5 to 70 Dimensions WxHxD (mm)
342x365x330 Ultrasonic power (W)
200 Heating power (W)
300 Weight (kg)
10.5 Pack (u.)
1
XUB18 Working volume (l)
17.5 Temperature range (ºC)
Ambient +5 to 70 Dimensions WxHxD (mm)
375x365x385 Ultrasonic power (W)
300 Heating power (W)
450 Weight (kg)
12.6 Pack (u.)
1
XUB25 Working volume (l)
25 Temperature range (ºC)
Ambient +5 to 70 Dimensions WxHxD (mm)
546x365x385 Ultrasonic power (W)
400 Heating power (W)
650 Weight (kg)
15.1 Pack (u.)
1
