Unichillers - Compact cold circulation refrigerators

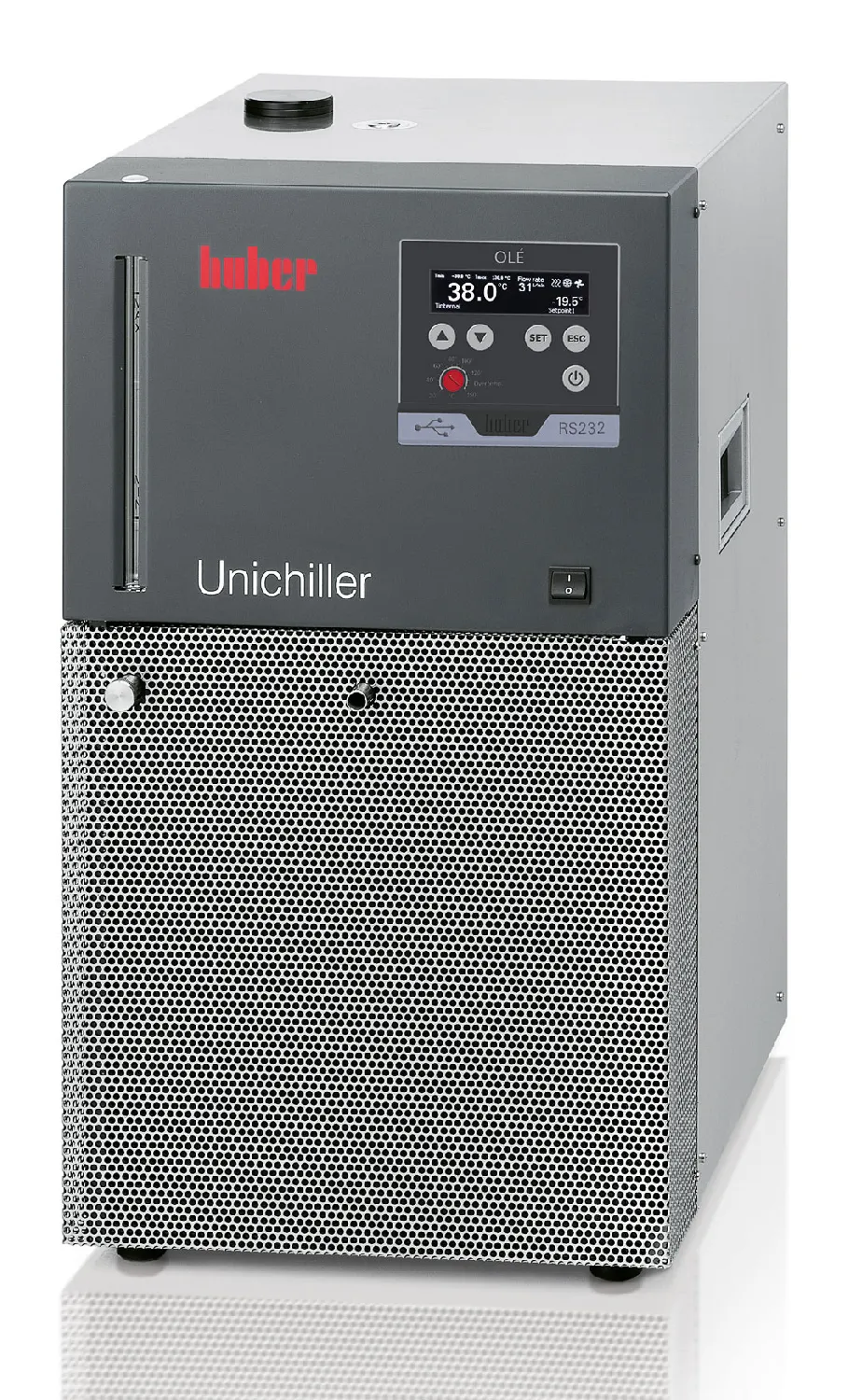

The new OLÉ controller combines state-of-the-art technology with simple operation. OLÉ models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).
- Cost-effective and environmentally friendly cooling solution
- High performance
- Exact temperature regulation
- Sturdy stainless steel construction
- Safe permanent service with warning functions
- Easy loading and unloading
- Illuminated fill level indication
- Large, bright OLED display
- Simple operation guided by menu
- USB and RS232 interface
Pilot ONE controller
The multi-touch controller Pilot ONE offers a brilliant 5,7' touchscreen with graphic functions and a comfortable navigation menu in 13 languages. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
Features:
- Plug & Play Technology
- Precise temperature control
- 5.7' touchscreen and comfortable menu navigation
- Easy menu guide available in 6 languages
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- Powerful pressure/suction pump
- Programmer with calendar and clock functions
- 5-point calibration
- RS232 Interface and Pt100 connection
The Unichiller range offers air and water cooled models in different performance classes. Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water temperature compared to traditional tap water cooling. Chillers also reduce water consumption and help conserve the environment whilst lowering operating costs. Unichillers are suitable for the removal of heat from chemical processes, cooling technical plants or as a central cooling water supply for laboratories. All Unichillers are designed for continual operation at ambient temperatures up to +40°C. Installation in an outside areas is possible with optional weather protection and winter operation packages. Pumps are available with an extended pressure and flow rate for applications with a high pressure drops.
The new OLÉ controller combines state-of-the-art technology with simple operation. OLÉ models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).
- Cost-effective and environmentally friendly cooling solution
- High performance
- Exact temperature regulation
- Sturdy stainless steel construction
- Safe permanent service with warning functions
- Easy loading and unloading
- Illuminated fill level indication
- Large, bright OLED display
- Simple operation guided by menu
- USB and RS232 interface
Pilot ONE controller
The multi-touch controller Pilot ONE offers a brilliant 5,7' touchscreen with graphic functions and a comfortable navigation menu in 13 languages. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
Features:
- Plug & Play Technology
- Precise temperature control
- 5.7' touchscreen and comfortable menu navigation
- Easy menu guide available in 6 languages
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- Powerful pressure/suction pump
- Programmer with calendar and clock functions
- 5-point calibration
- RS232 Interface and Pt100 connection
With OLÉ controller. w: Water cooled. * With Environmentally-friendly cooling solution
Pump connection: male G3/4 (includes hose connector for male G3/4)
Unichiller 015 OLÉ Pack (u.)
1
Unichiller 015w OLÉ Temperature range (ºC)
-20 to 40 Temperature stability (ºC)
±0,5 Cooling power -10ºC (W)
700 Cooling power 0ºC (W)
1000 Cooling power 15ºC (W)
1500 Flow (l/min) - Pressure (bar)
29-1 Volume (l)
3,8 Dimensions WxHxD (mm)
350X496X622 Pack (u.)
1
Unichiller 022 OLÉ Temperature range (ºC)
-10 to 40 Temperature stability (ºC)
±0,5 Cooling power -10ºC (W)
1000 Cooling power 0ºC (W)
1600 Cooling power 15ºC (W)
2200 Flow (l/min) - Pressure (bar)
29-1 Volume (l)
3,8 Dimensions WxHxD (mm)
460x590x743 Pack (u.)
1
Unichiller 022w OLÉ Temperature range (ºC)
-10 to 40 Temperature stability (ºC)
±0,5 Cooling power -10ºC (W)
1000 Cooling power 0ºC (W)
1600 Cooling power 15ºC (W)
2200 Flow (l/min) - Pressure (bar)
29-1 Volume (l)
3,8 Dimensions WxHxD (mm)
420x487x579 Pack (u.)
1
Unichiller 025 OLÉ Temperature range (ºC)
-10 to 40 Temperature stability (ºC)
±0,5 Cooling power -10ºC (W)
1200 Cooling power 0ºC (W)
2000 Cooling power 15ºC (W)
2500 Flow (l/min) - Pressure (bar)
29-1 Volume (l)
3,8 Dimensions WxHxD (mm)
460x590x743 Pack (u.)
1
Unichiller 025w OLÉ Temperature range (ºC)
-10 to 40 Temperature stability (ºC)
±0,5 Cooling power -10ºC (W)
1200 Cooling power 0ºC (W)
2000 Cooling power 15ºC (W)
2500 Flow (l/min) - Pressure (bar)
29-1 Volume (l)
3,8 Dimensions WxHxD (mm)
420x487x579 Pack (u.)
1
With Pilot ONE controller. w: Water cooled.
Pump connection: male G3/4 (includes hose connector for male G3/4)
Unichiller UC015 Pilot ONE Controller Pack (u.)
1
Unichiller 015w Temperature range (ºC)
-20 to 40 Temperature stability (ºC)
±0,5 Cooling power -20ºC (W)
700 Cooling power 0ºC (W)
1000 Cooling power 15ºC (W)
1200 Flow (L/min) - Pressure (bar)
29-1 Volume (L)
3.8 Dimensions WxHxD (mm)
350x496x622 Pack (u.)
1
Unichiller 022 Temperature range (ºC)
-10 to 40 Temperature stability (ºC)
±0,5 Cooling power -20ºC (W)
1000 Cooling power 0ºC (W)
1600 Cooling power 15ºC (W)
2200 Flow (L/min) - Pressure (bar)
29-1 Volume (L)
3.8 Dimensions WxHxD (mm)
460x590x743 Pack (u.)
1
Unichiller 022w Temperature range (ºC)
-10 to 40 Temperature stability (ºC)
±0,5 Cooling power -20ºC (W)
1000 Cooling power 0ºC (W)
1600 Cooling power 15ºC (W)
2200 Flow (L/min) - Pressure (bar)
29-1 Volume (L)
3.8 Dimensions WxHxD (mm)
420x487x579 Pack (u.)
1
Unichiller 025 Temperature range (ºC)
-10 to 40 Temperature stability (ºC)
±0,5 Cooling power -20ºC (W)
1200 Cooling power 0ºC (W)
2000 Cooling power 15ºC (W)
2500 Flow (L/min) - Pressure (bar)
29-1 Volume (L)
3.8 Dimensions WxHxD (mm)
460x590x743 Pack (u.)
1
Unichiller 025w Temperature range (ºC)
-10 to 40 Temperature stability (ºC)
±0,5 Cooling power -20ºC (W)
1200 Cooling power 0ºC (W)
2000 Cooling power 15ºC (W)
2500 Flow (L/min) - Pressure (bar)
29-1 Volume (L)
3.8 Dimensions WxHxD (mm)
420x487x579 Pack (u.)
1
