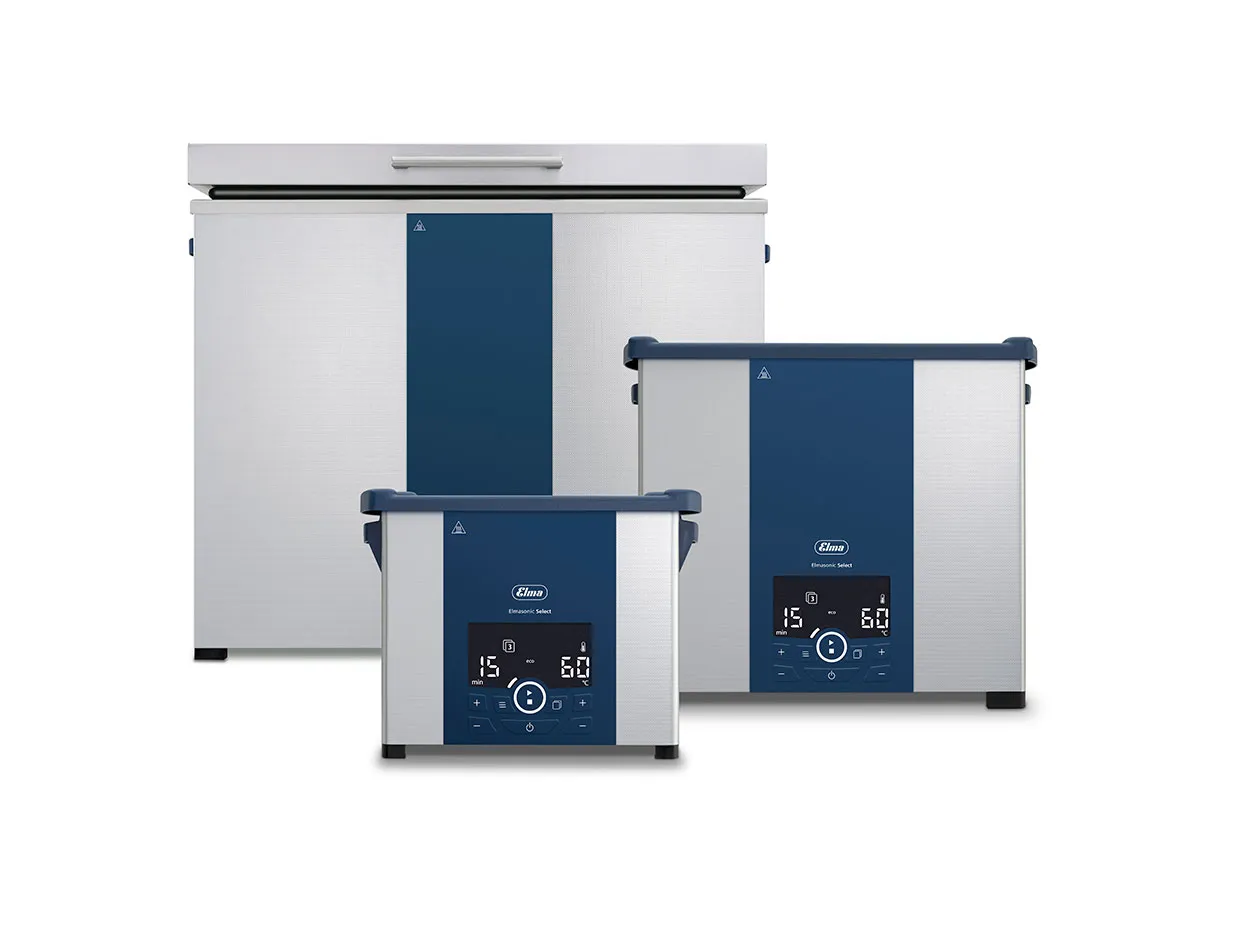

Ultrasonic baths Elmasonic Select
- 37 kHz ultrasonic frequency (control range -2.5 / +5.5 kHz)
- 5 ultrasonic modes for need-based sound field distribution in the ultrasonic bath:
- eco-mode: Gentle cleaning with quieter operation by running the sweep-mode at a slightly lower intensity
- sweep-mode: Even cleaning through even sound field distribution in the ultrasonic bath
- pulse-mode: Removal of even stubborn contamination through pulsating sound field distribution
- dynamic-mode: Combination of the ultrasonic modes sweep and pulse in order to increase the cleaning performance
- degas-mode: Quick degassing of the cleaning liquid and for special applications in the laboratory
- 4 memory locations for cleaning programs, available via quick selection
- Autostart function for temperature-controlled start of cleaning
- Adjustable limit temperature from 40-60 °C (can be switched to °F)
- Digital control unit with wipeable membrane keyboard and easy-to-read display for displaying all operating states
- Optical and acoustic feedback, e.g. at the end of cleaning or when the limit temperature is reached
- Pre-selection of cleaning time: cleaning time adjustable between 1 minute and 6 hours
- Electronic temperature control adjustable in steps of 5 °C from 25-80 °C (can be switched to °F; temperature tolerance -5 / +8 °C)
- Setup menu for individual adjustment of the device functions
- Dry-run detecion (except for Elmasonic Select 500 and 900)
- Automatic safety shutdown after 8 hours
- Splash-proof case and cleaning tank made of stainless steel
- Shut-off valve on the side for emptying the cleaning tank via the outlet on the rear of the device (only for Elmasonic Select 60 to 300)
- Shut-off valve and outlet on the side of the device for emptying the cleaning tank (only for Elmasonic Select 500 and 900)
- Soundproof lids reduce the noise of the ultrasound, the evaporation of water and chemicals, and the waste heat. Thus, energy and costs are saved.
- 2-year warranty from the initial operation, but no longer than 3 years from the production date
Scope of delivery:
- Cover / drip tray (Elmasonic Select 30 - 300); Stainless steel cover or Sound-protection cover (Elmasonic Select 500 / 900)
- Operating manual
- Power cable with rubber connector (2 m length)
- Hose connection grommet (from Elmasonic Select 60), drain hose not included
Available in 11 different sizes 1.6 to 63.7 L.
- 37 kHz ultrasonic frequency (control range -2.5 / +5.5 kHz)
- 5 ultrasonic modes for need-based sound field distribution in the ultrasonic bath:
- eco-mode: Gentle cleaning with quieter operation by running the sweep-mode at a slightly lower intensity
- sweep-mode: Even cleaning through even sound field distribution in the ultrasonic bath
- pulse-mode: Removal of even stubborn contamination through pulsating sound field distribution
- dynamic-mode: Combination of the ultrasonic modes sweep and pulse in order to increase the cleaning performance
- degas-mode: Quick degassing of the cleaning liquid and for special applications in the laboratory
- 4 memory locations for cleaning programs, available via quick selection
- Autostart function for temperature-controlled start of cleaning
- Adjustable limit temperature from 40-60 °C (can be switched to °F)
- Digital control unit with wipeable membrane keyboard and easy-to-read display for displaying all operating states
- Optical and acoustic feedback, e.g. at the end of cleaning or when the limit temperature is reached
- Pre-selection of cleaning time: cleaning time adjustable between 1 minute and 6 hours
- Electronic temperature control adjustable in steps of 5 °C from 25-80 °C (can be switched to °F; temperature tolerance -5 / +8 °C)
- Setup menu for individual adjustment of the device functions
- Dry-run detecion (except for Elmasonic Select 500 and 900)
- Automatic safety shutdown after 8 hours
- Splash-proof case and cleaning tank made of stainless steel
- Shut-off valve on the side for emptying the cleaning tank via the outlet on the rear of the device (only for Elmasonic Select 60 to 300)
- Shut-off valve and outlet on the side of the device for emptying the cleaning tank (only for Elmasonic Select 500 and 900)
- Soundproof lids reduce the noise of the ultrasound, the evaporation of water and chemicals, and the waste heat. Thus, energy and costs are saved.
- 2-year warranty from the initial operation, but no longer than 3 years from the production date
Scope of delivery:
- Cover / drip tray (Elmasonic Select 30 - 300); Stainless steel cover or Sound-protection cover (Elmasonic Select 500 / 900)
- Operating manual
- Power cable with rubber connector (2 m length)
- Hose connection grommet (from Elmasonic Select 60), drain hose not included
Elmasonic Select 30 Total/working volume (L)
2.7/1.6 External dimensions WxHxD (mm)
305x230x170 Tank internal dimensions WxHxD (mm)
220x95x120 Weight (kg)
3.6 Drain hose (Inner diameter, mm)
- Basket internal dimensions WxHxD (mm)
195x50x105 Maximum basket loading (Kg)
1.0 Heating power (W)
200 Pack (u.)
1
Elmasonic Select 40 Total/working volume (L)
3.9/2.9 External dimensions WxHxD (mm)
305x280x170 Tank internal dimensions WxHxD (mm)
215x145x115 Weight (kg)
3.8 Drain hose (Inner diameter, mm)
- Basket internal dimensions WxHxD (mm)
190x75x105 Maximum basket loading (Kg)
3.0 Heating power (W)
200 Pack (u.)
1
Elmasonic Select 60 Total/working volume (L)
5.9/4.3 External dimensions WxHxD (mm)
370x275x210 Tank internal dimensions WxHxD (mm)
275x145x125 Weight (kg)
5.2 Drain hose (Inner diameter, mm)
- Basket internal dimensions WxHxD (mm)
255x75x115 Maximum basket loading (Kg)
5.0 Heating power (W)
400 Pack (u.)
1
Elmasonic Select 80 Total/working volume (L)
9.3/6.8 External dimensions WxHxD (mm)
570x280x195 Tank internal dimensions WxHxD (mm)
475x145x110 Weight (kg)
6.9 Drain hose (Inner diameter, mm)
12.0 Basket internal dimensions WxHxD (mm)
455x75x106 Maximum basket loading (Kg)
5.0 Heating power (W)
600 Pack (u.)
1
Elmasonic Select 100 Total/working volume (L)
9.5/6.8 External dimensions WxHxD (mm)
380x280x300 Tank internal dimensions WxHxD (mm)
280x145x220 Weight (kg)
6.2 Drain hose (Inner diameter, mm)
12.0 Basket internal dimensions WxHxD (mm)
255x70x200 Maximum basket loading (Kg)
6.0 Heating power (W)
400 Pack (u.)
1
Elmasonic Select 120 Total/working volume (L)
12.9/10.0 External dimensions WxHxD (mm)
380x330x300 Tank internal dimensions WxHxD (mm)
300x195x215 Weight (kg)
7.7 Drain hose (Inner diameter, mm)
12.0 Basket internal dimensions WxHxD (mm)
250x110x190 Maximum basket loading (Kg)
7.0 Heating power (W)
800 Pack (u.)
1
Elmasonic Select 150 Total/working volume (L)
14.6/8.7 External dimensions WxHxD (mm)
575x230x360 Tank internal dimensions WxHxD (mm)
485x195x280 Weight (kg)
8.8 Drain hose (Inner diameter, mm)
12.0 Basket internal dimensions WxHxD (mm)
455x45x250 Maximum basket loading (Kg)
7.0 Heating power (W)
800 Pack (u.)
1
Elmasonic Select 180 Total/working volume (L)
17.8/14.2 External dimensions WxHxD (mm)
405x330x360 Tank internal dimensions WxHxD (mm)
300x195x270 Weight (kg)
10.2 Drain hose (Inner diameter, mm)
12.0 Basket internal dimensions WxHxD (mm)
280x115x250 Maximum basket loading (Kg)
8.0 Heating power (W)
800 Pack (u.)
1
Elmasonic Select 300 Total/working volume (L)
27.5/22.0 External dimensions WxHxD (mm)
575x330x360 Tank internal dimensions WxHxD (mm)
475x195x270 Weight (kg)
12.2 Drain hose (Inner diameter, mm)
12.0 Basket internal dimensions WxHxD (mm)
455x110x250 Maximum basket loading (Kg)
10.0 Heating power (W)
1200 Pack (u.)
1
Elmasonic Select 500 Total/working volume (L)
49.7/40.3 External dimensions WxHxD (mm)
775x505x425 Tank internal dimensions WxHxD (mm)
500x290x330 Weight (kg)
30.4 Drain hose (Inner diameter, mm)
19.0 Basket internal dimensions WxHxD (mm)
460x195x300 Maximum basket loading (Kg)
20.0 Heating power (W)
1600 Pack (u.)
1
Elmasonic Select 900 Total/working volume (L)
89.0/63.7 External dimensions WxHxD (mm)
875x505x595 Tank internal dimensions WxHxD (mm)
600x285x500 Weight (kg)
43.4 Drain hose (Inner diameter, mm)
19.0 Basket internal dimensions WxHxD (mm)
545x190x460 Maximum basket loading (Kg)
30.0 Heating power (W)
2000 Pack (u.)
1
Elmasonic Select 500 with sound protection cover Total/working volume (L)
49.7/40.3 External dimensions WxHxD (mm)
775x975x510 Tank internal dimensions WxHxD (mm)
500x290x330 Weight (kg)
34.7 Drain hose (Inner diameter, mm)
19.0 Basket internal dimensions WxHxD (mm)
460x195x300 Maximum basket loading (Kg)
20.0 Heating power (W)
1600 Pack (u.)
1
Elmasonic Select 900 with sound protection cover Total/working volume (L)
89.0/63.7 External dimensions WxHxD (mm)
875x1145x640 Tank internal dimensions WxHxD (mm)
600x285x500 Weight (kg)
49.3 Drain hose (Inner diameter, mm)
19.0 Basket internal dimensions WxHxD (mm)
545x190x460 Maximum basket loading (Kg)
30.0 Heating power (W)
2000 Pack (u.)
1
