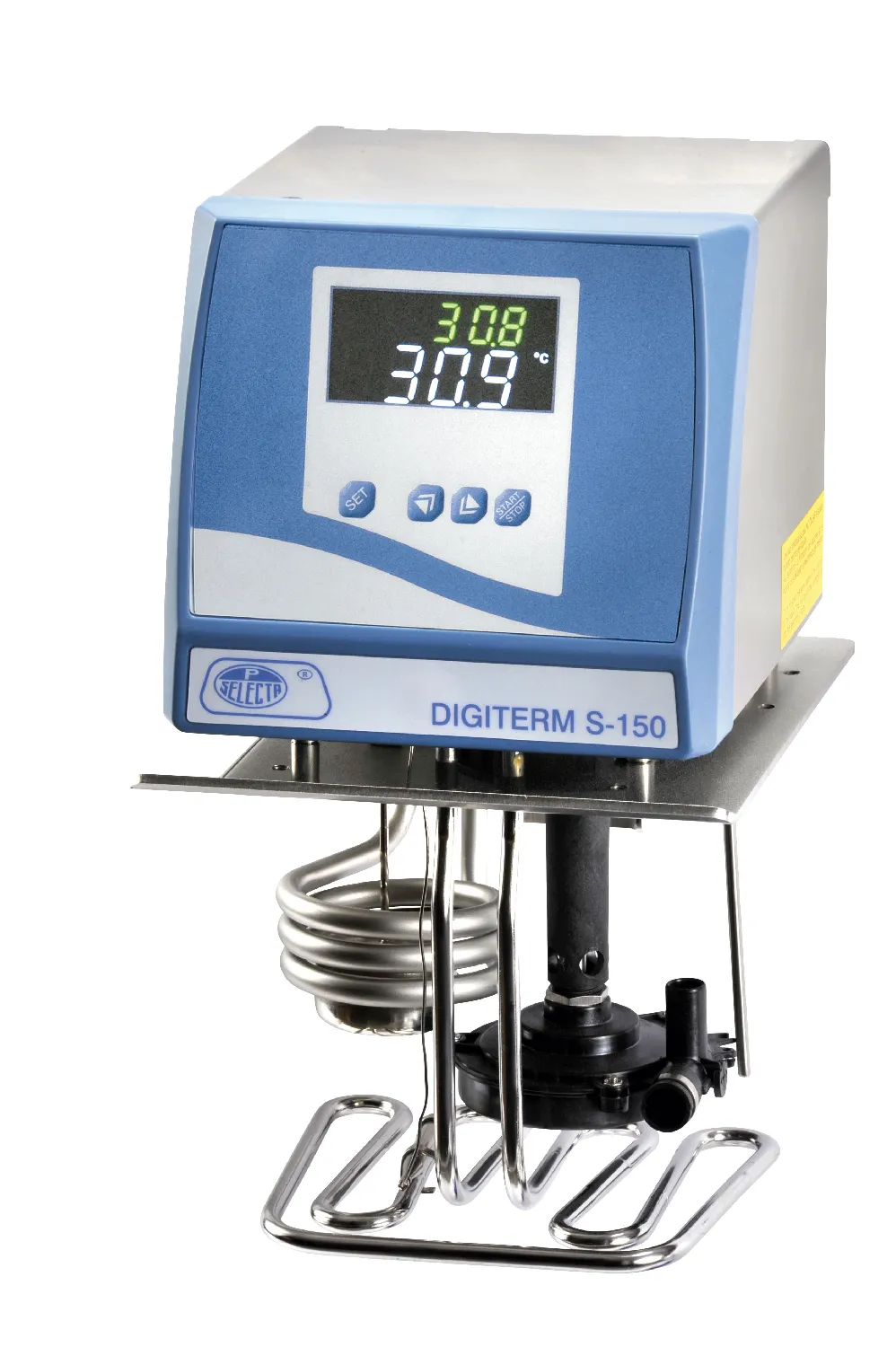

Thermostats immersion Digiterm S-150 and Digiterm TFT-200
Heating element made of stainless steel INCOLOY resistant to high temperatures and corrosive environments.
Circulation Pump for internal or external temperature control. (Polarimeters, refractometers and viscometers, etc).
Cooling coil to maintain ambient temperatures using tap water.
External temperature control connection using a Pt 100 probe.
External metal case coated in a corrosive resistant epoxy.
All parts in contact with liquid are made of AISI 304 stainless steel.
- Maximum working volume to maintain maximum temperature: 20 litres.
- A clamp and finger screw attach the unit to the tank, alternatively the extendible support bridge accessory can be used.
- Minimum fixing depth to the tank: 14 cm.
- Rear connection for additional OT100 probe. Automatic selection (Digiterm S-150 model)
- RS-232 interface for computer control or printing data (Digiterm TFT-200 model)
TFT:
- Large amount of information exposed in one screen.
- State process and its representations sequences using realtime charts.
- Data Logging , incidencts and record.
- User guide in the display.
Temperature probe Pt 100.
Heating element made of stainless steel INCOLOY resistant to high temperatures and corrosive environments.
Circulation Pump for internal or external temperature control. (Polarimeters, refractometers and viscometers, etc).
Cooling coil to maintain ambient temperatures using tap water.
External temperature control connection using a Pt 100 probe.
External metal case coated in a corrosive resistant epoxy.
All parts in contact with liquid are made of AISI 304 stainless steel.
- Maximum working volume to maintain maximum temperature: 20 litres.
- A clamp and finger screw attach the unit to the tank, alternatively the extendible support bridge accessory can be used.
- Minimum fixing depth to the tank: 14 cm.
- Rear connection for additional OT100 probe. Automatic selection (Digiterm S-150 model)
- RS-232 interface for computer control or printing data (Digiterm TFT-200 model)
TFT:
- Large amount of information exposed in one screen.
- State process and its representations sequences using realtime charts.
- Data Logging , incidencts and record.
- User guide in the display.
Thermostats
DIGITERM S-150 Temperature range (ºC)
+5 to 150 Stability (±ºC)
0.1 External dimensions WxHxD (mm)
180x280x190 Pump pressure/flow
150 mbar/ 12 l/min Consumption (W)
2000 Weight (Kg)
3,9 Pack (u.)
1
DIGITERM TFT-200 Temperature range (ºC)
+5 to 200 Stability (±ºC)
0.1 at 200ºC External dimensions WxHxD (mm)
180x280x190 Pump pressure/flow
150 mbar/ 12 l/min Consumption (W)
2060 Weight (Kg)
4,5 Pack (u.)
1
Accessories
Extension support bridge, made of AISI 304 stainless steel, adjustable. For apertures from 22 to 44 cm across Pack (u.)
1
Pt100 temperature sensor with handle Pack (u.)
1
Baths. Double skinned with an AISI 304 stainless steel exterior and internal bath of AISI 310 stainless steel. Stainless steel baths, thermally insulated. Ideal for low temperatures. with internal expanded foam insulation that prevents external condensation or heat loss, working temperature range from -40ºC to +90ºC.
Metallic Capacity (l)
9 Usable dimensions WxHxD (mm)
290x150x220 External dimensions WxHxD (mm)
340x200x280 Weight (Kg)
3,5 Pack (u.)
1
Metallic Capacity (l)
12 Usable dimensions WxHxD (mm)
300x150x310 External dimensions WxHxD (mm)
370x200x350 Weight (Kg)
4,3 Pack (u.)
1
Metallic with drain tap and lifting handle Capacity (l)
20 Usable dimensions WxHxD (mm)
480x150x300 External dimensions WxHxD (mm)
550x200x350 Weight (Kg)
6,6 Pack (u.)
1
Metallic with drain tap and lifting handle Capacity (l)
27 Usable dimensions WxHxD (mm)
480x200x300 External dimensions WxHxD (mm)
550x250x350 Weight (Kg)
7,6 Pack (u.)
1
Metallic with drain tap and lifting handle Capacity (l)
45 Usable dimensions WxHxD (mm)
620x150x500 External dimensions WxHxD (mm)
700x230x560 Weight (Kg)
11 Pack (u.)
1
Special Metal Capacity (l)
9 Usable dimensions WxHxD (mm)
290x150x220 External dimensions WxHxD (mm)
400x240x340 Weight (Kg)
6 Pack (u.)
1
Special Metal with drain tap and lifting handle Capacity (l)
20 Usable dimensions WxHxD (mm)
480x150x300 External dimensions WxHxD (mm)
610x240x410 Weight (Kg)
9 Pack (u.)
1
Special Metal with drain tap and lifting handle Capacity (l)
27 Usable dimensions WxHxD (mm)
480x200x300 External dimensions WxHxD (mm)
610x290x410 Weight (Kg)
11 Pack (u.)
1
