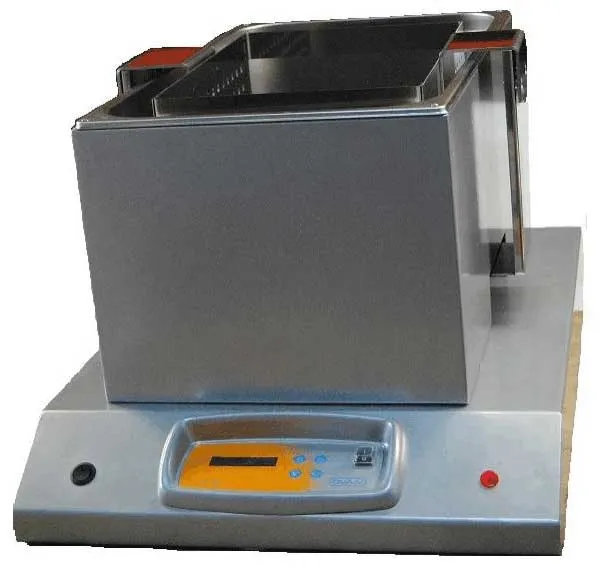

Thermostatized Digital Bath with Orbital Shaking
Features:
- Speed adjustable, controlled by microprocessor
- Smooth and progressive start and stop
- Mobile inner tank made of stainless steel AISI 304, and metallic housing with Epoxi paint
- Double safety thermostat
- Digital Display LCD backlighted indicating the selected and actual speed, temperature and timer (with audible alarm)
- Membrane push-button control
- Automatic restart after unexpected shut down keeping the same parameters as before the incident. An incident sign appears on the display
- Quiet operation. Suitable for continuous running
Technical data:
- Max. load (kg): 10
- Total power (W): 1650
- Timer (min): 0-120
- Inner dimensions (mm): 350x260x170
- Protection IP54
Bath with orbital movement.
Features:
- Speed adjustable, controlled by microprocessor
- Smooth and progressive start and stop
- Mobile inner tank made of stainless steel AISI 304, and metallic housing with Epoxi paint
- Double safety thermostat
- Digital Display LCD backlighted indicating the selected and actual speed, temperature and timer (with audible alarm)
- Membrane push-button control
- Automatic restart after unexpected shut down keeping the same parameters as before the incident. An incident sign appears on the display
- Quiet operation. Suitable for continuous running
Technical data:
- Max. load (kg): 10
- Total power (W): 1650
- Timer (min): 0-120
- Inner dimensions (mm): 350x260x170
- Protection IP54
**It must be ordered together with Tribox case (00005-0302)
OBS10-27P Temperature range (ºC)
5 above ambient Temp. - 100 Temperature stability (ºC)
0.1 Maximum volume (l)
27 Amplitude (mm)
10 Speed (rpm)
30-150 Resolution (rpm)
5 Pack (u.)
1
Accessories. The platforms must be ordered with the equipment since they are installed in the factory
Cover of stainless steel (for bath of 27l) Pack (u.)
1
Universal support with 5 rollers (for bath of 27l) Pack (u.)
1
Erlenmeyers flash spring clip 50 ml. (max 30u.) Pack (u.)
1
Support platform for erlenmeyer flasks (for bath of 27l) Pack (u.)
1
Fastening clips for Erlenmeyer flask 100ml (20ud.) Pack (u.)
1
Fastening clips for Erlenmeyer flask 250ml (12ud.) Pack (u.)
1
Tribox box Pack (u.)
1
Fastening clips for Erlenmeyer flask 500ml (9ud.) Pack (u.)
1
Fastening clips for Erlenmeyer flask 1.000ml (6ud.) Pack (u.)
1
Fastening rings to fix different vessels Pack (u.)
2
