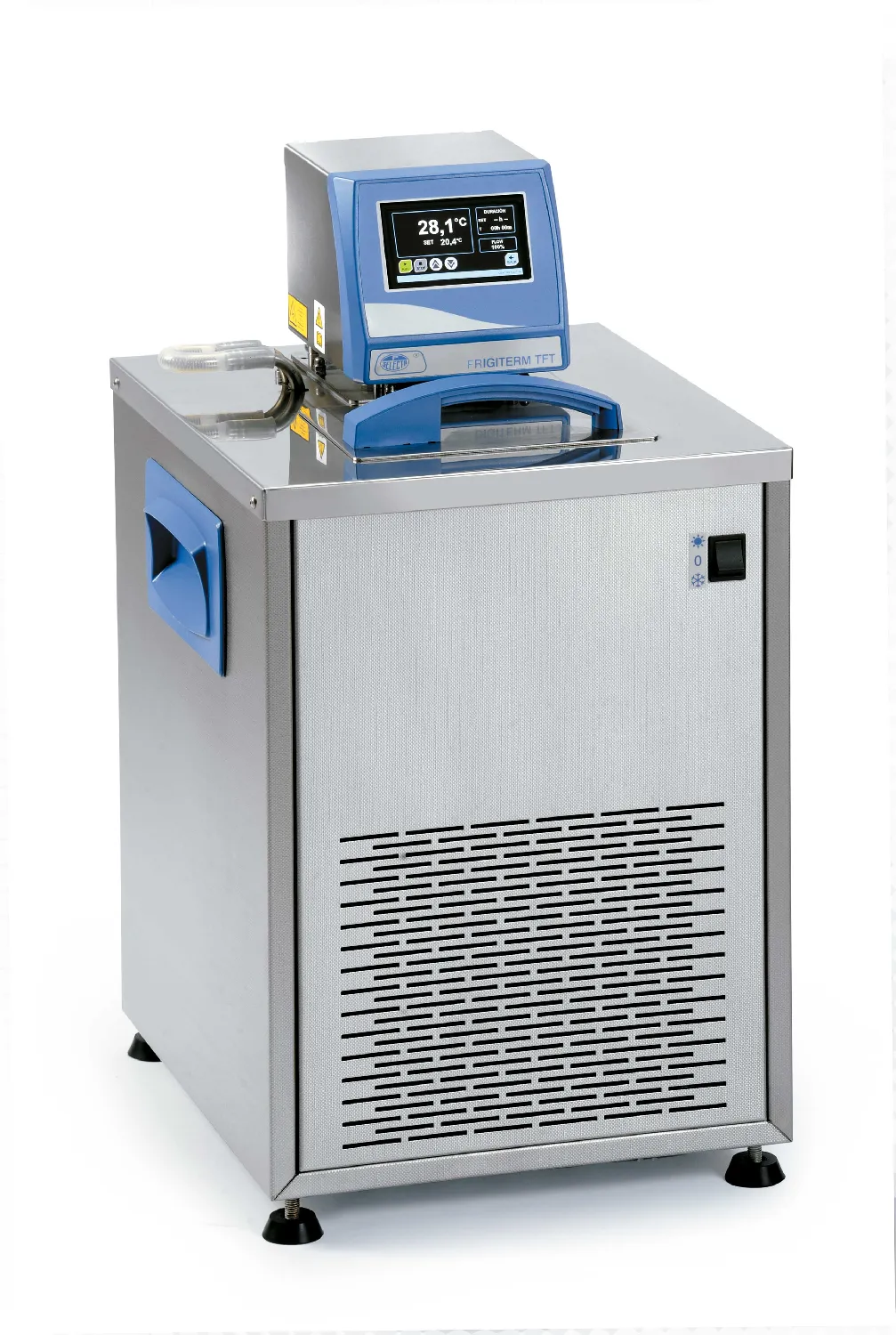

Refrigerated recirculation baths Frigiterm-10 and Frigiterm-30

Temperature probe Pt 100.
Heating element made of stainless steel INCOLOY resistant to high temperatures and corrosive environments.
Circulation Pump for internal or external temperature control. (Polarimeters, refractometers and viscometers, etc).
Cooling coil to maintain ambient temperatures using tap water.
External temperature control connection using a Pt 100 probe.
External metal case coated in a corrosive resistant epoxy.
All parts in contact with liquid are made of AISI 304 stainless steel.
- Maximum working volume to maintain maximum temperature: 8 litres.
- AISI 304 stainless steel top and lid with an inner tank of AISI 310 stainless steel.
- Complete with a pump for internal and external liquid circulation with inlet and outlet connectors.
- A hermetically sealed compressor is mounted on anti-vibration mounts.
- A drain tap is placed at the side of the unit.
- RS-232, USB and Ethernet interfaces

TFT:
- Large amount of information exposed in one screen.
- State process and its representations sequences using realtime charts .
- Data Logging , incidencts and record.
- User guide in the display.

Refrigerated recirculation bath Frigiterm-10 and Frigiterm-30. J.P. SELECTA. Model: FRIGITERM-10. Capacity (l): 8. T Range (ºC): -10 to +100. Usable dim. WxHxD (cm): 20x12x14. Pump pressure/flow: 150mbar/12l/min. Consumption (W): 1150

Model
FRIGITERM-TFT-10-S Capacity (l)
8 Temperature range (ºC)
-10 to +100 Usable dimensions WxHxD (mm)
200x120x140 External dimensions WxHxD (mm)
660x360x440 Pump pressure/flow
150mbar/12l/min Consumption (W)
1150 Weight (Kg)
28 Compressor power H.P.
1/8 Pack (u.)
1

Reference
0193000546

Packaging
x u.

Price
Buy

Disponibility

Check stock

Refrigerated recirculation bath Frigiterm-10 and Frigiterm-30. J.P. SELECTA. Model: FRIGITERM-30. Capacity (l): 8. T Range (ºC): -30 to +100. Usable dim. WxHxD (cm): 20x12x14. Pump pressure/flow: 150mbar/12l/min. Consumption (W): 1460

Model
FRIGITERM-TFT-30-S Capacity (l)
8 Temperature range (ºC)
-30 to +100 Usable dimensions WxHxD (mm)
200x12x0140 External dimensions WxHxD (mm)
660x360x440 Pump pressure/flow
150mbar/12l/min Consumption (W)
1460 Weight (Kg)
30 Compressor power H.P.
3/8 Pack (u.)
1

Reference
0193000547

Packaging
x u.

Price
Buy

Disponibility

Check stock
