Minichillers - Compact cold circulation refrigerators

The compact Minichillers are an economic and environmentally friendly cooling solution for many laboratory applications. They take up little space on the lab table and are therefore suitable for cooling reactor blocks, vacuum pumps, rotary evaporators or heat exchangers. Minichillers allow stable application conditions due to constant values for temperature, pressure and throughflow quantities. They are also perfect for continuous operation at ambient temperatures up to 40°C. Despite the economic purchase price the coolers are well equipped and have a large temperature indicator, fill level indicator, as well as status LEDs for the pump, cooling and heating. A 1 kW heater is optionally available with which the temperature range can be extended to +100°C. Minichillers are available as both air and water cooled models and use natural refrigerants.

The new OLÉ controller combines state-of-the-art technology with simple operation. OLÉ models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

Pump connection: male M16x1 (include hose connector NW8)

- Environmentally-friendly, economic cooling solution
- High efficiency
- Precise temperature control
- Simple operation with menu navigation
- Robust stainless construction
- Reliable continuously operation with warning functions
- Easy to fill and empty
- Illuminated filling level indicator
- Simple operation guided by menu
- USB and RS232 interfaces

* Permissible temperature in the return line of 80 °C
** Water cooled

Minichiller 280 OLÉ. HUBER. Temp. range (ºC): -5 to 40. Temp. stability (ºC): ±1. Cooler Power (kW): 0,28 (15ºC). Pressure (l/min) - bar: 14-0,25. Suction (l/min) - bar: 10,5-0,17. Volume (l): 2. Dim. WxHxD (mm): 255x380 x360

Type
Minichiller 280 OLÉ Temperature range (ºC)
-5 to 40 Temperature stability (ºC)
±1 Cooling power (kW)
0.2 (0ºC) Flow (l/min) - Pressure (bar)
14-0.25 Suction (l/min) - bar
10.5-0.17 Volume (l)
2 Dimensions WxHxD (mm)
255x380x360 Pack (u.)
1

Reference
3006010598

Packaging
x u.

Price
Buy

Disponibility

Check stock

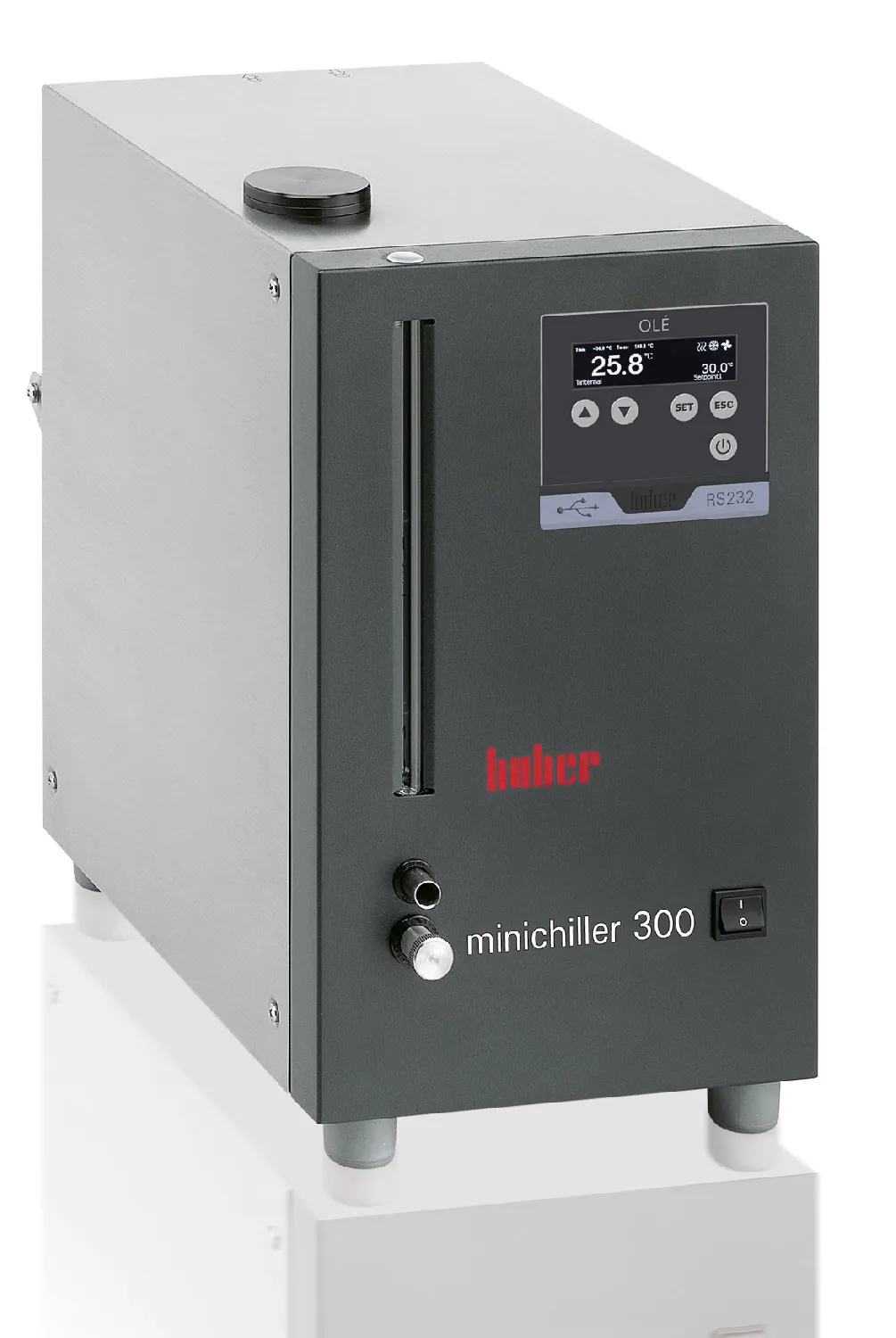

Minichiller 300 OLÉ. HUBER. Temp. range (ºC): -20 to 40 (80). Temp. stability (ºC): ±0,5. Cooler Power (kW): 0,3 (15ºC). Pressure (l/min) - bar: 14-0,25. Suction (l/min) - bar: 10,5-0,17. Volume (l): 1,4. Dim. WxHxD (mm): 225x380 x360

Type
Minichiller 300 OLÉ Temperature range (ºC)
-20 to 40 (80)* Temperature stability (ºC)
±0,5 Cooling power (kW)
0.2 (0ºC), 0.07 (-20ºC) Flow (l/min) - Pressure (bar)
14-0.25 Suction (l/min) - bar
10.5-0.17 Volume (l)
1.4 Dimensions WxHxD (mm)
225x380x360 Pack (u.)
1

Reference
3006008998

Packaging
x u.

Price
Buy

Disponibility

Check stock

Minichiller 300w OLÉ refrigerado por agua. HUBER. Temp. range (ºC): -20 to 40 (80). Temp. stability (ºC): ±0,5. Cooler Power (kW): 0,3 (15ºC). Pressure (l/min) - bar: 14-0,25. Suction (l/min) - bar: 10,5-0,17. Volume (l): 1,4. Dim. WxHxD (mm): 225x380 x360

Type
Minichiller 300w OLÉ** Temperature range (ºC)
-20 to 40 (80)* Temperature stability (ºC)
±0,5 Cooling power (kW)
0.2 (0ºC), 0.07 (-20ºC) Flow (l/min) - Pressure (bar)
14-0.25 Suction (l/min) - bar
10.5-0.17 Volume (l)
1.4 Dimensions WxHxD (mm)
225x380x360 Pack (u.)
1

Reference
3006009098

Packaging
x u.

Price
Buy

Disponibility

Check stock

Minichiller 600 OLÉ. HUBER. Temp. range (ºC): -20 to 40. Temp. stability (ºC): ±0,5. Cooler Power (kW): 0,6 (15ºC). Pressure (l/min) - bar: 24-0,7. Suction (l/min) - bar: 18-0,4. Volume (l): 2,8. Dim. WxHxD (mm): 280x424 x490

Type
Minichiller 600 OLÉ Temperature range (ºC)
-20 to 40 Temperature stability (ºC)
±0,5 Cooling power (kW)
0.5 (0ºC), 0.15 (-20ºC) Flow (l/min) - Pressure (bar)
24-0.7 Suction (l/min) - bar
18-0.4 Volume (l)
2.8 Dimensions WxHxD (mm)
280x424x490 Pack (u.)
1

Reference
3006009898

Packaging
x u.

Price
Buy

Disponibility

Check stock

Minichiller 800 OLÉ. HUBER. Temperature range (ºC): -20 to 40. Temperature stability (ºC): ±0,5. Cooling power (kW): 0.8 (15ºC). Flow (l/min) - Pressure (bar): 24-0.7. Suction (l/min) - bar: 18-0.4. Volume (l): 2.8. Dimensions WxHxD (mm): 280x424x511

Type
Minichiller 800 OLÉ Temperature range (ºC)
-20 to 40 Temperature stability (ºC)
±0,5 Cooling power (kW)
0.8 (15ºC) Flow (l/min) - Pressure (bar)
24-0.7 Suction (l/min) - bar
18-0.4 Volume (l)
2.8 Dimensions WxHxD (mm)
280x424x511 Pack (u.)
1

Reference
3079000198

Packaging
x u.

Price
Buy

Disponibility

Check stock

Minichiller 1000 OLÉ. HUBER. Temperature range (ºC): -20 to 40. Temperature stability (ºC): ±0,5. Cooling power (kW): 1 (15ºC). Flow (l/min) - Pressure (bar): 24-0.7. Suction (l/min) - bar: 18-0.4. Volume (l): 2.8. Dimensions WxHxD (mm): 280x424x511

Type
Minichiller 1000 OLÉ Temperature range (ºC)
-20 to 40 Temperature stability (ºC)
±0,5 Cooling power (kW)
1 (15ºC) Flow (l/min) - Pressure (bar)
24-0.7 Suction (l/min) - bar
18-0.4 Volume (l)
2.8 Dimensions WxHxD (mm)
280x424x511 Pack (u.)
1

Reference
3080000198

Packaging
x u.

Price
Buy

Disponibility

Check stock

Minichiller 1200 OLÉ. HUBER. Temperature range (ºC): -20 to 40. Temperature stability (ºC): ±0,5. Cooling power (kW): 1.2 (15ºC). Flow (l/min) - Pressure (bar): 24-0.7. Suction (l/min) - bar: 18-0.4. Volume (l): 2.8. Dimensions WxHxD (mm): 280x424x511

Type
Minichiller 1200 OLÉ Temperature range (ºC)
-20 to 40 Temperature stability (ºC)
±0,5 Cooling power (kW)
1.2 (15ºC) Flow (l/min) - Pressure (bar)
24-0.7 Suction (l/min) - bar
18-0.4 Volume (l)
2.8 Dimensions WxHxD (mm)
280x424x511 Pack (u.)
1

Reference
3078000198

Packaging
x u.

Price
Buy

Disponibility

Check stock
