Hydro waterbaths for evaporation

The special baths for gentle vaporization work from columns, Erlenmeyer flasks or beakers are suitable for unattended continuous operation in the laboratory thanks to water level controllers and a water shortage protection. Hydro vaporization water baths are available in five models, all equipped with a removable perforated cover with a multi-part ring set made of heat-resistant plastic.
- Vaporization water bath for gentle steaming work
- Temperature adjustment via rotary knob with temperature scale
- 1-point temperature controller
- Water deficiency protection
- Adjustable water level regulator, sieve bottom and ring set as standard
- Bath interior, cover, sieve plate and heating element are made of stainless steel
- The cover frame and the multi-part ring set are removable (H 5 V model)
- An internal hole is provided on the cover frame to accommodate stand rods (H 5 V model)
- Support rods (length 600 mm, diameter 12 mm), made of stainless steel, are included as standard (H 6 V and H 9 V models)
- All hole covers consist of a multi-part ring set and are removable ( H 9 V, H 11 V and H 19 V models)

H 5 V Hydro waterbaths for evaporation. LAUDA. Temperature range (ºC): 25 - 100. Temperature stability (ºC): ±3. Maximum volume (l): 5. Number of opennings: 1. Opennings diameter (mm): 192. Depth (mm): 120. Heating power (kW): 1. Weight (kg): 8.1

Model
H 5 V Temperature range (ºC)
25 - 100 Temperature stability (ºC)
±3 Maximum volume (l)
5 Number of opennings
1 Opennings diameter (mm)
192 Depth (mm)
120 Heating power (kW)
1 Weight (kg)
8.1 Pack (u.)
1

Reference
LAUL003066

Packaging
x u.

Price
Buy

Disponibility

Check stock

H 6 V Hydro waterbaths for evaporation. LAUDA. Temperature range (ºC): 25 - 100. Temperature stability (ºC): ±3. Maximum volume (l): 5.3. Number of opennings: 4. Opennings diameter (mm): 131. Depth (mm): 90. Heating power (kW): 1. Weight (kg): 12.4

Model
H 6 V Temperature range (ºC)
25 - 100 Temperature stability (ºC)
±3 Maximum volume (l)
5.3 Number of opennings
4 Opennings diameter (mm)
131 Depth (mm)
90 Heating power (kW)
1 Weight (kg)
12.4 Pack (u.)
1

Reference
LAUL003067

Packaging
x u.

Price
Buy

Disponibility

Check stock

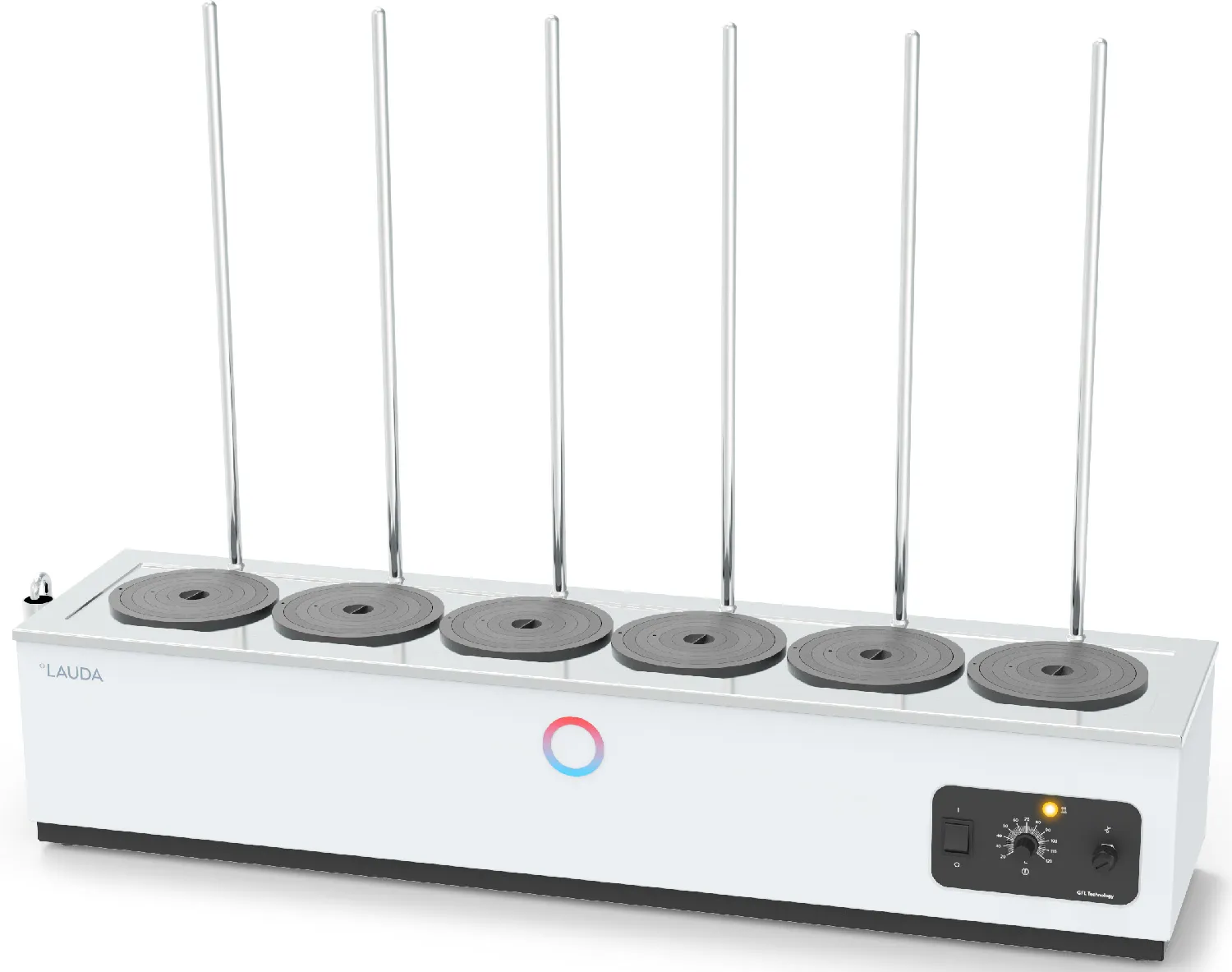

H 9 V Hydro waterbaths for evaporation. LAUDA. Temperature range (ºC): 25 - 100. Temperature stability (ºC): ±3. Maximum volume (l): 8. Number of opennings: 6. Opennings diameter (mm): 131. Depth (mm): 90. Heating power (kW): 1.5. Weight (kg): 17

Model
H 9 V Temperature range (ºC)
25 - 100 Temperature stability (ºC)
±3 Maximum volume (l)
8 Number of opennings
6 Opennings diameter (mm)
131 Depth (mm)
90 Heating power (kW)
1.5 Weight (kg)
17 Pack (u.)
1

Reference
LAUL003068

Packaging
x u.

Price
Buy

Disponibility

Check stock

H 11 V Hydro waterbaths for evaporation. LAUDA. Temperature range (ºC): 25 - 100. Temperature stability (ºC): ±3. Maximum volume (l): 10.5. Number of opennings: 6. Opennings diameter (mm): 91. Depth (mm): 100. Heating power (kW): 1.5. Weight (kg): 5.7

Model
H 11 V Temperature range (ºC)
25 - 100 Temperature stability (ºC)
±3 Maximum volume (l)
10.5 Number of opennings
6 Opennings diameter (mm)
91 Depth (mm)
100 Heating power (kW)
1.5 Weight (kg)
5.7 Pack (u.)
1

Reference
LAUL003069

Packaging
x u.

Price
Buy

Disponibility

Check stock

H 19 V Hydro waterbaths for evaporation. LAUDA. Temperature range (ºC): 25 - 100. Temperature stability (ºC): ±3. Maximum volume (l): 18.4. Number of opennings: 8. Opennings diameter (mm): 111. Depth (mm): 100. Heating power (kW): 1.5. Weight (kg): 7.9

Model
H 19 V Temperature range (ºC)
25 - 100 Temperature stability (ºC)
±3 Maximum volume (l)
18.4 Number of opennings
8 Opennings diameter (mm)
111 Depth (mm)
100 Heating power (kW)
1.5 Weight (kg)
7.9 Pack (u.)
1

Reference
LAUL003070

Packaging
x u.

Price
Buy

Disponibility

Check stock
