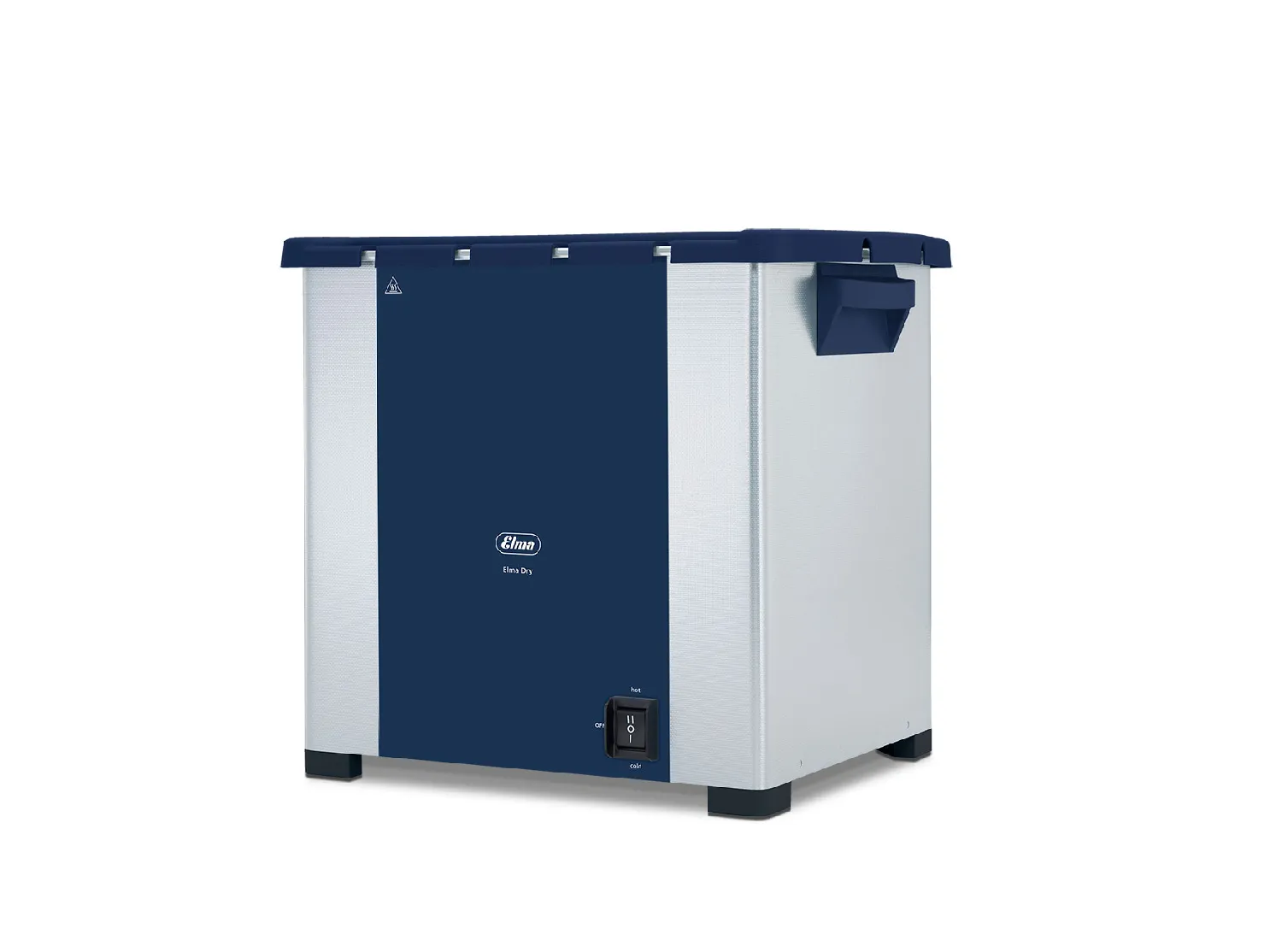

Elma Dry drying units

The Elma Dry units are available in three sizes: 30, 120 and 300. After cleaning in the ultrasonic bath, the items in the Elma basket are dried easily and conveniently in the Elma Dry. Simple and quick operation via a toggle switch with three positions: Off, warm air, cold air. Its cold/hot-air blower (70 °C) ensures that even delicate parts can be dried gently. In cold-air mode, the parts can also be cooled down quickly. The cover includes ventilation slits that maximise the air turbulence and discharge the humid air to the outside. At the same time, the cover reduces energy consumption. The dust filter (33 ppi) on the underside of the base is replaceable and prevents dust from the room air from re-contaminating the material to be dried. Stainless steel housing and drip-proof. Automatic safety shutdown if temperature is too high.

Technical data:
- Maximum temperature (ºC): 70
- Heating time (min): 15 approx.
- Tension: 220-240 / 50 Hz

Scope of delivery:
- 30 model: Elma Dry 30 drying unit, 1 cover, 1 power cable with rubber connector (2m length) and operating manual
- 120 model: Elma Dry 120 drying unit, 1 cover, 1 power cable with rubber connector (2m length) and operating manual
- 300 model: Elma Dry 300 drying unit, 1 cover, 1 power cable with rubber connector (2m length) and operating manual

Elma Dry 30 drying unit. ELMA. Maximum basket loading (Kg): 1. Basket size: 1 basket 30/40 Elmasonic S, P, Med, Select, Easy. External dimensions WxHxD (mm): 300x219x186. Internal dimensions WxHxD (mm): 220x95x120. Weight (kg): 3.6

Model
Elma Dry 30 Maximum basket loading (Kg)
1 Basket size
1 basket 30/40 Elmasonic S, P, Med, Select, Easy External dimensions WxHxD (mm)
300x219x186 Internal dimensions WxHxD (mm)
220x95x120 Weight (kg)
3.6 Pack (u.)
1

Reference
ELM1082175

Packaging
x u.

Price
Buy

Disponibility

Check stock

Elma Dry 120 drying unit. ELMA. Maximum basket loading (Kg): 7. Basket size: 2 baskets 30/40 or 1 basket 100/120 Elmasonic S, P, Med, Select, Easy, 2 baskets 30 or 1 basket 60 Elmasonic xtra TT, 1 basket 30 or 1 basket 50 xtra 30, 50, 70, 150. External dimensions WxHxD (mm): 362x322x285. Internal dimensions WxHxD (mm): 275x195x215. Weight (kg): 6.1

Model
Elma Dry 120 Maximum basket loading (Kg)
7 Basket size
2 baskets 30/40 or 1 basket 100/120 Elmasonic S, P, Med, Select, Easy 2 baskets 30 or 1 basket 60 Elmasonic xtra TT 1 basket 30 or 1 basket 50 xtra 30, 50, 70, 150 External dimensions WxHxD (mm)
362x322x285 Internal dimensions WxHxD (mm)
275x195x215 Weight (kg)
6.1 Pack (u.)
1

Reference
ELM1078542

Packaging
x u.

Price
Buy

Disponibility

Check stock

Elma Dry 300 drying unit. ELMA. Maximum basket loading (Kg): 12. Basket size: 3 baskets 60 or 1 basket 60 + 1 basket 100/120 or 2 baskets 100/120 or 1 basket 150/300 Elmasonic S, P, Med, Select, Easy, 1 basket 30 or 1 basket 60 or 1 basket 120 or 1 basket 200 Elmasonic xtra TT, 3 baskets 30 or 1 basket 70 or 1 basket 150 xtra 30, 50, 70, 150. External dimensions WxHxD (mm): 568x322x347. Internal dimensions WxHxD (mm): 475x195x270. Weight (kg): 10.2

Model
Elma Dry 300 Maximum basket loading (Kg)
12 Basket size
3 baskets 60 or 1 basket 60 + 1 basket 100/120 or 2 baskets 100/120 or 1 basket 150/300 Elmasonic S, P, Med, Select, Easy 1 basket 30 or 1 basket 60 or 1 basket 120 or 1 basket 200 Elmasonic xtra TT 3 baskets 30 or 1 basket 70 or 1 basket 150 xtra 30, 50, 70, 150 External dimensions WxHxD (mm)
568x322x347 Internal dimensions WxHxD (mm)
475x195x270 Weight (kg)
10.2 Pack (u.)
1

Reference
ELM1078575

Packaging
x u.

Price
Buy

Disponibility

Check stock
