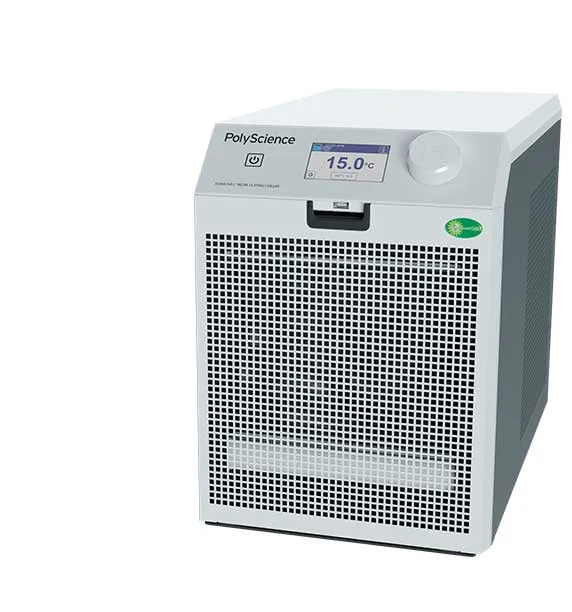

DuraChill® portable chillers
Features:
- Choice of Turbine or Positive Displacement pump
- Intuitive touch screen display with a choice of 5 operating languages: English, Spanish, French, German and Mandarin
- Home screen simultaneously displays set temperature, actual temperature, fluid pressure, fluid level, air filter status and timer
- Self-changing air filter system eliminates preventative maintenance by automatically changing the filter media at user-definable intervals.
- Continuous fluid level monitoring protects pump and prevents freezing
- Patented Whispercool® noise reduction system reduces operating noise levels to the almost imperceptible levels while maintaining optimal cooling performance
- Reduced global warming potential through a highly optimized refrigeration system design that greatly reduces the amount of refrigerant gas needed in the chiller and allows for migration to natural refrigerants that have little or no global warming potential
- Components are recyclable and meet or exceed global environmental standards
- UV Light Biological Growth Inhibitor System eliminates the need for algaecides
- Patent-pending self-diagnostic system compares the chiller's functionality to its operating state the day it was built to minimize operating downtime and unnecessary service calls
- Front-fill reservoir access
- Externally accessible adjustable pressure regulator valve
- Conectivity: RS-232, USB Serial Port Emulation, USB TMC, Dry Contact On/Off/Status
- Dimensions (mm): 840x560x840
Stable and reliable cooling for many common heat removal applications, including laser etching, AA furnaces, ICP, rotary evaporators, vacuum systems, reaction vessels, plasma etching, and condenser cooling.
Features:
- Choice of Turbine or Positive Displacement pump
- Intuitive touch screen display with a choice of 5 operating languages: English, Spanish, French, German and Mandarin
- Home screen simultaneously displays set temperature, actual temperature, fluid pressure, fluid level, air filter status and timer
- Self-changing air filter system eliminates preventative maintenance by automatically changing the filter media at user-definable intervals.
- Continuous fluid level monitoring protects pump and prevents freezing
- Patented Whispercool® noise reduction system reduces operating noise levels to the almost imperceptible levels while maintaining optimal cooling performance
- Reduced global warming potential through a highly optimized refrigeration system design that greatly reduces the amount of refrigerant gas needed in the chiller and allows for migration to natural refrigerants that have little or no global warming potential
- Components are recyclable and meet or exceed global environmental standards
- UV Light Biological Growth Inhibitor System eliminates the need for algaecides
- Patent-pending self-diagnostic system compares the chiller's functionality to its operating state the day it was built to minimize operating downtime and unnecessary service calls
- Front-fill reservoir access
- Externally accessible adjustable pressure regulator valve
- Conectivity: RS-232, USB Serial Port Emulation, USB TMC, Dry Contact On/Off/Status
- Dimensions (mm): 840x560x840
Turbine pump
CA02T Temperature range (ºC)
-10 to 70 Temperature stability (ºC)
±0.1 Cooling power 0ºC (kW)
0.3 Cooling power 10ºC (kW)
0.5 Cooling power 20ºC (kW)
0.7 Pump pressure (Psi/kPa)
20-75 / 138- 621 Maximum flow rate (l/min)
8.3 Power supply
240V / 50Hz 8.9A Weight (Kg)
76.7 Pack (u.)
1
CA03T Temperature range (ºC)
-10 to 70 Temperature stability (ºC)
±0.1 Cooling power 0ºC (kW)
0.49 Cooling power 10ºC (kW)
0.94 Cooling power 20ºC (kW)
1.28 Pump pressure (Psi/kPa)
20-75 / 138- 621 Maximum flow rate (l/min)
8.3 Power supply
240V / 50Hz 9.0A Weight (Kg)
76.7 Pack (u.)
1
CA05T Temperature range (ºC)
-10 to 70 Temperature stability (ºC)
±0.1 Cooling power 0ºC (kW)
0.77 Cooling power 10ºC (kW)
1.29 Cooling power 20ºC (kW)
1.84 Pump pressure (Psi/kPa)
20-75 / 138- 621 Maximum flow rate (l/min)
8.3 Power supply
240V / 50Hz 9.2A Weight (Kg)
78.1 Pack (u.)
1
CA10T Temperature range (ºC)
-10 to 70 Temperature stability (ºC)
±0.1 Cooling power 0ºC (kW)
1.0 Cooling power 10ºC (kW)
1.9 Cooling power 20ºC (kW)
2.65 Pump pressure (Psi/kPa)
20-75 / 138- 621 Maximum flow rate (l/min)
11 Power supply
240V / 50Hz 13.5A Weight (Kg)
80.3 Pack (u.)
1
Positive displacement pump
CA02P Temperature range (ºC)
-10 to 70 Temperature stability (ºC)
±0.1 Cooling power 0ºC (kW)
0.3 Cooling power 10ºC (kW)
0.5 Cooling power 20ºC (kW)
0.7 Pump pressure (Psi/kPa)
20-83 / 138-572 Maximum flow rate (l/min)
7.6 Power supply
240V / 50Hz 8,2A Weight (Kg)
76.7 Pack (u.)
1
CA03P Temperature range (ºC)
-10 to 70 Temperature stability (ºC)
±0.1 Cooling power 0ºC (kW)
0.49 Cooling power 10ºC (kW)
0.94 Cooling power 20ºC (kW)
1.28 Pump pressure (Psi/kPa)
20-83 / 138-572 Maximum flow rate (l/min)
7.6 Power supply
240V / 50Hz 8,3A Weight (Kg)
76.7 Pack (u.)
1
CA05P Temperature range (ºC)
-10 to 70 Temperature stability (ºC)
±0.1 Cooling power 0ºC (kW)
0.77 Cooling power 10ºC (kW)
1.29 Cooling power 20ºC (kW)
1.84 Pump pressure (Psi/kPa)
20-83 / 138-572 Maximum flow rate (l/min)
7.6 Power supply
240V / 50Hz 8,5A Weight (Kg)
78.1 Pack (u.)
1
CA10P Temperature range (ºC)
-10 to 70 Temperature stability (ºC)
±0.1 Cooling power 0ºC (kW)
1.0 Cooling power 10ºC (kW)
1.9 Cooling power 20ºC (kW)
2.65 Pump pressure (Psi/kPa)
20-83 / 138-572 Maximum flow rate (l/min)
11 Power supply
240V / 50Hz 12,0A Weight (Kg)
80.3 Pack (u.)
1
