Cooling circulators serie CC 400/500/800/900

Cooling bath circulators with insulated baths made from stainless steel and Active Cooling Control for active cooling capacity control at the peak temperature and an automatic cooling capacity adaptation for energy-saving operation and reduced waste heat. The cover plate is temperature-controlled to prevent the formation of ice. A powerful pressure/suction pump ensures good circulation and heat transfer to the application.

Pump connection: male M16x1

Cooling bath circulators with insulated baths made from stainless steel and Active Cooling Control for active cooling capacity control at the peak temperature and an automatic cooling capacity adaptation for energy-saving operation and reduced waste heat. The cover plate is temperature-controlled to prevent the formation of ice. A powerful pressure/suction pump ensures good circulation and heat transfer to the application.

Pump connection: male M16x1

Series CC-400: w: water cooled; wl:Air/water cooled
* with displacement insert

Type
CC-405 Temperature range (ºC)
-40 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
1,5 Cooling power (kW)
0,7(100ºC), 0,7(20ºC), 0,7(0ºC), 0,45(-20ºC), 0,18 (-30ºC), 0,03(-40ºC) Flow (l/min) - Pressure (bar)
25-0,7 Volume (l)
5 Bath depth (mm)
150 Dimensions WxHxD (mm)
370x679x460 Pack (u.)
1
Reference
2017000101
Packaging
x u.
Price
Buy
Disponibility
Type
CC-405w Temperature range (ºC)
-40 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
1,5 Cooling power (kW)
0,7(100ºC), 0,7(20ºC), 0,7(0ºC), 0,45(-20ºC), 0,18 (-30ºC), 0,03(-40ºC) Flow (l/min) - Pressure (bar)
25-0,7 Volume (l)
5 Bath depth (mm)
150 Dimensions WxHxD (mm)
370x679x460 Pack (u.)
1
Reference
2017000201
Packaging
x u.
Price
Buy
Disponibility

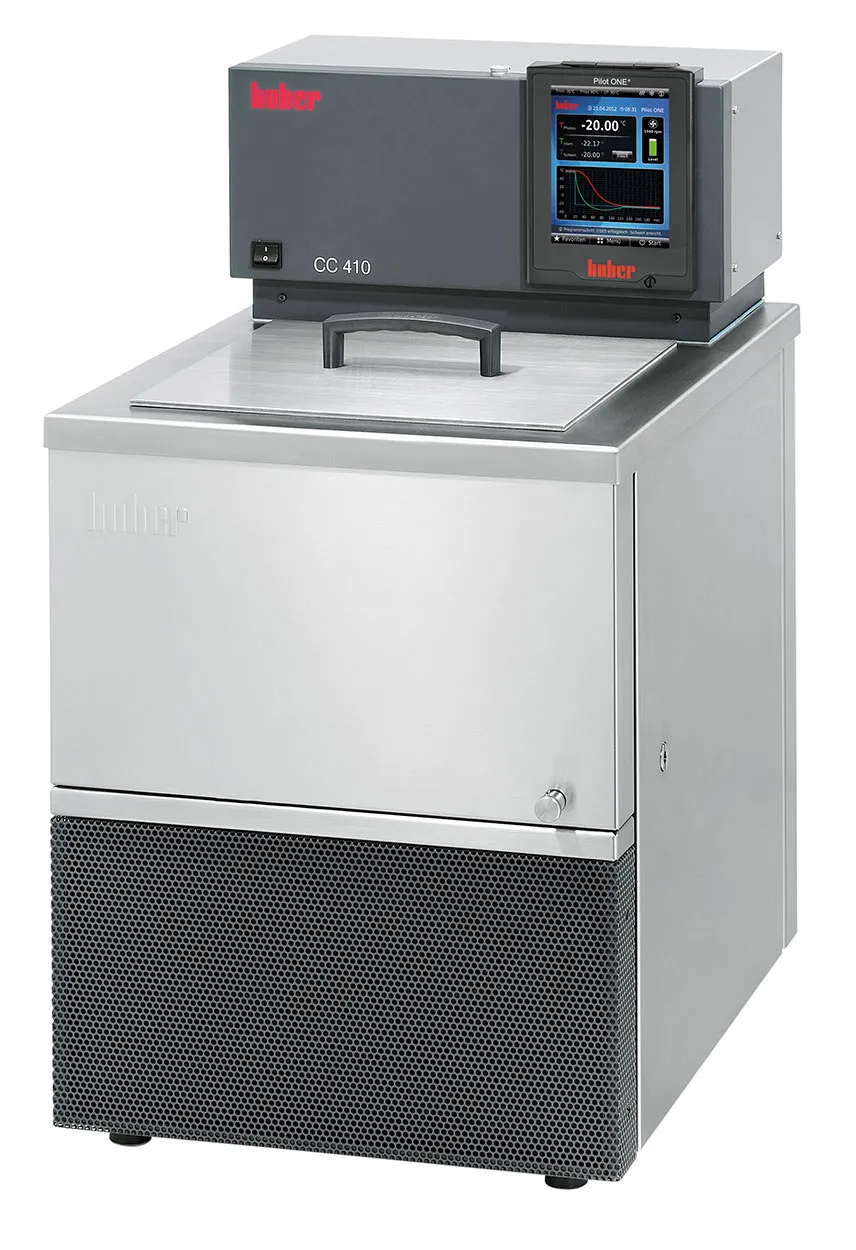

Cooling circulator serie CC. HUBER. Type: CC-410. Temp. range (ºC): -45 to 200. T. Stability (ºC): ±0,02. Heating power (kW): 3. Cooling power (kW): 0,8(100ºC), 0,8(20ºC),  0,8(0ºC), 0,5(-20ºC),  0,15 (-30ºC), 0,1(-40ºC). Pressure (l/min) - bar: 25-0,7. Vol. (l): 22/8,5*. Bath depth (mm): 200. Dim. HxWxD (mm): 420x719x565
Type
CC-410 Temperature range (ºC)
-45 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
0,8(100ºC), 0,8(20ºC), 0,8(0ºC), 0,5(-20ºC), 0,15 (-30ºC), 0,1(-40ºC) Flow (l/min) - Pressure (bar)
25-0,7 Volume (l)
22/8,5* Bath depth (mm)
200 Dimensions WxHxD (mm)
420x719x565 Pack (u.)
1
Reference
2019000401
Packaging
x u.
Price
Buy
Disponibility
Type
CC-410wl Temperature range (ºC)
-45 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
0,8(100ºC), 0,8(20ºC), 0,8(0ºC), 0,5(-20ºC), 0,15 (-30ºC), 0,1(-40ºC) Flow (l/min) - Pressure (bar)
25-0,7 Volume (l)
22/8,5* Bath depth (mm)
200 Dimensions WxHxD (mm)
420x719x565 Pack (u.)
1
Reference
2019000101
Packaging
x u.
Price
Buy
Disponibility
Type
CC-415 Temperature range (ºC)
-40 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
1,5 Cooling power (kW)
1,2(100ºC), 1,2(20ºC), 1,0(0ºC), 0,6(-20ºC), 0,2 (-30ºC), 0,05(-40ºC) Flow (l/min) - Pressure (bar)
25-0,7 Volume (l)
5 Bath depth (mm)
150 Dimensions WxHxD (mm)
410x764x480 Pack (u.)
1
Reference
2018000101
Packaging
x u.
Price
Buy
Disponibility
Type
CC-415wl Temperature range (ºC)
-40 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
1,5 Cooling power (kW)
1,2(100ºC), 1,2(20ºC), 1,0(0ºC), 0,6(-20ºC), 0,2 (-30ºC), 0,05(-40ºC) Flow (l/min) - Pressure (bar)
25-0,7 Volume (l)
5 Bath depth (mm)
150 Dimensions WxHxD (mm)
410x764x480 Pack (u.)
1
Reference
2018000201
Packaging
x u.
Price
Buy
Disponibility

Series CC-500: w: water cooled; wl:Air/water cooled
* with displacement insert
** as standard with natural refrigerant

Type
CC-505 Temperature range (ºC)
-50 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
1,5 Cooling power (kW)
1,2(100ºC), 1,2(20ºC), 1,0(0ºC), 0,6(-20ºC), 0,15(-40ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
5 Bath depth (mm)
150 Dimensions WxHxD (mm)
410x480x764 Pack (u.)
1
Reference
2018000301
Packaging
x u.
Price
Buy
Disponibility
Type
CC-505wl Temperature range (ºC)
-50 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
1,5 Cooling power (kW)
1,2(100ºC), 1,2(20ºC), 1,0(0ºC), 0,6(-20ºC), 0,15(-40ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
5 Bath depth (mm)
150 Dimensions WxHxD (mm)
410x480x764 Pack (u.)
1
Reference
2018000401
Packaging
x u.
Price
Buy
Disponibility
Type
CC-508** Temperature range (ºC)
-55 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
1,5(100ºC), 1,5(20ºC), 1,5(0ºC), 1,0(-20ºC), 0,3(-40ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
5 Bath depth (mm)
160 Dimensions WxHxD (mm)
410x480x764 Pack (u.)
1
Reference
2018002301
Packaging
x u.
Price
Buy
Disponibility
Type
CC-508w** Temperature range (ºC)
-55 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
1,5(100ºC), 1,5(20ºC), 1,5(0ºC), 1,0(-20ºC), 0,3(-40ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
5 Bath depth (mm)
160 Dimensions WxHxD (mm)
410x480x764 Pack (u.)
1
Reference
2018002601
Packaging
x u.
Price
Buy
Disponibility
Thermostatic cold and recirculation baths, Mod: CC-510 with controller 'Pilot ONE' Refrigerated Heating Circulator Bath Temperature range: -50 ... 200 ° C Cooling capacity (20 ° C): 2.1 kW Cooling capacity (0 ° C): 2.1 kW Cooling capacity (-40 ° C): 0.4 kW Heating capacity: 3 kW Maximum pressure pump: 25 l / min / 0.7 bar Suction pump max. : 18.5 l / min / 0.4 bar Pump connection: M16x1 male Power supply: 400V 3 ~ N 50Hz
Type
CC-510 Temperature range (ºC)
-50 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
2,1(100ºC), 2,1(20ºC), 2,1(0ºC), 1,0(-20ºC), 0,4(-40ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
26/15* Bath depth (mm)
200 Dimensions WxHxD (mm)
605x706x1136 Pack (u.)
1
Reference
2020001001
Packaging
x u.
Price
Buy
Disponibility
Type
CC-510w Temperature range (ºC)
-50 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
2,4(100ºC), 2,4(20ºC), 2,4(0ºC), 1,0(-20ºC), 0,4(-40ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
18/11* Bath depth (mm)
200 Dimensions WxHxD (mm)
455x515x1014 Pack (u.)
1
Reference
2020000201
Packaging
x u.
Price
Buy
Disponibility
Type
CC-515 Temperature range (ºC)
-55 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
3,3(100ºC), 3,3(20ºC), 3,3(0ºC), 1,6(-20ºC), 0,6(-40ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
26/15* Bath depth (mm)
200 Dimensions WxHxD (mm)
605x706x1136 Pack (u.)
1
Reference
2021000101
Packaging
x u.
Price
Buy
Disponibility
Type
CC-515w Temperature range (ºC)
-55 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
3,3(100ºC), 3,3(20ºC), 3,3(0ºC), 1,6(-20ºC), 0,6(-40ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
18/11* Bath depth (mm)
200 Dimensions WxHxD (mm)
455x515x1014 Pack (u.)
1
Reference
2020000301
Packaging
x u.
Price
Buy
Disponibility
Type
CC-520w Temperature range (ºC)
-55 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
5,0(100ºC), 5,0(20ºC), 5,0(0ºC), 3,0(-20ºC), 1,5(-40ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
17/10* Bath depth (mm)
200 Dimensions WxHxD (mm)
539x629x1102 Pack (u.)
1
Reference
2022000101
Packaging
x u.
Price
Buy
Disponibility
Type
CC-525w Temperature range (ºC)
-55 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
7,0(100ºC), 7,0(20ºC), 5,0(0ºC), 3,0(-20ºC), 1,5(-40ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
17/10* Bath depth (mm)
200 Dimensions WxHxD (mm)
539x629x1102 Pack (u.)
1
Reference
2023000101
Packaging
x u.
Price
Buy
Disponibility

Series CC-800/900: w: water cooled
* with displacement insert

Type
CC-805 Temperature range (ºC)
-80 to 100 Temperature stability (ºC)
±0,02 Heating power (kW)
1,5 Cooling power (kW)
0,5(100ºC), 0,5(20ºC), 0,5(0ºC), 0,4(-20ºC), 0,3(-40ºC), 0,3(-60ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
5 Bath depth (mm)
150 Dimensions WxHxD (mm)
410x480x764 Pack (u.)
1
Reference
2024000101
Packaging
x u.
Price
Buy
Disponibility
Type
CC-820 Temperature range (ºC)
-80 to 100 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
1,2(100ºC), 1,2(20ºC), 1,2(0ºC), 1,1(-20ºC), 0,9(-40ºC), 0,36(-60ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
17/10* Bath depth (mm)
200 Dimensions WxHxD (mm)
539x629x1102 Pack (u.)
1
Reference
2025000101
Packaging
x u.
Price
Buy
Disponibility
Type
CC-820w Temperature range (ºC)
-80 to 100 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
1,2(100ºC), 1,2(20ºC), 1,2(0ºC), 1,1(-20ºC), 0,9(-40ºC), 0,36(-60ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
17/10* Bath depth (mm)
200 Dimensions WxHxD (mm)
539x629x1102 Pack (u.)
1
Reference
2025000201
Packaging
x u.
Price
Buy
Disponibility
Cooling circulators serie CC. HUBER. Type: CC-902. Temp. range (ºC): -90 to 200. T. Stability (ºC): ±0,02. Heating power (kW): 1,5. Cool. power (kW): 1,2(100ºC), 1,2(20ºC), 1,2(0ºC), 1,1(-20ºC),  0,9(-40ºC), 0,36(-60ºC). Pressure (l/min) - bar: 25-18,5. Vol. (l): 5. Bath depth (mm): 200. Dim. WxHxD (mm): 550x600x911
Type
CC-902 Temperature range (ºC)
-90 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
1,5 Cooling power (kW)
1,2(100ºC), 1,2(20ºC), 1,2(0ºC), 1,1(-20ºC), 0,9(-40ºC), 0,36(-60ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
5 Bath depth (mm)
200 Dimensions WxHxD (mm)
550x600x911 Pack (u.)
1
Reference
2026000501
Packaging
x u.
Price
Buy
Disponibility
Type
CC-905 Temperature range (ºC)
-90 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
2,0(100ºC), 2,0(20ºC), 2,0(0ºC), 1,9(-20ºC), 1,7(-40ºC), 1,0(-60ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
26/15* Bath depth (mm)
200 Dimensions WxHxD (mm)
605x706x1136 Pack (u.)
1
Reference
2027000101
Packaging
x u.
Price
Buy
Disponibility
Refrigeration Bath Circulator CC-905W
Type
CC-905w Temperature range (ºC)
-90 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
2,0(100ºC), 2,0(20ºC), 2,0(0ºC), 1,9(-20ºC), 1,7(-40ºC), 1,0(-60ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
26/15* Bath depth (mm)
200 Dimensions WxHxD (mm)
605x706x1136 Pack (u.)
1
Reference
2027000201
Packaging
x u.
Price
Buy
Disponibility
Type
CC-906w Temperature range (ºC)
-90 to 200 Temperature stability (ºC)
±0,02 Heating power (kW)
3 Cooling power (kW)
3,0(100ºC), 3,0(20ºC), 3,0(0ºC), 2,8(-20ºC), 2,4(-40ºC), 1,6(-60ºC) Flow (l/min) - Pressure (bar)
25-18,5 Volume (l)
30/19* Bath depth (mm)
200 Dimensions WxHxD (mm)
605x706x1136 Pack (u.)
1
Reference
2036000101
Packaging
x u.
Price
Buy
Disponibility
