Baths for viscometers
The new multi-touch controller Pilot ONE offers a brilliant 5.7' touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
- Pilot ONE controller with Plug & Play technology
- Precise temperature control
- 5.7' touchscreen and comfortable menu navigation
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- Powerful pressure/suction pump
- Pump connection M16x1 AG male
- Programmer with calendar and clock functions
- 5-point calibration
- Pt100 sensor connection
- Power supply 230V - 50/60Hz

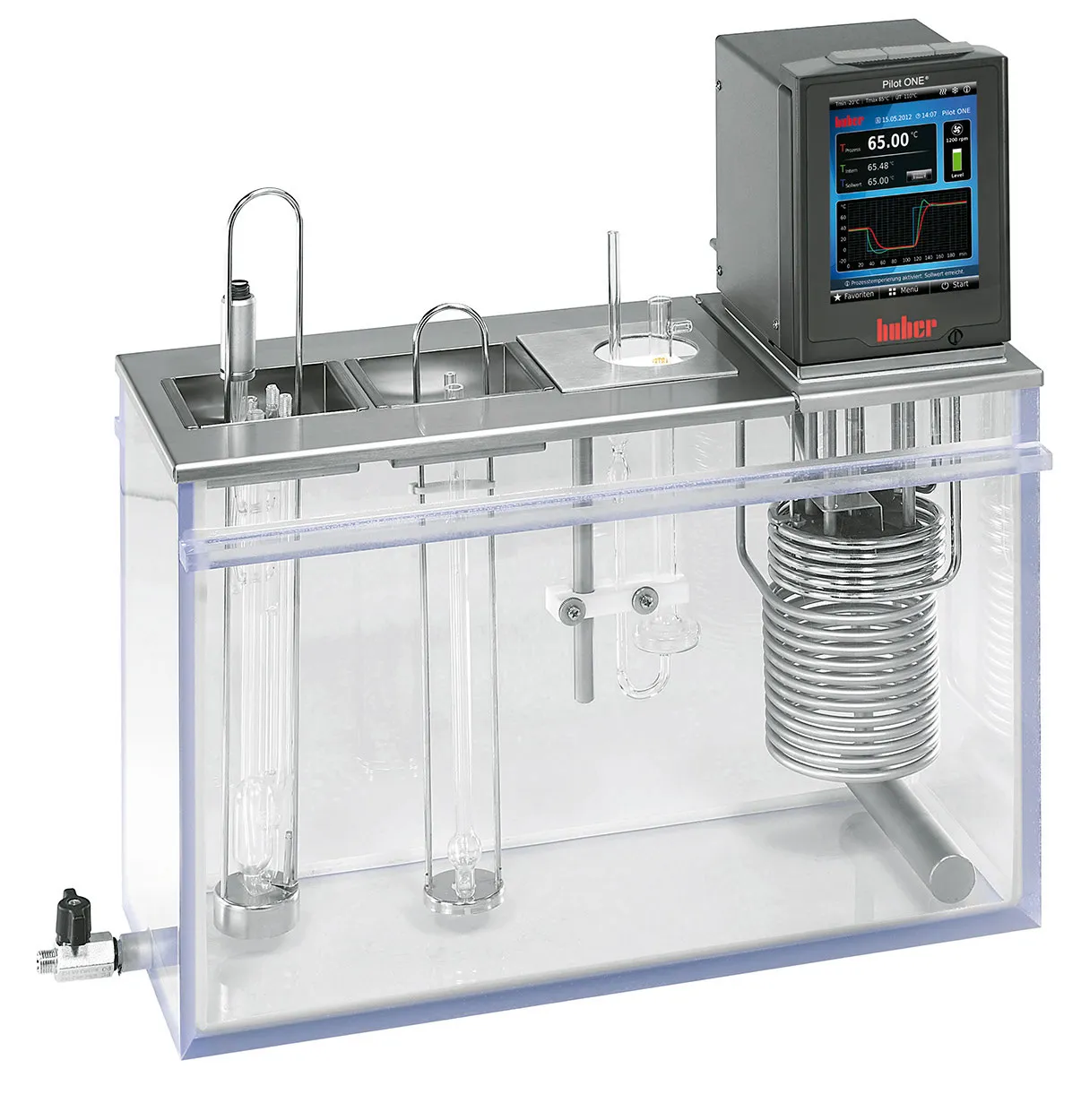

Visco thermostats are suitable for measurement tasks using capillary viscometers or for use of densitometers. The devices offer the highest temperature stability for optimal temperature distribution in the thermostat bath. For operation below or near the ambient temperature there is a cooling coil integrated for a cooling water connection. Various function packages for the Pilot ONE can be activated using E-grade as required.
The new multi-touch controller Pilot ONE offers a brilliant 5.7' touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
- Pilot ONE controller with Plug & Play technology
- Precise temperature control
- 5.7' touchscreen and comfortable menu navigation
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)
- Powerful pressure/suction pump
- Pump connection M16x1 AG male
- Programmer with calendar and clock functions
- 5-point calibration
- Pt100 sensor connection
- Power supply 230V - 50/60Hz
CC-130A Visco 3 No positions
3 Temperature range (ºC)
(15) 28 -100 Temperature stability (ºC)
±0,01 Heating power (kW)
2 Pressure (l/min) - bar
27 - 0,7 Volume (l)
30 Bath opening WxD (mm)
90x90 Depth (mm)
310 Pack (u.)
1
CC-130A Visco 5 No positions
5 Temperature range (ºC)
(15) 28 -100 Temperature stability (ºC)
±0,01 Heating power (kW)
2 Pressure (l/min) - bar
27 - 0,7 Volume (l)
30 Bath opening WxD (mm)
Ø 51 Depth (mm)
310 Pack (u.)
1
Accessories
Holder for Ubbelohde-Viscosimeter for Visco 3 Pack (u.)
1
