Bath OvanTherm MultiMix

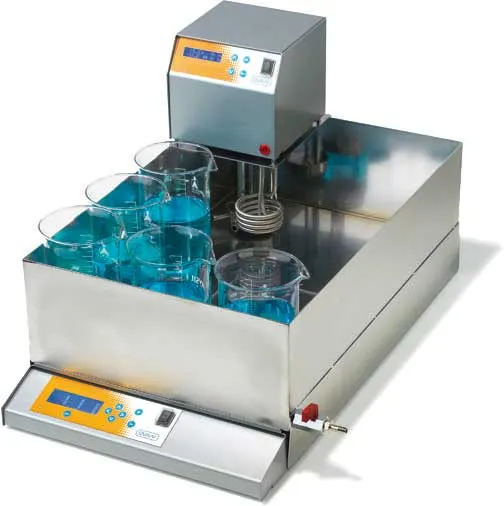

Immersion Thermostat OvanTherm H TH100, multistirrer MultiMix D MM50 or MM90 and stainless steel tank of 20L.
- Temperature controlled by microprocessor,by means of an integrated Pt100 sensor, with 'ARA V2' algorithm of temperature regulation with 'fuzzy logic' control.
- Temperature adjustable at the immersion thermostat, and stirring speed adjustable for each place individually.
- Pump for homogeneization (6 Lmin) (max. pressure 200 mbar).
- Digital Display LCD backlighted showing the selected and actual temperature and speed.
- Membrane push-button control.
- Double safety thermostat: with reset for liquid level, over temperature or lack of water of the heating element.
- Safety automatic disconnection with acustic alarm that prevents overheating from the programmed temperature (+2.5ºC). Connects again when the temperature is below the limit.
- Indication on the display of high temperature on the tank, that provides protection against burn from 45ºC.
- Memory of the last settings.
- Automatic restart after unexpected shut down keeping the same parameters as before the incident. An incident sign appears on the display.
- Mains switch ON/OFF protected against splashes.

Technical data:
- Place diameter (mm): 110
- Heating power (W): 1600
- Cooling power (W): 300 (BHM-C-E5 and BHM-C-9E models)
- Useful dimensions (mm): 270x380x160

The equipment is delivered with 5 or 9 magnetic bars of 8x30 mm.

Immersion Thermostat OvanTherm H TH100, multistirrer MultiMix D MM50 or MM90 and stainless steel tank of 20L.
- Temperature controlled by microprocessor,by means of an integrated Pt100 sensor, with 'ARA V2' algorithm of temperature regulation with 'fuzzy logic' control.
- Temperature adjustable at the immersion thermostat, and stirring speed adjustable for each place individually.
- Pump for homogeneization (6 Lmin) (max. pressure 200 mbar).
- Digital Display LCD backlighted showing the selected and actual temperature and speed.
- Membrane push-button control.
- Double safety thermostat: with reset for liquid level, over temperature or lack of water of the heating element.
- Safety automatic disconnection with acustic alarm that prevents overheating from the programmed temperature (+2.5ºC). Connects again when the temperature is below the limit.
- Indication on the display of high temperature on the tank, that provides protection against burn from 45ºC.
- Memory of the last settings.
- Automatic restart after unexpected shut down keeping the same parameters as before the incident. An incident sign appears on the display.
- Mains switch ON/OFF protected against splashes.

Technical data:
- Place diameter (mm): 110
- Heating power (W): 1600
- Cooling power (W): 300 (BHM-C-E5 and BHM-C-9E models)
- Useful dimensions (mm): 270x380x160

The equipment is delivered with 5 or 9 magnetic bars of 8x30 mm.

Ver más
Model
BHM5E
Maximum volume thermostat (l)
20
Temperature range (ºC)
5 above ambient-100
Resolution (°C)
0,1
Nº places of stirring
5
Maximum stirring volume (l)
2
Speed (rpm)
200-1200
Resolution (rpm)
100
Pack (u.)
1
Reference
1000000130
Packaging
x u.
Price
Buy
Disponibility
Model
BHM-C-E5
Maximum volume thermostat (l)
20
Temperature range (ºC)
0-100
Resolution (°C)
0,1
Nº places of stirring
5
Maximum stirring volume (l)
2
Speed (rpm)
200-1200
Resolution (rpm)
100
Pack (u.)
1
Reference
100001130C
Packaging
x u.
Price
Buy
Disponibility
Model
BHM9E
Maximum volume thermostat (l)
20
Temperature range (ºC)
5 above ambient-100
Resolution (°C)
0,1
Nº places of stirring
9
Maximum stirring volume (l)
2
Speed (rpm)
200-1200
Resolution (rpm)
100
Pack (u.)
1
Reference
1000001128
Packaging
x u.
Price
Buy
Disponibility
Model
BHM-C-9E
Maximum volume thermostat (l)
20
Temperature range (ºC)
0-100
Resolution (°C)
0,1
Nº places of stirring
9
Maximum stirring volume (l)
2
Speed (rpm)
200-1200
Resolution (rpm)
100
Pack (u.)
1
Reference
100001128C
Packaging
x u.
Price
Buy
Disponibility

Accessories
* Consult for other sizes

Description
Set of 18 assorted magnets
Pack (u.)
1
Reference
2000000026
Packaging
x u.
Price
Buy
Disponibility
Description
Stirring magnet 8x30 mm *
Pack (u.)
5
Reference
2000000008
Packaging
x 5u.
Price
Buy
Disponibility
