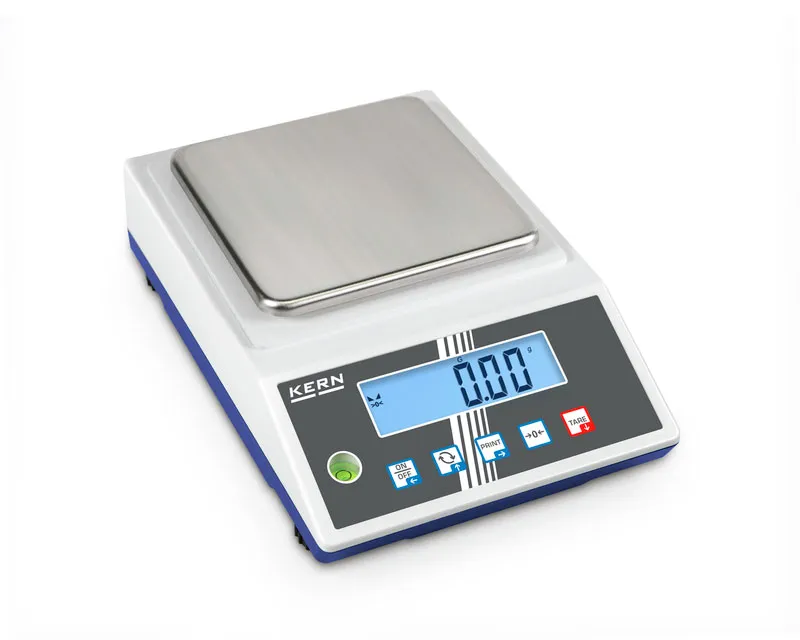

Precision balances PCB
Features:
- PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
- Industry 4.0: The integrated KERN Universal Port (KUP) allows the connection of external KUP interface adapters such as RS-232, USB, Bluetooth, WLAN, Analogue, Ethernet etc. The outstanding advantage here is that the KUP interface adapters are simply plugged in, i.e. retrofitting interfaces is conveniently possible without opening the scale housing or complicated installation. The interface adapters enable convenient transmission of weighing data to networks, PCs, smartphones, tablets, laptops, printers etc. In addition, control commands and data inputs can also be sent to the scale via the connected devices. Tip: with the KERN KUP-13 extension box, up to three KUP interface adapters can be operated in parallel on the scale
- KERN Communication Protocol (KCP): The KCP permits searching and remote control of the balance using external control devices or computers
- Freely programmable weighing unit, e.g. display directly in special units such as length of thread g/m, paper weight g/m2, or similar
- Ring-shaped draft shield standard, only for models with weighing plate size 81mm , weighing space ØxH 90x40mm
Technical data:
- Backlit LCD display, digit height 15mm
- Dimensions of weighing plate (stainless steel*): 81mm, 105mm, 130x130mm, 150x170mm
- Optional battery operation, 9V, not included. AUTO-OFF function to preserve the battery, can be switched off
- Overall dimensions (without draft shield) WxDxH: 163x245x79mm
- Net weight approx. 1,1kg
- Permissible ambient temperature 5°C / 35°C
Available accessories like printer or working cover or hook for underfloor weighing are detailed below.
The balances are supplied without a certificate. Optionally, you can request calibration certificate DAkkS. It must be requested in the same order of the scale, it will not be supplied later.
The standard in the laboratory.
Features:
- PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
- Industry 4.0: The integrated KERN Universal Port (KUP) allows the connection of external KUP interface adapters such as RS-232, USB, Bluetooth, WLAN, Analogue, Ethernet etc. The outstanding advantage here is that the KUP interface adapters are simply plugged in, i.e. retrofitting interfaces is conveniently possible without opening the scale housing or complicated installation. The interface adapters enable convenient transmission of weighing data to networks, PCs, smartphones, tablets, laptops, printers etc. In addition, control commands and data inputs can also be sent to the scale via the connected devices. Tip: with the KERN KUP-13 extension box, up to three KUP interface adapters can be operated in parallel on the scale
- KERN Communication Protocol (KCP): The KCP permits searching and remote control of the balance using external control devices or computers
- Freely programmable weighing unit, e.g. display directly in special units such as length of thread g/m, paper weight g/m2, or similar
- Ring-shaped draft shield standard, only for models with weighing plate size 81mm , weighing space ØxH 90x40mm
Technical data:
- Backlit LCD display, digit height 15mm
- Dimensions of weighing plate (stainless steel*): 81mm, 105mm, 130x130mm, 150x170mm
- Optional battery operation, 9V, not included. AUTO-OFF function to preserve the battery, can be switched off
- Overall dimensions (without draft shield) WxDxH: 163x245x79mm
- Net weight approx. 1,1kg
- Permissible ambient temperature 5°C / 35°C
Available accessories like printer or working cover or hook for underfloor weighing are detailed below.
The balances are supplied without a certificate. Optionally, you can request calibration certificate DAkkS. It must be requested in the same order of the scale, it will not be supplied later.
PCB 200-3 Readability (g)
0.001 Capacity (g)
200 Reproducibility (g)
0.001 Linearity (g)
± 0.005 Plate dimensions (mm)
82 Calibration
External Minimum piece weight (g/piece)
0.002 DAkkS certificate
315-963127 Pack (u.)
1
PCB 300-3 Readability (g)
0.001 Capacity (g)
360 Reproducibility (g)
0.001 Linearity (g)
± 0.005 Plate dimensions (mm)
82 Calibration
External Minimum piece weight (g/piece)
0.002 DAkkS certificate
315-963127 Pack (u.)
1
PCB 300-2 Readability (g)
0.01 Capacity (g)
300 Reproducibility (g)
0.01 Linearity (g)
± 0.02 Plate dimensions (mm)
105 Calibration
External Minimum piece weight (g/piece)
0.002 DAkkS certificate
315-963127 Pack (u.)
1
PCB 1000-2 Readability (g)
0.01 Capacity (g)
1000 Reproducibility (g)
0.01 Linearity (g)
± 0.03 Plate dimensions (mm)
130x130 Calibration
External Minimum piece weight (g/piece)
0.02 DAkkS certificate
315-963127 Pack (u.)
1
PCB 3000-2 Readability (g)
0.01 Capacity (g)
3600 Reproducibility (g)
0.01 Linearity (g)
± 0.05 Plate dimensions (mm)
130x130 Calibration
External Minimum piece weight (g/piece)
0.02 DAkkS certificate
315-963127 Pack (u.)
1
PCB 2000-1 Readability (g)
0.1 Capacity (g)
2000 Reproducibility (g)
0.1 Linearity (g)
± 0.2 Plate dimensions (mm)
130x130 Calibration
External Minimum piece weight (g/piece)
0.2 DAkkS certificate
315-963127 Pack (u.)
1
PCB 6000-1 Readability (g)
0.1 Capacity (g)
6000 Reproducibility (g)
0.1 Linearity (g)
± 0.3 Plate dimensions (mm)
150x170 Calibration
External Minimum piece weight (g/piece)
0.2 DAkkS certificate
315-963128 Pack (u.)
1
PCB 10000-1 Readability (g)
0.1 Capacity (g)
10000 Reproducibility (g)
0.1 Linearity (g)
± 0.3 Plate dimensions (mm)
150x170 Calibration
External Minimum piece weight (g/piece)
0.2 DAkkS certificate
315-963128 Pack (u.)
1
PCB 6000-0 Readability (g)
1 Capacity (g)
6000 Reproducibility (g)
1 Linearity (g)
± 2 Plate dimensions (mm)
150x170 Calibration
External Minimum piece weight (g/piece)
2 DAkkS certificate
315-963128 Pack (u.)
1
