Aspirators with trap flask
FTA-1 specifications:
- 1L trap flask for collection of aspirate from microtubes or microplates
- Tube holder accommodates two tubes to store tip or optional 8 channel adaptor
- Dim. WxHxD (mm): 160x340x210
- Weight (kg): 1.7

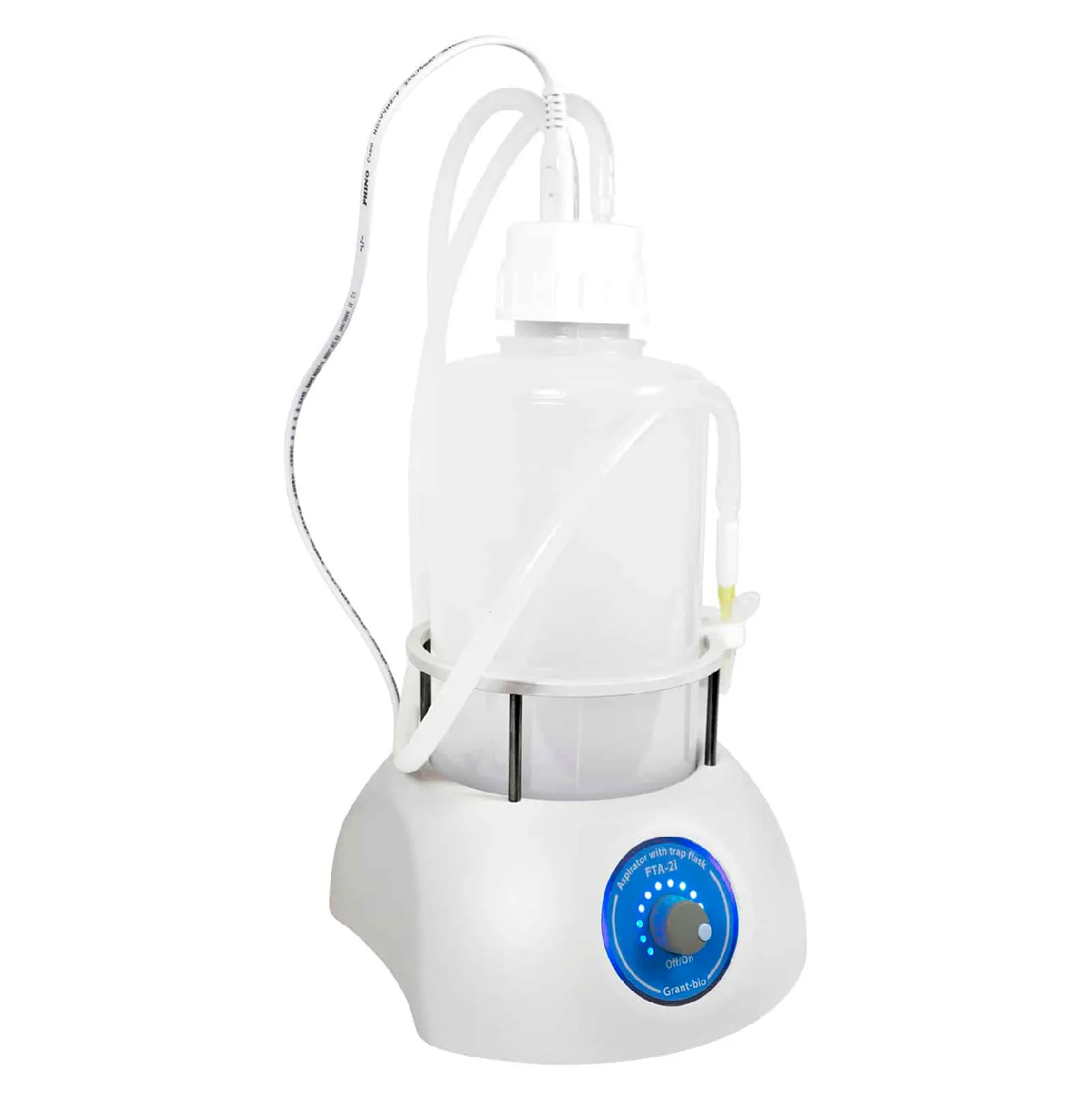

FTA-2i specifications:
- Liquid level sensor with automatic switch off and sounding alarm indication
-2L autoclavable polypropylene trap flask for collection of aspirate from reaction vessels or microplates
- Tube holder organiser conveniently located on the right hand side, accommodating two 1.5-2 ml tube slots
- Vacuum regulation control knob allows user to smoothy select a preferable aspiration speed
- Overflow protection: Motor stops, light and sound signal
- Dim. WxHxD (mm): 185x390x290
- Weight (kg): 1.85
The aspirators with trap flasks FTA-1 and FTA-2i are designed for routine aspiration of the supernatant alcohol/buffer from the walls of microtubes during DNA/RNA purification and other macromolecule reprecipitation techniques. Small, compact and easy to use. All in one system with integrated pump. Perfect for small volume aspiration. Fitted with hydrophobic microbiological filter that eliminates risk of contamination from the trap flask (efficiency up to 99.9%, holds particles bigger than 0.0027 micron). Built in micro-compressor creates negative pressure in the trap flask for removal of liquid from microtubes. Polyethylene tube connects the collecting tip to the trap flask.
FTA-1 specifications:
- 1L trap flask for collection of aspirate from microtubes or microplates
- Tube holder accommodates two tubes to store tip or optional 8 channel adaptor
- Dim. WxHxD (mm): 160x340x210
- Weight (kg): 1.7
FTA-2i specifications:
- Liquid level sensor with automatic switch off and sounding alarm indication
-2L autoclavable polypropylene trap flask for collection of aspirate from reaction vessels or microplates
- Tube holder organiser conveniently located on the right hand side, accommodating two 1.5-2 ml tube slots
- Vacuum regulation control knob allows user to smoothy select a preferable aspiration speed
- Overflow protection: Motor stops, light and sound signal
- Dim. WxHxD (mm): 185x390x290
- Weight (kg): 1.85
FTA-1 Trap flask volume (L)
1 Vacuum (mbar)
-500 Flow rate in aqueous sol. (ml/min)
72 with aspiration tip 666 without aspiration tip Aspiration speed (l/min)
- Power consumption (W)
3.6 Pack (u.)
1
FTA-2i Trap flask volume (L)
2 Vacuum (mbar)
-200 to -800 (adjustable) Flow rate in aqueous sol. (ml/min)
72 with aspiration tip 666 without aspiration tip Aspiration speed (l/min)
Up to 10 (air) Power consumption (W)
10.8 Pack (u.)
1
Accessories
8 channel adaptor kit. Includes tube adaptor, 8 channel aspiration tip and 8 channel tip holder For models
FTA-1 / FTA-2i Pack (u.)
1
8 channel aspiration tip For models
FTA-1 Pack (u.)
1
Replacement filter For models
FTA-1 Pack (u.)
1
Replacement blue cap for 1L bottle For models
FTA-1 Pack (u.)
1
Tubing set including all tubing with fittings except filter and aspiration tip For models
FTA-1 Pack (u.)
1
Hand operator set, includes handheld vaccum controller, 1-channel adapter (with ejector) for 200 µL tips, 1-channel adapter with 125 mm stainless steel pin, 1-channel adapter with 40 mm stainless steel pin, 8-channel adapter (with ejector) for 200 µL tips, 8-channel adapter with 35 mm stainless steel pin and SH-6 stand For models
FTA-2i Pack (u.)
1
